LFP Smart Battery Management System 75S 240V 400A for UPS EV ESS
2
MOQ
negotiable
Price
LFP Smart Battery Management System 75S 240V 400A for UPS EV ESS
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: china
Brand Name: GCE
Certification: CE UL
Model Number: RBMS07S20-400A240V
High Light:

Smart Battery Management System 75S

,

Smart Battery Management System 240V

Payment & Shipping Terms
Packaging Details: Corrugated Carton,830*560*280mm
Delivery Time: 8-15 days
Payment Terms: L/C, T/T
Supply Ability: 1000+pcs+1 month
Specifications
Color: Black And Silver
Battery Type: LFP NMC LTO
Apllication: Solar, Wind, UPS, EV Car,Home Appliances,Boats,Energy Storage System
OEM & ODM: Aceeptable
Communication: CAN, RS485
Warranty: 3 Yesrs
Product Description

  • GCE High Quality LFP Battery 75S 240V 400A Smart Battery management system for UPS EV ESS solar energy PV inverter bess

  •  240V400Amp

  • Communication protocol:

         Rs485, CAN, LAN

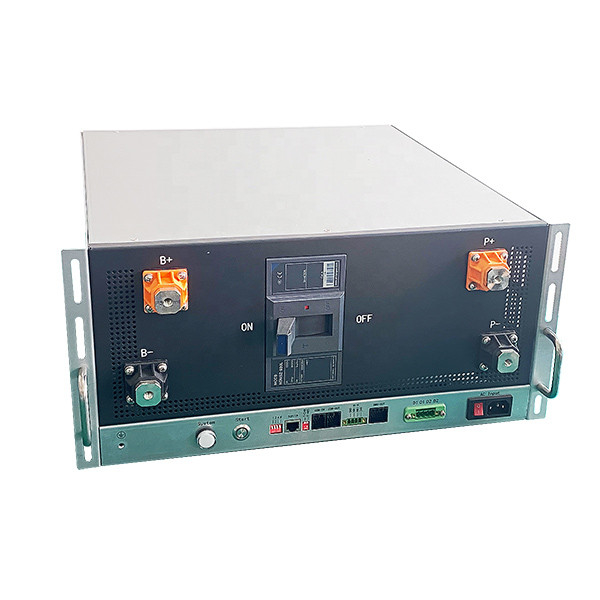

     * 5U standard 19inch case * Efficient, stable and reliable * size:W440*H223*D500mm

LFP Smart Battery Management System 75S 240V 400A for UPS EV ESS 0LFP Smart Battery Management System 75S 240V 400A for UPS EV ESS 1LFP Smart Battery Management System 75S 240V 400A for UPS EV ESS 2LFP Smart Battery Management System 75S 240V 400A for UPS EV ESS 3LFP Smart Battery Management System 75S 240V 400A for UPS EV ESS 4



--Specification--



Product Name

BMS

Model no.

RBMS07S2-3-400A240V

protecting method

MCCB+Contactor

Rated Current range

-400A~400A

Voltage Range

0V-240V

Current Sampling Accuracy

1.0%FSR

Communication interface with PCS

RS485/CAN

Communication interface with BMU

CAN

Communication interface with SBMS

RS485/CAN

Communication with monitoring software/EMS

Ethernet

Support IAP upgrade

Yes

Support HMI display and parameter

None (Touch Screen external Optional)

Insulation detection

Yes(Optional)

High voltage power module

Support DC start (optional)

Dry contact output (normally open)

Yes(Optional)

Maximum qty of BMUs

18

Power

24VDC(18~28V)

Power consumption

≤20W

Size(W*H*D)mm

5U (440*178*600)

Way out

Front

Tap center

None

Net weight

42kg



--Accessories--

LFP Smart Battery Management System 75S 240V 400A for UPS EV ESS 5

12S-24S BMU(Slave)



12S-24S BMU has 8pcs of tempreture sensors, Fan voltage 48V(17S-24S 12V), voltage detection range 0-5V,12V power supply,consumption less 20mA, CAN2.0 B communication

LFP Smart Battery Management System 75S 240V 400A for UPS EV ESS 6


Wire harness-Signal acquisition wire

18 Pin+20Pin wire, standard length is 600mm,900mm,1200mmtempreture sensor. wire: standard length is 600mm,900mm,1200mm
Fan wire: 600mm
LFP Smart Battery Management System 75S 240V 400A for UPS EV ESS 7

Wire harness-communication wire

Communication wire is connecting from master BMS to each BMU with cascade connection, the last port is for terminal resistance.wire: standard length is 180mm,300mm,600mm


BMS Gonfiguration:


75S 240V 400A High Voltage BMS * 1set
15S BMU * 5 sets
15S wire harness *5 sets
(15S48V battery module, 5 modules in series for 75S 240V 400A system)

LFP Smart Battery Management System 75S 240V 400A for UPS EV ESS 8
