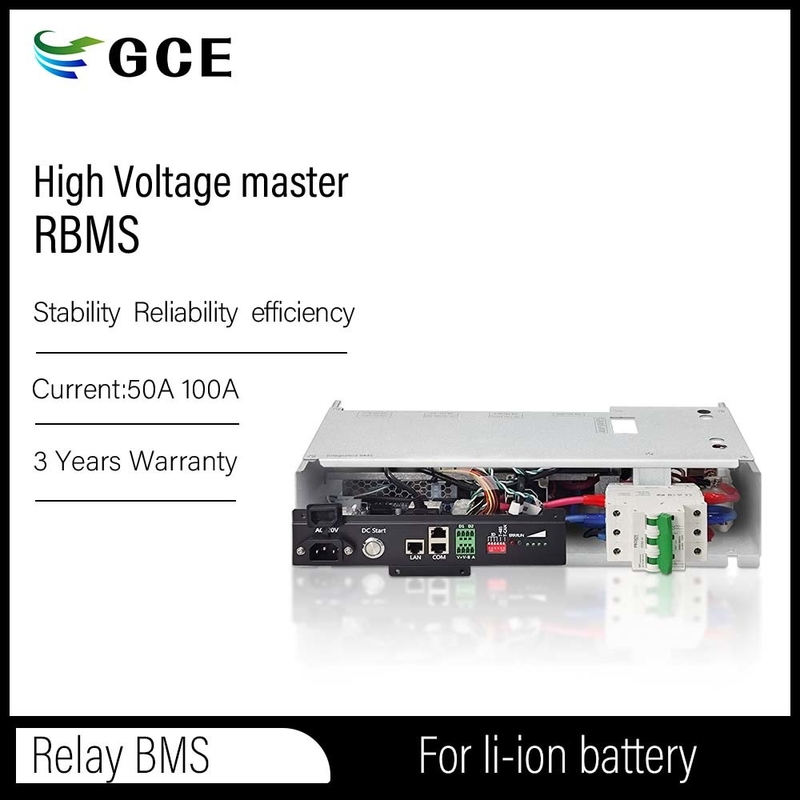

iron Ev Power Bms Battery Management System For Electric Vehicles 60S 192V

Product Details

Place of Origin: china

Brand Name: GCE

Certification: CE UL

Model Number: RBMS07S60S100A

Payment & Shipping Terms

Minimum Order Quantity: 2

Price: Negotiable

Packaging Details: Corrugated Carton,510*310*210mm

Delivery Time: 8-15 days

Payment Terms: L/C, T/T

Supply Ability: 1000+pcs+1 month

Get Best Price
Highlight:

Iron Ev Power Bms

Material:
Iron
Color:
Silver
Number Of Battery Strings:
60S(4 X 15 S)
Design:
Slave And Master BMS All In One
Life Span:
Long Life Cycle, >3000 Times At 80% DOD.
Communication:
CAN, RS485
Battery Type:
LFP, NCM, LTO, Lithium Iron Phosphate Battery
Product Name:
BMS(Battery Management System)
Material:
Iron
Color:
Silver
Number Of Battery Strings:
60S(4 X 15 S)
Design:
Slave And Master BMS All In One
Life Span:
Long Life Cycle, >3000 Times At 80% DOD.
Communication:
CAN, RS485
Battery Type:
LFP, NCM, LTO, Lithium Iron Phosphate Battery
Product Name:
BMS(Battery Management System)
iron Ev Power Bms Battery Management System For Electric Vehicles 60S 192V

60S 192V bms lifepo4 battery management system 100a charging voltage RS485 balance module bms



Model No.: RBMS07S60S100A



BMS integrated machine components are composed of BMS main control board, BMU
sampling board, high voltage board, switching power supply, Hall sensor, DC contactor, micro
switch, power terminal, structural box and wiring harness, etc.; the characteristic is that the main
control board Integrate with sampling board and other power devices to keep the system as a
secondary architecture. It has the characteristics of compact structure, flexible installation and
low cost, and is suitable for integrated installation with small capacity batteries. The BMS
integrated machine component is mainly suitable for the charge and discharge management of
lithium iron phosphate batteries (LFP). If you need to modify the parameters with other batteries,
please contact our company for confirmation.iron Ev Power Bms Battery Management System For Electric Vehicles 60S 192V 0iron Ev Power Bms Battery Management System For Electric Vehicles 60S 192V 1
iron Ev Power Bms Battery Management System For Electric Vehicles 60S 192V 2
iron Ev Power Bms Battery Management System For Electric Vehicles 60S 192V 3
iron Ev Power Bms Battery Management System For Electric Vehicles 60S 192V 4

--APPLICATION SCENARIO--

1. Home storage
2. Island off-grid energy storage
3. Micro-grid applications
4. UPS power supply
5. Power System 220V DC power supply

iron Ev Power Bms Battery Management System For Electric Vehicles 60S 192V 5




--System Features--



  • Each 15 strings is a battery collection unit, and 75 series batteries have 5 acquisition units.
  • 15 probes for every 15 strings, for a total of 15
  • current collection uses Hall sensor, safe and reliable, no heat;
  • SOC estimation error ≤ 5%;
  • 3-digit address dialing to set the BMS address;
  • 3-channel relay dry contact output;
  • LED signal indicates working status (4-bit SOC indication, 1-bit operation indication, 1-bit fault indication)
  • 3-digit address dialing to set the BMU address;
  • 3-channel relay dry contact output;
  • 4-channel contactor expansion and auxiliary contact detection;
  • Provide PC software to facilitate the customer to debug the battery system, or modify the
    system parameters through the host computer;
  • Support temperature module expansion;
  • Support Bluetooth, GPRS, external serial port display expansion (extended function single machine three choice one);
  • Support for parallel use (maximum 7 units)
  • The default system overcurrent capability is 100A
  •
