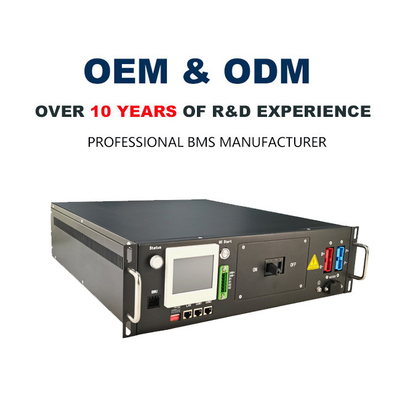

432V 125A 135S Battery Power Bms For 3.2V Lithium Battery Pack

Product Details

Place of Origin: China

Brand Name: GCE

Certification: CE

Model Number: RBMS07S2-3-160A384V

Payment & Shipping Terms

Minimum Order Quantity: 2

Price: Please contact: ellen@hngce.com

Packaging Details: Blister & Carton

Delivery Time: 10-15 work days

Payment Terms: T/T, L/C

Supply Ability: 20000sets / Month

Get Best Price
Highlight:

135S Battery Power Bms

Product Name:
Battery Management System ( Lifepo4 BMS)
Warranty:
3 Years
Battery Type:
LFP/NMC/LTO
Charge And Discharge Current:
125Amp / 160Amp
Communication:
RS485/CAN
Strings:
135S(15S*9)
Touch Screen:
3.5-inch
Application:
BESS,UPS,Solar Energy Storage System,Date Center,Telecom,Boat
Voltage:
432V
Product Name:
Battery Management System ( Lifepo4 BMS)
Warranty:
3 Years
Battery Type:
LFP/NMC/LTO
Charge And Discharge Current:
125Amp / 160Amp
Communication:
RS485/CAN
Strings:
135S(15S*9)
Touch Screen:
3.5-inch
Application:
BESS,UPS,Solar Energy Storage System,Date Center,Telecom,Boat
Voltage:
432V
432V 125A 135S Battery Power Bms For 3.2V Lithium Battery Pack

GCE Battery Management System


Bms Lifepo4 Bms 432V 125A 135S BMS For 3.2V Lithium Battery Pack With RS485 CAN BUS PROTOCOL For Inverter Ups Ess Solar





BMS Configuration


135S 432V 125A High Voltage BMS * 1set

15S BMU *9sets

15S wire harness * 8sets

(15S48V battery module, 9 modules in series for 135S 432V 120A system)

432V 125A 135S Battery Power Bms For 3.2V Lithium Battery Pack 0





Specification


Product Name
BMS
Model no.
RBMS07S2-3-125A432V
protecting method
MCCB+Contactor
Rated Current range
-125A~125A
Voltage Range
48V-384V
Current Sampling Accuracy
1.0%FSR
Communication interface with PCS
RS485/CAN
Communication interface with BMU
CAN
Communication interface with SBMS
RS485/CAN
Communication with monitoring software/EMS
Ethernet
Support IAP upgrade
Yes
Support HMI display and parameter
Yes(Optional)
Insulation detection
Yes(Optional)
High voltage power module
Support DC start (optional)
Dry contact output (normally open)
Up to 3
Maximum qty of BMUs
13
Power
24VDC(18~28V)
Power consumption
≤20W
Size(W*H*D)mm
3U (440*133*500)
Way out
Front
Tap center
Not support
Net weight
17kg





Products Display


432V 125A 135S Battery Power Bms For 3.2V Lithium Battery Pack 1432V 125A 135S Battery Power Bms For 3.2V Lithium Battery Pack 2

432V 125A 135S Battery Power Bms For 3.2V Lithium Battery Pack 3

432V 125A 135S Battery Power Bms For 3.2V Lithium Battery Pack 4

432V 125A 135S Battery Power Bms For 3.2V Lithium Battery Pack 5



Application


GCE Battery Management System for Lithium ion Battery Pack

GCE Battery Management System for Battery Energy Storage System(BESS)

GCE Battery Management System for Industrial and Commercial Battery Solution

GCE Battery Management System for Photovoltaic Farm
GCE Battery Management System for Off-grid energy storage

GCE Battery Management System for Home Energy Storage
GCE Battery Management System for Wind Energy Storage

GCE Battery Management System for Solar Power System
GCE Battery Management System for Grid Frequency Modulation Energy Storage

GCE Battery Management System for Portable Power Station
GCE Battery Management System for UPS Power Supply

GCE Battery Management System for LifePO4 pack

GCE Battery Management System for Lithium ion Batteri Pack

GCE Battery Management System for Micro-grid applications

GCE Battery Management System for Data Centre





FAQ


Q: Are you a manufacturer or a trading company?

A: We are a manufacturer, and we have 10 years of experience in high voltage BMS manufacture.



Q: Can I get some samples?

A: Yes, a sample order is available for quality checking and market testing.



Q: What kind of cells are applicable to this Battery Management System?

A: LFP, NMC, LTO



Q. How about the delivery time?

A: Usually we need about 15-18 work days, which is according to the specification and the order quantity.



Q. What are your terms of payment?

A: Advanced T/T is the main payment term, and other payment terms are negotiable.



Q: What are your warranty terms?

A: We offer a 3-year warranty.



Q. Can you produce BMS with customization requirements?

A: Yes, we offer OEM & ODM services.



Q: How does your factory do regarding quality control?

A: Quality always comes first. All our products go through strict quality control processes from incoming material to the assembling process. Each product will be tested before packing & shipping.
