Features

Specifications

Features: DC&AC Dual Power Supply

Material: Iron

Model Number: 5U (RBMS07S2-3-630A240V)

Battery Type: LFP NMC LTO, LFP NMC LTO

Communication Protocol: Rs485, CAN, LAN

Application: Solar Energy Storage Systems, BESS UPS EV

Packaging: Corrugated Carton, Bundles, Pallets, Wooden Box

Carton Size: 770*560*240mm

High Light:

630A High Voltage BMS

240V High Voltage BMS

Lifepo4 Lfp Bms

Basic Infomation

Place of Origin: China

Brand Name: GCE

Certification: CE/RoHS/SGS/MSDS

Model Number: 4U

Payment & Shipping Terms

Packaging Details: Corrugated Carton

Delivery Time: 15-20 days

Supply Ability: 1000 sets/month

Gallery

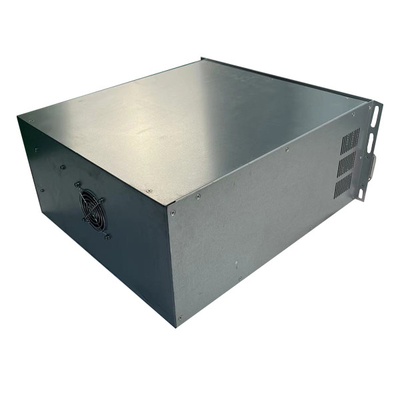

Lifepo4 Lfp High Voltage Bms 75S 240V 630A Battery Energy Storage System

Product Description

GCE LFP Battery Energy Storage System Ultimatron Lifepo4 200ah High Voltage BMS 75S 240V 630A

Model no.: RBMS07S2-3-630A240V

Total 75S (15S*5)

Votage 240V

Max current 630A

LFP battery, cell:3.2v

1set Master BMS,

5sets 15S Slave BMU

5sets 15S Wire Harness

4U standard 19inch case

Efficient, stable and reliable

Size: 440*178*500mm

Accessoires including:

12S-24S BMU(Slave)

12S-24S BMU has 8pcs of tempreture sensors, Fan voltage 48V(17S-24S 12V), voltage detection range 0-5V,12V power supply,consumption less 20mA, CAN2.0 B communication

Wire harness-Signal acquisition wire

18 Pin+20Pin wire, standard length is 600mm,900mm,1200mmtempreture sensor wire: standard length is 600mm,900mm,1200mm

Fan wire: 600mm

Wire harness-communication wire

Communication wire is connecting from master BMS to each BMU with cascade connection, the last port is for terminal resistance

Lifepo4 Lfp High Voltage Bms 75S 240V 630A Battery Energy Storage System 3

Lifepo4 Lfp High Voltage Bms 75S 240V 630A Battery Energy Storage System 4

Lifepo4 Lfp High Voltage Bms 75S 240V 630A Battery Energy Storage System 5

Lifepo4 Lfp High Voltage Bms 75S 240V 630A Battery Energy Storage System 6

Lifepo4 Lfp High Voltage Bms 75S 240V 630A Battery Energy Storage System 7

Lifepo4 Lfp High Voltage Bms 75S 240V 630A Battery Energy Storage System 8

Specification

Product Name	BMS
Model no.	RBMS07S2-3-630A240V
protecting method	MCCB+Contactor
Rated Current range	-630A~630A
Voltage Range	0V-240V
Current Sampling Accuracy	1.0%FSR
Communication interface with PCS	RS485/CAN
Communication interface with BMU	CAN
Communication interface with SBMS	RS485/CAN
Communication with monitoring software/EMS	Ethernet
Support IAP upgrade	Yes
Support HMI display and parameter	No(Optional plug in)
Insulation detection	Yes(Optional)
High voltage power module	Support DC start (optional)
Dry contact output (normally open)	No
Maximum qty of BMUs	20
Power	24VDC(18~28V)
Power consumption	≤20W
Size(WHD)mm	4U (440178600)
Way out	Front
Tap center	Support(Optional)
Net weight	23k

Application

1. Devoated in BMS solution over ten years experience

2. Provide energy storage systems solution, BMS, battery pack and so on.

3. Customization solutions meet all your requirements

Packing
