NMC LTO Battery EV BMS 30S 96V 100A RBMS07S30S100A Support Bluetooth

Name: NMC LTO Battery EV BMS 30S 96V 100A RBMS07S30S100A Support Bluetooth
Brand: GCE
SKU: RBMS07S30S100A
Rating: 4.5 (134 reviews)

Product Details

Place of Origin: china

Brand Name: GCE

Certification: CE UL

Model Number: RBMS07S30S100A

Payment & Shipping Terms

Minimum Order Quantity: 2

Price: Negotiable

Packaging Details: Corrugated Carton,510*310*210mm

Delivery Time: 8-15 days

Payment Terms: L/C, T/T

Supply Ability: 10000+pcs+1 month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                LTO Battery EV BMS, EV BMS 30S


Material:	Iron	Color:	Silver
Communication:	CAN, RS485	Certification:	CE/RoHS/UN38.3/MSDS
OEM/ODM:	Acceptable	Warranty:	3 Years
Application:	Solar, Wind, UPS, EV Car,Home Appliances,Boats,Energy Storage System	Product Name:	Battery Management System

Material:	Iron
Color:	Silver
Communication:	CAN, RS485
Certification:	CE/RoHS/UN38.3/MSDS
OEM/ODM:	Acceptable
Warranty:	3 Years
Application:	Solar, Wind, UPS, EV Car,Home Appliances,Boats,Energy Storage System
Product Name:	Battery Management System

NMC LTO Battery EV BMS 30S 96V 100A RBMS07S30S100A Support Bluetooth

BMS 30S 96V 100A lifepo4 NMC LTO battery developed for large-scale high-voltage battery energy storage systems

Model No.: RBMS07S30S100A

System Features

Each 15 strings is a battery collection unit, and 75 series batteries have 5 acquisition units.
15 probes for every 15 strings, for a total of 15
current collection uses Hall sensor, safe and reliable, no heat;
SOC estimation error ≤ 5%;
3-digit address dialing to set the BMS address;
3-channel relay dry contact output;
LED signal indicates working status (4-bit SOC indication, 1-bit operation indication, 1-bit fault indication)
3-digit address dialing to set the BMU address;
3-channel relay dry contact output;
4-channel contactor expansion and auxiliary contact detection;
Provide PC software to facilitate the customer to debug the battery system, or modify the
system parameters through the host computer;
Support temperature module expansion;
Support Bluetooth, GPRS, external serial port display expansion (extended function single machine three choice one);
Support for parallel use (maximum 7 units)
The default system overcurrent capability is 100A

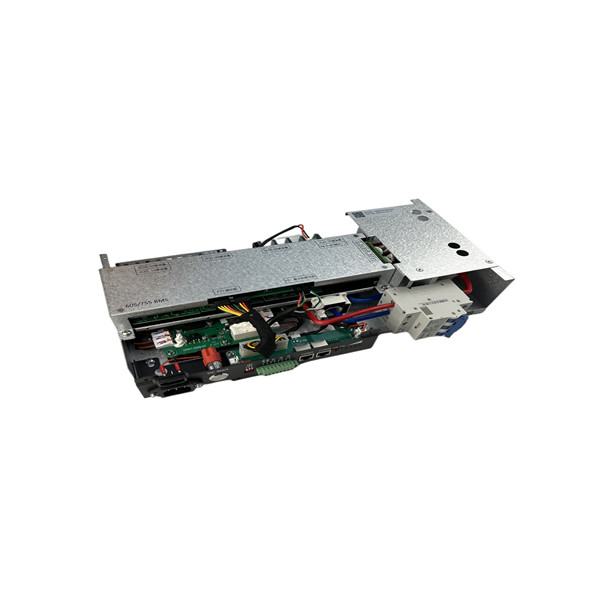

NMC LTO Battery EV BMS 30S 96V 100A RBMS07S30S100A Support Bluetooth 0

- 30S100Amp

Communication protocol:
CAN, RS485, Bluetooth, GPRS,Dry Contact

* Design: Master & Slave all in one
* Efficient, stable and reliable * size:W410*H232*D128cm

Unique Design
It is the latest product developed by GCE and it's unique in the market.

For 30S-75S Lithium Battery Packs
Integrated BMS supports 30S-75S lithium battery packs.

For 30S-75S Lithium Battery Packs
30s to 75s BMS adopts master-slave integrated design and relay solution to meet the lithium battery demand of multiple strings of small capacity batteries less than 100Ah. It greatly reduce the cost of users.

Specification

			Product Name

			Integrated BMS(master slave together in one)

			Model no.

			RBMS07S30S100A

			System voltage range

			120 - 228 V DC

			Startup mode

			DC start (optional AC and DC starter)

			Number of battery strings

			30 S(2 x 15 S)

			Balance

			Balance type

			Passive resistance equalization

			Balanced current

			100mA ± 10mA(Single cell 3.4V )

			Temperature Sampling

			Numbers

			12 Battery temperature(4*3)

			Sampling accuracy

			± 2℃

			Voltage Sampling

			Sampling accuracy

			Single cell ±20mV

			SOC

			≤5%

			Communication mode

			CAN: 1 channel (communication with PCs / UPS)

			RS485: 1 channel (communication with upper computer / PCS / UPS)

			Bluetooth: optional (android app available)

			GPRS: optional,

			Display mode

			6-digit LED indicator, including 1-bit fault indication, 1-bit operation indication, 4-bit SOC power indication

			HMI display: optional

			Hall sensor specifications

			50A/100A

			Maximum load of power components

			Steady-state:100A

			transient state:150A/10S( Adjustable)

			Alarm level

			1 Level

			Protection level

			2 two levels

			Level 1 cut off charge / discharge

			Level 2 micro cut-off switch, system power down

			Operating Temperature

			Charging : －10～75℃

			Discharging : -20 to 75℃

			Storage : -40 to +75℃
