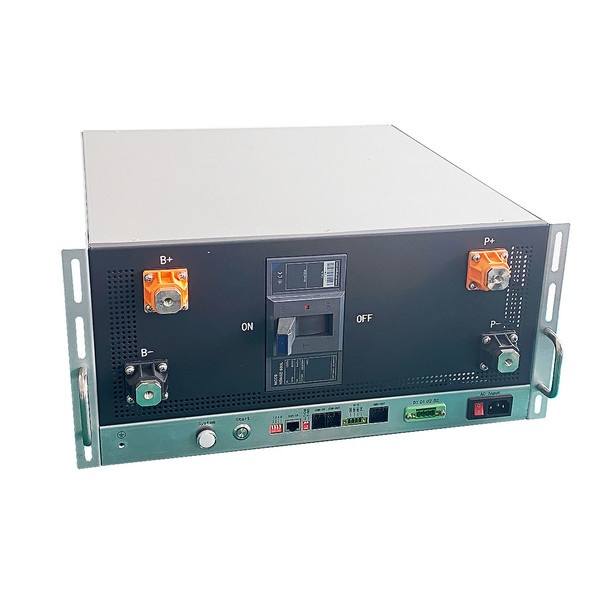

RS485 CAN TCPIP High Voltage BMS 240V 400A 19 inch size 5U iron box

Product Details

Place of Origin: China

Brand Name: GCE

Certification: CE

Model Number: RBMS07S20-400A240V

Payment & Shipping Terms

Minimum Order Quantity: 2

Price: Negotiable with jeffreyth@hngce.com

Packaging Details: Carton packaging

Delivery Time: 20-25days

Supply Ability: 1000pcs per month

Get Best Price
Highlight:

TCPIP High Voltage BMS

,

High Voltage BMS 400A

,

rs485 bms

Size:
440mm*220mm*500mm
Weight:
38kg
Voltage:
48V-240V
Current:
400A/ 480A For 10s
Comnunication:
RS485 CAN TCPIP
HMI Display:
External Connection (optional)
Size:
440mm*220mm*500mm
Weight:
38kg
Voltage:
48V-240V
Current:
400A/ 480A For 10s
Comnunication:
RS485 CAN TCPIP
HMI Display:
External Connection (optional)
RS485 CAN TCPIP High Voltage BMS 240V 400A 19 inch size 5U iron box

Hunan GCE 240V 400A master and slave high voltage BMS 19 inch size 5U iron box for UPS container ESS


GCE high voltage BMS introduction:


Master/Slave architecture(RBMS+BMU)
Possibility to connect in series several HVS in order to manage a battery pack with a voltage up to 1000 Volts
Management of 12-24 lithium cells in series* per HVS compatible with all cell technologies (NMC, LiFe, LiPo,…), +/- 5 mV of accuracy.
Management of 8 NTC temperature sensors for each BMU



Hardware redundancy for voltage and temperature measurements in order to reach a high level of safety (SIL2 of EN61508 standard)
Overcharge and undercharge, can be set by upper computer software
Overtemperature and undertemperature, can be set by upper computer software
Overcurrent: automatical protection by RBMS with 2 levels, data setting according to requirement.

SOC and SOH calculation
Advanced self-diagnostic of the board
Communication by CAN bus 2.0B
Motor controller management by CAN bus
Charger management by CAN bus
Insulation measurement
Power supply/consumption



GCE Series HV-BMS products are battery management systems developed for large-scale high-voltage battery energy storage systems. It adopts distributed architecture, modular design concept, high configurability, easy assembly, debugging and maintenance. It is suitable for various battery energy storage systems with DC voltage below 1000V. This product can be configured as a secondary architecture (BMU+RBMS) for 10KWh-500KWh. Cooperate with industrial computer and battery stack management software to form a three-level architecture (BMU+RBMS+SBMS) for 50KWh-2MWh applications. In conjunction with the server and plant battery management system software, it can form a four-level architecture (BMU+RBMS+SBMS+BBMS) for applications from 2MWh to 1000MWh to meet different project requirements.



RS485 CAN TCPIP High Voltage BMS 240V 400A 19 inch size 5U iron box 0

RS485 CAN TCPIP High Voltage BMS 240V 400A 19 inch size 5U iron box 1

GCE HV- BMS for Lifepo3,NMC,LTO battery packs applications:




1. BESS / solar farm

2. UPS (uninterpretable power supply)

3. power grid energy storage/ Microgrid power

4.Urban rail train

5. charging pile station energy storage



RS485 CAN TCPIP High Voltage BMS 240V 400A 19 inch size 5U iron box 2



GCE HV-BMS features:





RBMS 5U-300A-500A-S 5U-300A-500A-D
protecting method MCCB+Contactor MCCB+Contactor
Rated Current range -500A~500A -500A~500A
Voltage range 384V-1000V 384V-1000V
Current sampling accuracy 1.0%FSR 1.0%FSR
Communication interface with PCS RS485/CAN RS485/CAN
Communication interface with BMU CAN CAN
Communication interface with GBMS RS485/CAN RS485/CAN
Communication with monitoring software/EMS Ethernet Ethernet
Support IAP upgrade Yes Yes
Support HMI display and parameter settings No(OptionalPlug in) No(OptionalPlug in)
Insulation detection Yes(Optional) none
High voltage power module Support DC start (optional) Support DC start (optional)
Dry contact output (normally open) None None
Maximum qty of BMUs 20 20
Power 24VDC(18~28V) 24VDC(18~28V)
Power consumption ≤20W ≤20W
Size (W*H*D)mm 5U 5U
(440*223*500) (440*223*550)
Way out Front Front
Tap center support(optional) support(optional)
net weight 38kg 42kg





RS485 CAN TCPIP High Voltage BMS 240V 400A 19 inch size 5U iron box 3

RS485 CAN TCPIP High Voltage BMS 240V 400A 19 inch size 5U iron box 4
