GCE 64s High Voltage BMS , Lifepo4 BMS 100a Rs485 CAN Communication
2
MOQ
Please contact: ellen@hngce.com
Price
GCE 64s High Voltage BMS , Lifepo4 BMS 100a Rs485 CAN Communication
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: GCE
Certification: CE
Model Number: RBMS07S64S50A
High Light:

64s High Voltage BMS

,

GCE High Voltage BMS

,

Lifepo4 BMS 100a Rs485

Payment & Shipping Terms
Packaging Details: Blister & Carton
Delivery Time: 10-15 work days
Payment Terms: T/T, L/C
Supply Ability: 5000sets / Month
Specifications
Product Name: 64S BMS, Master-Slave BMS, Integrated BMS
Battery Type: LifePO4
Charge And Discharge Current: 50Amp & 100Amp
Strings: 64S
Communication: Rs485 / CAN
Style: Slave And Master All In One Device
Warranty: 3 Years
Application: Home Energy Storage, UPS, ESS
Product Description

64S High Voltage BMS


GCE 64s BMS Lifepo4 BMS 100A Battery Management System With Unique Design For High Voltage Lithium Ion Battery



Specification


Product Name
Master Slave BMS (Integrated BMS)
Model no.
RBMS07S64S100A
System voltage range
96-240 V DC
Startup mode
DC start (optional AC and DC starter)
Number of battery strings30
30S-75S
Balance
Equilibrium type
Passive resistance equalization

Balanced current
100mA ± 10mA(Single cell 3.4V )
Temperature Sampling
Numbers
12 Battery temperature(4*3)

Sampling accuracy
± 2℃
Voltage Sampling
Sampling accuracy
Single cell ±20mV
SOC
≤5%
Communication mode
CAN: 1 channel (communication with PCs / UPS)
RS485: 1 channel (communication with upper computer / PCS / UPS)
Bluetooth: optional (android app available)
GPRS: optional,
Display mode
6-digit LED indicator, including 1-bit fault indication, 1-bit operation indication, 4-bit SOC power indication
HMI display: optional
Hall sensor specifications
50A/100A
Maximum load of power components
Steady-state:100A
transient state:150A/10S( Adjustable)
Alarm level
1 Level
Protection level
2 two levels
Level 1 cut off charge / discharge
Level 2 micro cut-off switch, system power down
Operating Temperature
Charging : -10~75℃
Discharging : -20 to 75℃
Storage : -40 to +75℃







Product Feature


  • Each 15 strings is a battery collection unit, and 75 series batteries have 5 acquisition units.
  • 3 temperature sensor per 15 strings, 12 total for 60 strings; 15 total for 75 strings.
  • Hall sensor for current collection, safe and reliable, no heat.
  • SOC estimation error ≤ 5%.
  • 3-digit address dialing to set the BMS address.
  • 3-channel relay dry contact output.
  • PC software will be provided for customers to debug BMS and modify system parameters.
  • Support up to 7 BMS in parallel.
  • HMI display: Optional (3.5-inch screen)

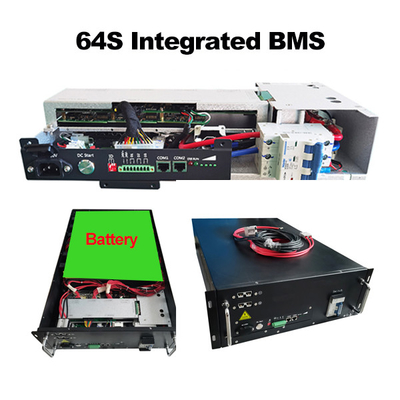

Products Display


GCE 64s High Voltage BMS , Lifepo4 BMS 100a Rs485 CAN Communication 0GCE 64s High Voltage BMS , Lifepo4 BMS 100a Rs485 CAN Communication 1



GCE 64s High Voltage BMS , Lifepo4 BMS 100a Rs485 CAN Communication 2

GCE 64s High Voltage BMS , Lifepo4 BMS 100a Rs485 CAN Communication 3



FAQ


  • Q: Are you a manufacturer or a trading company?
    A: We are a manufacturer, and we have 10 years of experience in high voltage manufacturer.
  • Q: Can I get some samples?
    A: Yes, a sample order is available for quality checking and market testing.
  • Q: What kind of cells are applicable to this Battery Management System?
    A: LFP, NMC, LTO
  • Q. How about the delivery time?
    A: Usually we need about 15-20 working days, which is according to the specification and the order quantity.
  • Q. What are your terms of payment?
    A: Advanced T/T is the main payment term, and other payment terms are negotiable.
  • Q: What are your warranty terms?
    A: We offer a 3-year warranty.
  • Q. Can you produce BMS with customization requirements?
    A: Yes, we offer OEM & ODM services.
  • Q: How does your factory do regarding quality control?
    A: Quality always comes first. All our products go through strict quality control processes from incoming material to the assembling process. Each product will be tested before packing & shipping.
  •
