90S 288V 50A Relay BMS 2U slave master Smart Battery Management System

Product Details

Place of Origin: china

Brand Name: GCE

Certification: CE UL

Model Number: RBMS07S20-50A288V

Payment & Shipping Terms

Minimum Order Quantity: 2

Price: negotiable

Packaging Details: Corrugated Carton,510*310*210mm

Delivery Time: 8-15 days

Payment Terms: L/C, T/T

Supply Ability: 10000+pcs+1 month

Get Best Price
Highlight:

50A Relay BMS

,

288V Relay BMS

,

Slave Master Smart Battery Management System

Material:
Iron
Color:
Black
Warranty:
3 Yesrs
Type:
Power Bank Pcba
Voltage:
288V
Module Numbers::
3 Inseries
Material:
Iron
Color:
Black
Warranty:
3 Yesrs
Type:
Power Bank Pcba
Voltage:
288V
Module Numbers::
3 Inseries

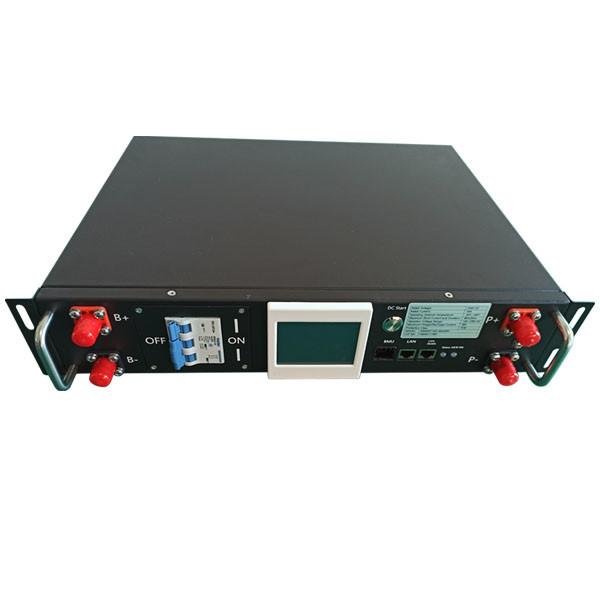

90S 288V 50A Relay BMS 2U slave master Smart Battery Management System

90S 288V 50A 2U smart BMS for high voltage bms with relay contactor lifepo4 bms slave master for battery ess

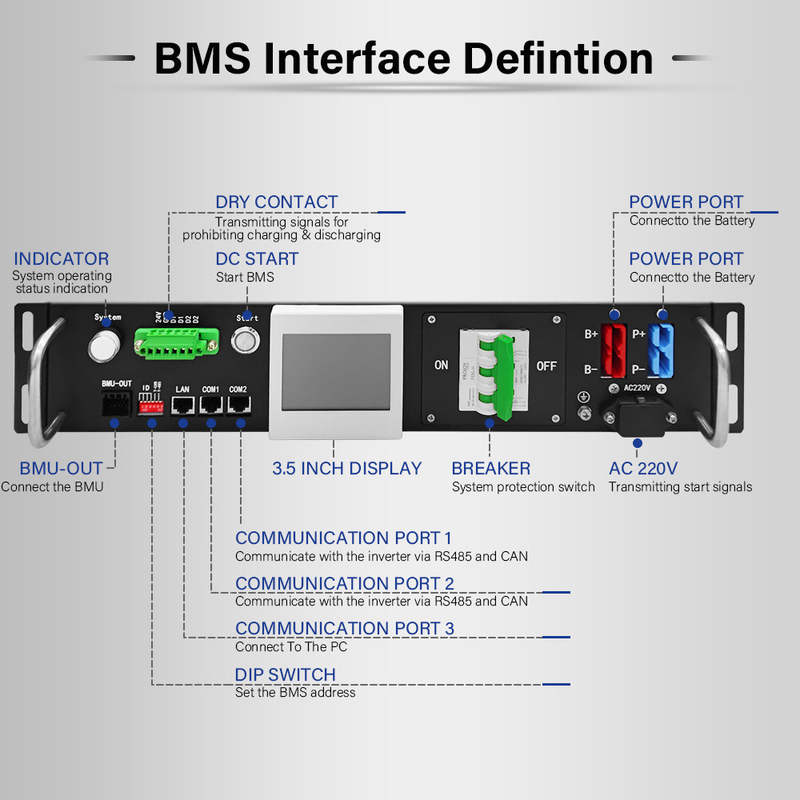

Communication protocol:

Rs485, CAN, LAN, Dry contact

* 2U standard 19inch case * Efficient, stable and reliable * size:W440*H88*D500mm

90S 288V 50A Relay BMS 2U slave master Smart Battery Management System 090S 288V 50A Relay BMS 2U slave master Smart Battery Management System 190S 288V 50A Relay BMS 2U slave master Smart Battery Management System 290S 288V 50A Relay BMS 2U slave master Smart Battery Management System 3



--Specification--

Product Name
BMS
Model no.
RBMS07S2-3-50A288V
protecting method
MCCB+Contactor
Rated Current range
-50A~50A
Voltage Range
0V-288V
Current Sampling Accuracy
1.0%FSR
Communication interface with PCS
RS485/CAN
Communication interface with BMU
CAN
Communication interface with RBMS
RS485/CAN
Communication with monitoring software/EMS
Ethernet
Support IAP upgrade
Yes
Support HMI display and parameter
Yes(Optional)
Insulation detection
No
High voltage power module
Support DC start (optional)
Dry contact output (normally open)
Up to 3
Maximum qty of BMUs
5
Power
24VDC(18~28V)
Power consumption
≤20W
Size(W*H*D)mm
2U (440*88*500)
Way out
Front
Mid-line
Not support
Tap center
Not support
Net weight
14kg




90S 288V 50A Relay BMS 2U slave master Smart Battery Management System 4 Digital & Analog Output Controls
Provides multiple methods of controlling chargers, motor controllers and other external devices



90S 288V 50A Relay BMS 2U slave master Smart Battery Management System 5 Intelligent Cell Balancing
Efficient passive balancing is used to maximize the usable capacity of battery packs



90S 288V 50A Relay BMS 2U slave master Smart Battery Management System 6 Health Monitoring
Monitors internal resistance of individual cells and the measured capacity of the battery pack





90S 288V 50A Relay BMS 2U slave master Smart Battery Management System 7 Field Programmable
Parameters such as voltage ranges, current limits and many other settings are easily field changeable.



90S 288V 50A Relay BMS 2U slave master Smart Battery Management System 8 Current & Voltage Protection
Protects the battery pack from over-charge and over-discharge thereby extending cycle life



90S 288V 50A Relay BMS 2U slave master Smart Battery Management System 9 Thermal Management
Over-temperature and under-temperature protection with fan controls for cooling or heating
