75S Smart Bms Battery lifepo4 240V 160A RS485 / CAN communication
2
MOQ
negotiable
Price
75S Smart Bms Battery lifepo4 240V 160A RS485 / CAN communication
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: china
Brand Name: GCE
Certification: CE UL
Model Number: RBMS07S23-160A240V
High Light:

75S Smart Bms Battery

,

Smart Bms Battery 240V

,

Smart Bms Lifepo4 160A

Payment & Shipping Terms
Packaging Details: Corrugated Carton,685*560*200mm
Delivery Time: 8-15 days
Payment Terms: L/C, T/T
Supply Ability: 10000+pcs+1 month
Specifications
Material: Iron
Color: Black
Communication: CAN, RS485
Certification: CE/RoHS/UN38.3/MSDS
Warranty: 3 Years
Application: Solar, Wind, UPS, EV Car,Home Appliances,Boats,Energy Storage System
Product Description

GCE 75S 240V 160A high voltage bms smart BMS lifepo4 bms 15S BMU in series battery management system energy storage UPS

Overall Solution High Voltage Battery Management System
Two Categories:
Integrated BMS (30S/96V~75S/240V, Max. 100A)
Separated BMS(60S/192V~270S/864V, Max. 500A)
Support Li-Ion batteries: Lifepo4 batteries, MnNiCo ternary batteries,
Lithium Titanate batteries



75S Smart Bms Battery lifepo4 240V 160A RS485 / CAN communication 0



4S to 24s low voltage software BMS has a wide range of uses, rich product interfaces, strong scalability and secondary development compatibility;



30s to 75s BMS adopts master-slave integrated design and relay solution to meet the lithium battery demand of multiple strings of small capacity batteries. Greatly reduce the use cost of users;



60s-270s adopts master-slave three-level architecture, which can meet the series and parallel requirements of high-capacity single lithium batteries within 1000V.





75S Smart Bms Battery lifepo4 240V 160A RS485 / CAN communication 1

Specification
Product Name
BMS
Model no.
RBMS07S2-3-160A240V
protecting method
MCCB+Contactor
Rated Current range
-160A~160A
Voltage Range
48V-240V
Current Sampling Accuracy
1.0%FSR
Communication interface with PCS
RS485/CAN
Communication interface with BMU
CAN
Communication interface with SBMS
RS485/CAN
Communication with monitoring software/EMS
Ethernet
Support IAP upgrade
Yes
Support HMI display and parameter
Yes(Optional)
Insulation detection
Yes(Optional)
High voltage power module
Support DC start (optional)
Dry contact output (normally open)
Up to 3
Maximum qty of BMUs
13
Power
24VDC(18~28V)
Power consumption
≤20W
Size(W*H*D)mm
3U (440*133*500)
Way out
Front
Tap center
Not support
Net weight
17kg

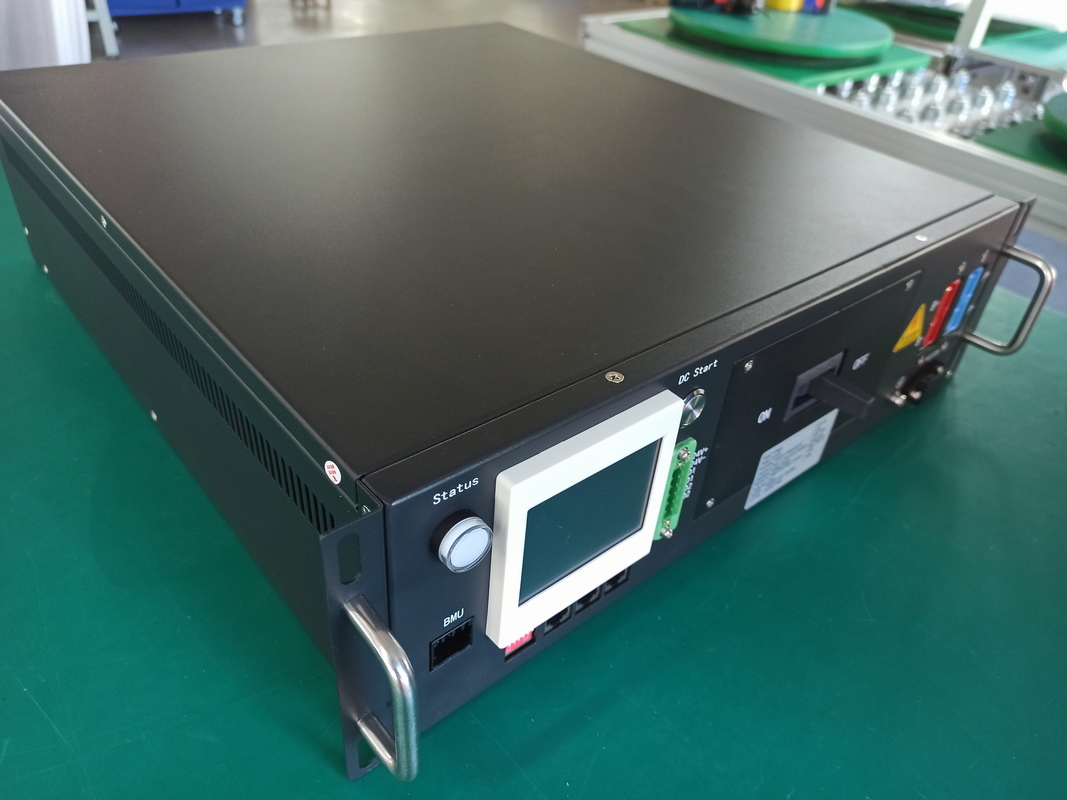

Actual picture for your referance

75S Smart Bms Battery lifepo4 240V 160A RS485 / CAN communication 2

75S Smart Bms Battery lifepo4 240V 160A RS485 / CAN communication 375S Smart Bms Battery lifepo4 240V 160A RS485 / CAN communication 4

75S Smart Bms Battery lifepo4 240V 160A RS485 / CAN communication 575S Smart Bms Battery lifepo4 240V 160A RS485 / CAN communication 675S Smart Bms Battery lifepo4 240V 160A RS485 / CAN communication 7

75S Smart Bms Battery lifepo4 240V 160A RS485 / CAN communication 8
