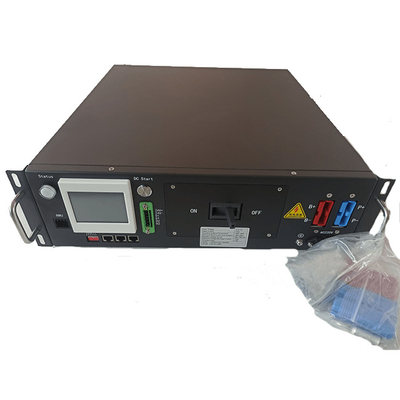

Iron High Voltage Bms 120S Cells 384V 160A With Relay Breaker 15S BMU

2
MOQ
negotiable
Price
Iron High Voltage Bms 120S Cells 384V 160A With Relay Breaker 15S BMU
Features Gallery Product Description Request A Quote
Features
Specifications
Certification: CE/RoHS/UN38.3/MSDS
Material: Iron
Color: Black
Communication: CAN, RS485
OEM/ODM: Acceptable
Warranty: 3 Years
Highlight:

High Voltage Bms 120S

,

High Voltage Bms 384V
Basic Infomation
Place of Origin: china
Brand Name: GCE
Model Number: RBMS07S23-160A384V
Payment & Shipping Terms
Packaging Details: Corrugated Carton,685*560*200mm
Delivery Time: 8-15 days
Payment Terms: L/C, T/T
Supply Ability: 10000+pcs+1 month
Product Description

GCE 120S cells 384V 160A high voltage bms master BMS with relay breaker 15S BMU in series for battery energy storage system

BMS Gonfiguration:
120S 384V 160A High Voltage BMS * 1set
15S BMU * 8 sets
15S wire harness *8 sets
(15S48V battery module, 8 modules in series for 120S 384V 160A system)

Iron High Voltage Bms 120S Cells 384V 160A With Relay Breaker 15S BMU 0

Iron High Voltage Bms 120S Cells 384V 160A With Relay Breaker 15S BMU 1Iron High Voltage Bms 120S Cells 384V 160A With Relay Breaker 15S BMU 2Iron High Voltage Bms 120S Cells 384V 160A With Relay Breaker 15S BMU 3Iron High Voltage Bms 120S Cells 384V 160A With Relay Breaker 15S BMU 4

Accessories
Iron High Voltage Bms 120S Cells 384V 160A With Relay Breaker 15S BMU 5

12S-24S BMU(Slave)

12S-24S BMU has 8pcs of tempreture sensors, Fan voltage 48V(17S-24S 12V), voltage detection range 0-5V,12V power
supply,consumption less 20mA, CAN2.0 B communication
Iron High Voltage Bms 120S Cells 384V 160A With Relay Breaker 15S BMU 6

Wire harness-Signal acquisition wire

18 Pin+20Pin wire, standard length is 600mm,900mm,1200mmtempreture sensor wire: standard length is 600mm,900mm,1200mm
Fan wire: 600mm
Iron High Voltage Bms 120S Cells 384V 160A With Relay Breaker 15S BMU 7

Wire harness-communication wire

Communication wire is connecting from master BMS to each BMU with cascade connection, the last port is for terminal resistance
Specification
Product Name
BMS
Model no.
RBMS07S2-3-160A384V
protecting method
MCCB+Contactor
Rated Current range
-160A~160A
Voltage Range
120V-680V
Current Sampling Accuracy
1.0%FSR
Communication interface with PCS
RS485/CAN
Communication interface with BMU
CAN
Communication interface with SBMS
RS485/CAN
Communication with monitoring software/EMS
Ethernet
Support IAP upgrade
Yes
Support HMI display and parameter
Yes(Optional)
Insulation detection
Yes(Optional)
High voltage power module
Support DC start (optional)
Dry contact output (normally open)
Up to 3
Maximum qty of BMUs
8
Power
24VDC(18~28V)
Power consumption
≤20W
Size(W*H*D)mm
2U (440*88*500)
Way out
Front
Mid-line
Not support
Tap center
Not support
Net weight
17kg



BMS System Structure
Iron High Voltage Bms 120S Cells 384V 160A With Relay Breaker 15S BMU 8
Product Feature
1.
Advanced Battery Management System --- The highly integrated battery management system enables seamless monitoring.
2.
perfect self-test and operational status detection, with HMI display, system
operation information at a glance.
3.
perfect and reliable system control and protection strategies to fully protect the
battery safety, extend the life of the battery escort.
4.
Modular design, configurable, scalable --- flexible combination of multiple energy
storage unit can be expanded to a larger energy storage system, the maximum can support 272 (lead-carbon battery 400) battery series.
5.
Rich communication interface --- multiple RS485, CAN, Ethernet, dry contact input and output interfaces, support for most of the market with PCS, monitoring server communication.
6.
Flexible communication interface protocol --- The company comes with the company's communication protocol, but also according to customer needs to adapt to PCS of different manufacturers.
7.
Capacity is large --- Built-in large-capacity memory chips can store a large number of key operational data, but also can install an SD card for offline access.
8.
PCS has a protocol control function, the choice of circuit breaker version .
9.
PCS without protocol control function, the choice of contactor + breaker version.
10.
Automatic circulation control and automatic parallel machine off-line control, can be easily parallel battery. (Model suffix selection D).
