GCE 224S 716.8V Battery Pack Solution , 160A Master Slave Bms

Product Details

Place of Origin: China

Brand Name: GCE

Certification: CE/RoHS/SGS/MSDS

Model Number: 5U

Payment & Shipping Terms

Minimum Order Quantity: 2

Price: negotiable

Packaging Details: Corrugated Carton

Delivery Time: 15-20 days

Supply Ability: 1000 sets/month

Get Best Price
Highlight:

716.8V Battery Pack Solution

,

224S Master Slave Bms

,

160A Master Slave Bms

Product Name:
716.8V160A High Voltage 4U BMS
Model Number:
4U (RBMS07-S20-160A716.8V)
Modules:
224S (15S*15)
Voltage:
716.8V
Current:
160A
Maximum Qty Of BMUs:
20
Single Gross Weight:
23 Kg
Single Package Size:
77X65X24 Cm
Product Name:
716.8V160A High Voltage 4U BMS
Model Number:
4U (RBMS07-S20-160A716.8V)
Modules:
224S (15S*15)
Voltage:
716.8V
Current:
160A
Maximum Qty Of BMUs:
20
Single Gross Weight:
23 Kg
Single Package Size:
77X65X24 Cm
GCE 224S 716.8V Battery Pack Solution , 160A Master Slave Bms

GCE 224S 716.8V 160A Lifepo4 BMS Li-Ion Battery Management System Master BMS 4S 12V BMS

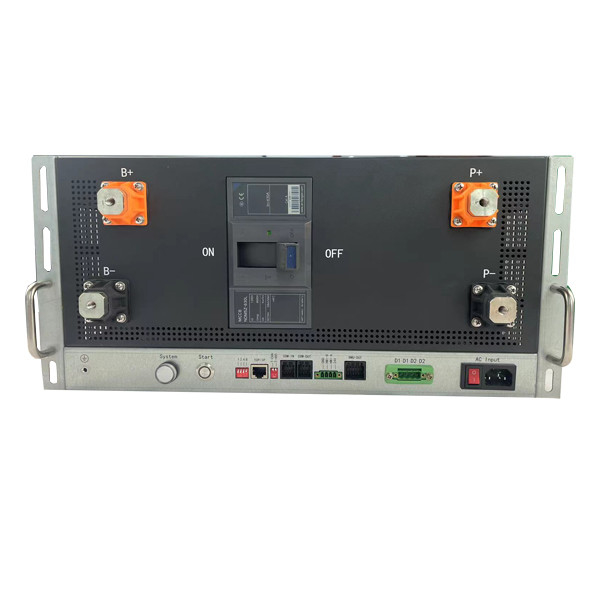

GCE 224S 716.8V Battery Pack Solution , 160A Master Slave Bms 0




Model no.: RBMS07-S20-160A716.8V



BMS Solution:

Number of moudel strings: 224S (15S*15)

1set Master BMS,

15sets 15S Slave BMU

15sets 15S Wire Harness

4U standard 19inch case

Efficient, stable and reliable

Size: 440*178*500mm



Selling Units:Single item

Single package size: 80X70X60 cm

Single gross weight:40.000 kg

Package Type:Corrugated Carton, bundles, pallets, wooden box

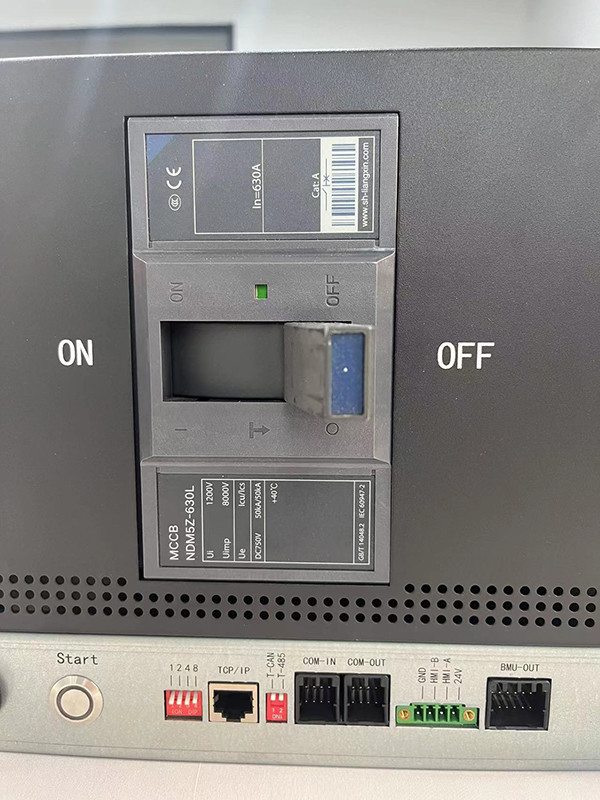

GCE 224S 716.8V Battery Pack Solution , 160A Master Slave Bms 1



Accessoires including:



12S-24S BMU(Slave)

Wire harness-Signal acquisition wire

Wire harness-communication wire

12S-24S BMU has 8pcs of tempreture sensors, Fan voltage 48V(17S-24S 12V), voltage detection range 0-5V,12V power
supply,consumption less 20mA, CAN2.0 B communication
18 Pin+20Pin wire, standard length is 600mm,900mm,1200mmtempreture sensor wire: standard length is 600mm,900mm,1200mm
Fan wire: 600mm



Communication wire is connecting from master BMS to each BMU with cascade connection, the last port is for terminal resistance
GCE 224S 716.8V Battery Pack Solution , 160A Master Slave Bms 2 GCE 224S 716.8V Battery Pack Solution , 160A Master Slave Bms 3 GCE 224S 716.8V Battery Pack Solution , 160A Master Slave Bms 4
13sets 15S Slave BMU 13sets 15S Wire Harness 13sets 15S Wire Harness





Specification

item
High voltage BMS
Place of Origin
China

Hunan
Application
Solar Energy Storage Systems
Brand Name
GCE
Model Number
15
Model Number:
RBMS07S-20-160A716.8V
Product name:
4U BMS
Battery Type:
LFP/NMC/LTO
communication:
Rs485/CAN/LAN/dry contact
Voltage:
716.8V
Current:
-160~160A
Application:
BESS/UPS
module strings:
15S*14pcs
Power
24VDC(18~28V)
Power consumption
≤20W
Communication with monitoring software/EMS
Ethernet
High voltage power module
Support DC start (optional)
Way out
Front
Center Tap
Support(Optional)
Net weight
23kg
Size(W*H*D)mm
4U (440*178*600)







Project We Made








GCE 224S 716.8V Battery Pack Solution , 160A Master Slave Bms 5 GCE 224S 716.8V Battery Pack Solution , 160A Master Slave Bms 6 GCE 224S 716.8V Battery Pack Solution , 160A Master Slave Bms 7
GCE 224S 716.8V Battery Pack Solution , 160A Master Slave Bms 8 GCE 224S 716.8V Battery Pack Solution , 160A Master Slave Bms 9 GCE 224S 716.8V Battery Pack Solution , 160A Master Slave Bms 10
GCE 224S 716.8V Battery Pack Solution , 160A Master Slave Bms 11 GCE 224S 716.8V Battery Pack Solution , 160A Master Slave Bms 12 GCE 224S 716.8V Battery Pack Solution , 160A Master Slave Bms 13




Application


GCE 224S 716.8V Battery Pack Solution , 160A Master Slave Bms 14


Martet
GCE 224S 716.8V Battery Pack Solution , 160A Master Slave Bms 15
