135S 432V 50A High Voltage BMS , Lithium Battery BMS System With CAN RS485 Protocol
2
MOQ
negotiable
Price
135S 432V 50A High Voltage BMS , Lithium Battery BMS System With CAN RS485 Protocol
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: china
Brand Name: GCE
Certification: CE UL
Model Number: RBMS07S23-50A432V
High Light:

432V High Voltage BMS

,

CAN High Voltage BMS

,

RS485 Lithium Battery BMS System

Payment & Shipping Terms
Packaging Details: Corrugated Carton,510*310*210mm
Delivery Time: 8-15 days
Payment Terms: L/C, T/T
Supply Ability: 10000+pcs+1 month
Specifications
Material: Iron
Color: Black
Communication: CAN, RS485
Certification: CE/RoHS/UN38.3/MSDS
OEM/ODM: Acceptable
Warranty: 3 Years
Product Description

GCE 135S 432V 50A High Voltage BMS Battery Management System with CAN RS485 Protocol 15S BMU for UPS ESS BESS Solar

Specification

Product Name
BMS
Model no.
RBMS07S2-3-63A384V
protecting method
MCCB+Contactor
Rated Current range
-125A~125A
Voltage Range
120V-680V
Current Sampling Accuracy
1.0%FSR
Communication interface with UPS
RS485/CAN
Communication interface with BMU
CAN
Communication interface with SBMS
RS485/CAN
Communication with monitoring software/EMS
Ethernet
Support IAP upgrade
Yes
Support HMI display and parameter
Yes(Optional)
Insulation detection
Yes(Optional)
High voltage power module
Support DC start (optional)
Dry contact output (normally open)
Up to 3
Maximum qty of BMUs
13
Power
24VDC(18~28V)
Power consumption
≤15W
Size(W*H*D)mm
3U (482*132*500)
Way out
Front
Mid-line
Not support
Tap center
Not support
Net weight
15kg



135S 432V 50A High Voltage BMS , Lithium Battery BMS System With CAN RS485 Protocol 0135S 432V 50A High Voltage BMS , Lithium Battery BMS System With CAN RS485 Protocol 1135S 432V 50A High Voltage BMS , Lithium Battery BMS System With CAN RS485 Protocol 2135S 432V 50A High Voltage BMS , Lithium Battery BMS System With CAN RS485 Protocol 3135S 432V 50A High Voltage BMS , Lithium Battery BMS System With CAN RS485 Protocol 4







What? Why? How?
High voltage bms is to make many cells in 8 strings, 12strings 13strings...24strings to be a basic module, and many same battery modules in series as a battery rack and many racks in parallel as a battery stack and many stacks in parallel as a battery bank and...


GCE says, we can make 8 strings of cells, 12S ,13S...23S, 24S, any of them as a basic module, you many install a mosfet bms(lowvolatge bms or Xs bms) into the basic battery module(20Kwh maximum) as an independent system,I guess you're all too familiar withit. Now, i want you to make each all same modules in series to get 200kwh or more. You will quickly think of making all modules inparallel, right? but this is not a good solution. It's neither efficient nor perfect. Please discard it to the Pacific Ocean.

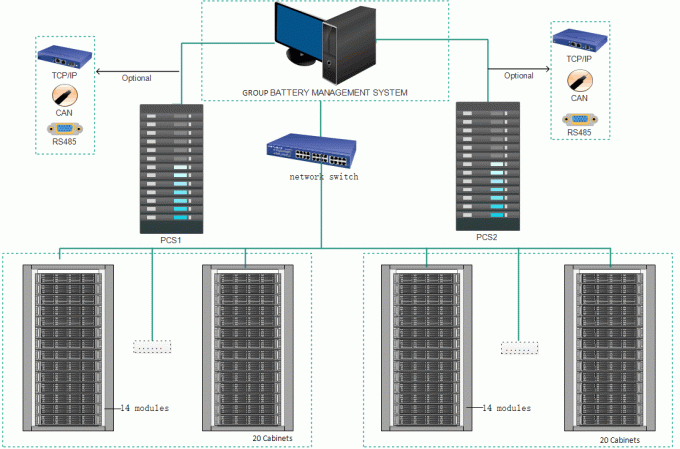

GCE has R&D high voltage bms for nearly 10years, we have 3-level structure of BMS with perfect solution for basic battery modulesin series and parallel to make 100kwh to 1Gwh or more. please refer to the picture, we install BMU(slave bms) into the basic battery modules, each module is connected in cascade by Isolated CAN bus wire harness till to RBMS(rack bms /master bms).BMU collecting voltage, and temperature from each cell of modules. The voltage balance between battery modules can be achieved by starting the fan or balancing the resistance. We can set the ID number of each RBMs through the dial switch, and make each RBMS in parallel by network cable. We use Stack BMS collecting all information from each RBMS. GCE has rich interface reservation and is very friendly to the access of external systems.The core technology of GCE is to ensure stable, efficient and reliable system communication.



What is high voltage bms
135S 432V 50A High Voltage BMS , Lithium Battery BMS System With CAN RS485 Protocol 5
