GCE 2U RBMS High-Voltage Rack Battery Management System | 50A Rated, 500V Max, Parallel Support & 3-Level Architecture (BMU+RBMS+SBMS) for ESS, UPS & Microgrid

Name: GCE 2U RBMS High-Voltage Rack Battery Management System | 50A Rated, 500V Max, Parallel Support & 3-Level Architecture (BMU+RBMS+SBMS) for ESS, UPS & Microgrid
Brand: Hunan GCE Technology Co.,Ltd
SKU: RBMS-S23-50A-500
Price: 100000000 USD
Availability: InStock

Product Details

Place of Origin: china

Brand Name: GCE

Certification: CE

Model Number: RBMS-S23-50A-500

Payment & Shipping Terms

Minimum Order Quantity: 2 units

Price: Consult with cara@hngce.com

Packaging Details: Cardboard box foam packaging

Delivery Time: 25 workdays

Payment Terms: L/C, T/T

Supply Ability: 1000 units per month

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                    high voltage BMS 50A rated, rack battery management system 500V max, HV BMS with parallel support


Product Name:	Battery Management System BMS	Suitable Battery Type:	LFP/NMC/LTO
Communication:	RS485/CAN/LAN	Apllication:	Stationary ESS, Solar Energy Storage System, Ups, EV Charging Pile
Size:	48289500(mm)	Weight:	10kg
Warranty:	3 Years	Certification:	CE/RoHS/UN38.3/MSDS
OEM/ODM:	Acceptable	Capacity:	50Ah/100Ah/200Ah/280Ah/314Ah/628Ah Any Capacity

Product Name:	Battery Management System BMS
Suitable Battery Type:	LFP/NMC/LTO
Communication:	RS485/CAN/LAN
Apllication:	Stationary ESS, Solar Energy Storage System, Ups, EV Charging Pile
Size:	48289500(mm)
Weight:	10kg
Warranty:	3 Years
Certification:	CE/RoHS/UN38.3/MSDS
OEM/ODM:	Acceptable
Capacity:	50Ah/100Ah/200Ah/280Ah/314Ah/628Ah Any Capacity

GCE 2U RBMS High-Voltage Rack Battery Management System | 50A Rated, 500V Max, Parallel Support & 3-Level Architecture (BMU+RBMS+SBMS) for ESS, UPS & Microgrid

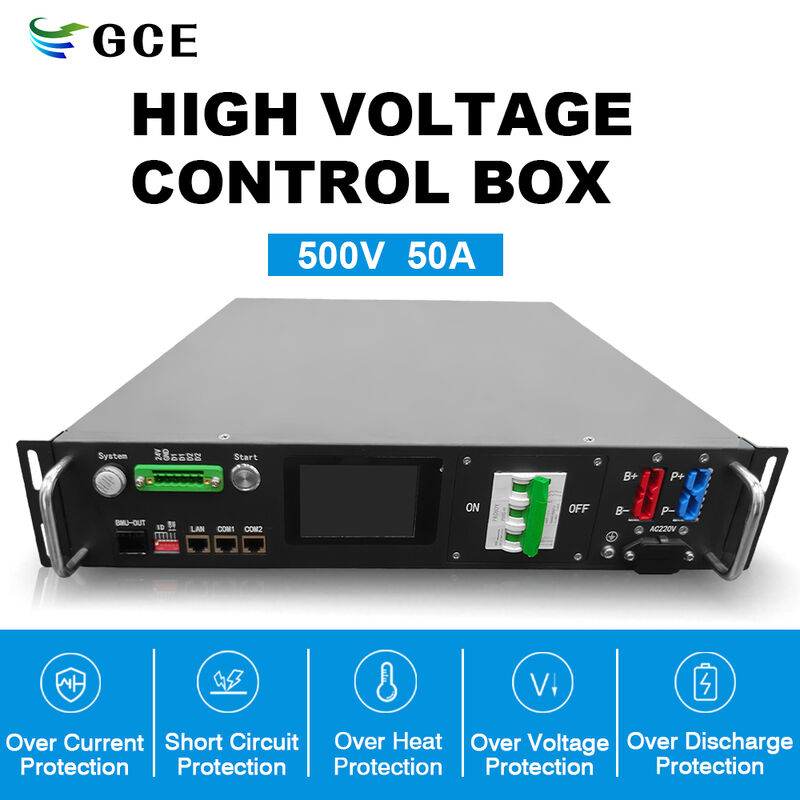

GCE 2U RBMS High-Voltage Rack Battery Management System

50A Rated, 500V Max, Parallel Support & 3-Level Architecture (BMU+RBMS+SBMS) for ESS, UPS & Microgrid

Key Features

High-Power Capacity - Supports 50A rated current with voltage options up to 500VDC, suitable for 10KWh to 2MWh+ projects
Flexible System Architecture - Configurable as 2-level (BMU+RBMS) for standalone or 3-level (BMU+RBMS+SBMS) for multi-cluster parallel operation (up to 8 units)
Robust Protection & Safety - Built-in short-circuit protection (500V/6kA/20ms), pre-charge function, and 2800VDC isolation withstand voltage
Comprehensive Communication - Rich interfaces including CAN, RS485, Ethernet, and dry contacts, compatible with most PCS/UPS and EMS systems
User-Friendly HMI - Integrated 3.5-inch touchscreen display for real-time status monitoring, alarms, and event logs (5,000 records)
Rugged & Rack-Mountable - Standard 19-inch 2U form factor (482*89*500mm), IP20 protection, and low power consumption (≤15W)

Product Detailed Description

GCE 2U RBMS - The Intelligent Core for High-Voltage Energy Storage

The GCE 2U RBMS (Rack Battery Management System) is a high-performance, distributed BMS developed specifically for large-scale high-voltage battery energy storage systems and UPS applications. Designed with a modular and highly configurable architecture, it simplifies assembly, debugging, and maintenance while delivering unmatched reliability.

Advanced System Topology

This RBMS supports a flexible three-level management structure (BMU + RBMS + SBMS). In standalone mode, it operates as a secondary architecture (BMU+RBMS) perfect for 10KWh-100KWh systems. For larger projects, it integrates seamlessly into a tertiary architecture, enabling multi-cluster parallel connections to build battery stacks ranging from 50KWh up to 1000MWh, meeting diverse project requirements from commercial storage to utility-scale power plants.

Precision Control & Comprehensive Protection

Equipped with a high-accuracy current sampling circuit (1% FSR), the RBMS ensures precise charge/discharge management. Its comprehensive protection strategies include:

Short Circuit Protection: Rated at 500V / 6kA / 20ms for extreme safety
Pre-charge Function: Prevents inrush current damage to contactors and PCS capacitors
Thermal Management: Active battery temperature regulation to extend pack service life
Event Logging: Built-in high-capacity memory stores up to 5,000 critical operational records, with optional SD card expansion for historical cell data

Seamless Connectivity & Integration

The RBMS bridges the gap between your battery racks and external systems. It offers:

BMU Communication: CAN port for seamless connection to lower-level BMUs
External Communication: RS485, CAN, and Ethernet ports for PCS, UPS, inverters, and monitoring servers
Parallel Control: Automatic circulation control and parallel/offline management make expanding your storage system effortless (supports up to 8 parallel units)
Dry Contacts: 2 configurable dry contact outputs for external alarm or control signaling

Operational Flexibility

Voltage Grades	Available in 350V (120-350VDC) and 500V (260-500VDC) versions
Start-up Modes	Supports both DC battery start and AC mains trigger (synchronized with PCS/UPS to save battery self-consumption)
User Interface	The embedded 3.5-inch LCD screen provides clear, real-time system status (normal, alarm, protection, charging/discharging, and self-test indicators)

Rugged Design for Demanding Environments

Housed in a standard 19-inch 2U rack-mountable chassis (482×89×500mm), the RBMS is built for durability. It operates reliably in temperatures ranging from -20°C to 60°C and humidity levels of 5%-75% RH. The unit complies with CE standards (IEC62477-1, EN61000-6-2/4) and features 2800VDC isolation withstand voltage, ensuring safety in high-voltage environments.

Typical Applications

PV power plant storage systems
Island/off-grid energy storage
Industrial, commercial, and residential ESS
Microgrid and UPS backup power
Power system 220V DC supplies

Included Accessories (per unit)

Power terminals (GPS50AFP - Blue & Red)
AC socket (250V 10A)
Dry contact terminal (5.08-6Pin)
120Ω terminating resistor

Product specifications are subject to change without notice. Please confirm the latest revision with our sales team before ordering. For 3D drawings, custom firmware adaptation, or technical support, please contact us via cara@hngce.com
