UPS BMS 192S 614V.4V 250A High Voltage Battery Management System Lifepo4 Bms For Battery UPS BESS Solor Power System
BMS Configuration
|
192S 614.4V 250A BMS Configuration
|
|
192S 614.4V 250A High Voltage BMS * 1set 24S BMU * 8sets 24S wire harness * 8sets (24S76.8V battery module, 8 modules in series for 192S 614.4V 250A system)
|
 |
BMS Application
BMS for Energy Storage System(ESS)
BMS for Off-grid / Hibrid Solar Energy Storage
BMS for Data Center
BMS for Wind Energy Storage
BMS for UPS
Specification
|
Product Name
|
High Voltage Bms, UPS BMS |
|
Model no.
|
RBMS07S2-3-250A614.4V
|
|
protecting method
|
MCCB+Contactor
|
|
Rated Current range
|
-250A~250A
|
|
Voltage Range
|
450V-1000V
|
|
Current Sampling Accuracy
|
1.0%FSR
|
|
Communication interface with PCS
|
RS485/CAN
|
|
Communication interface with BMU
|
CAN
|
|
Communication interface with SBMS
|
RS485/CAN |
|
Communication with monitoring software/EMS
|
Ethernet
|
|
Support IAP upgrade
|
Yes
|
|
Support HMI display and parameter
|
Yes(Optional)
|
|
Insulation detection
|
Yes(Optional)
|
|
High voltage power module
|
Support DC start (optional)
|
|
Dry contact output (normally open)
|
Up to 3
|
|
Power
|
24VDC(18~28V)
|
|
Power consumption
|
≤20W
|
|
Size(W*H*D)mm
|
4U (440*133*500)
|
|
Tap center
|
Optional |
|
Net weight
|
22kg
|

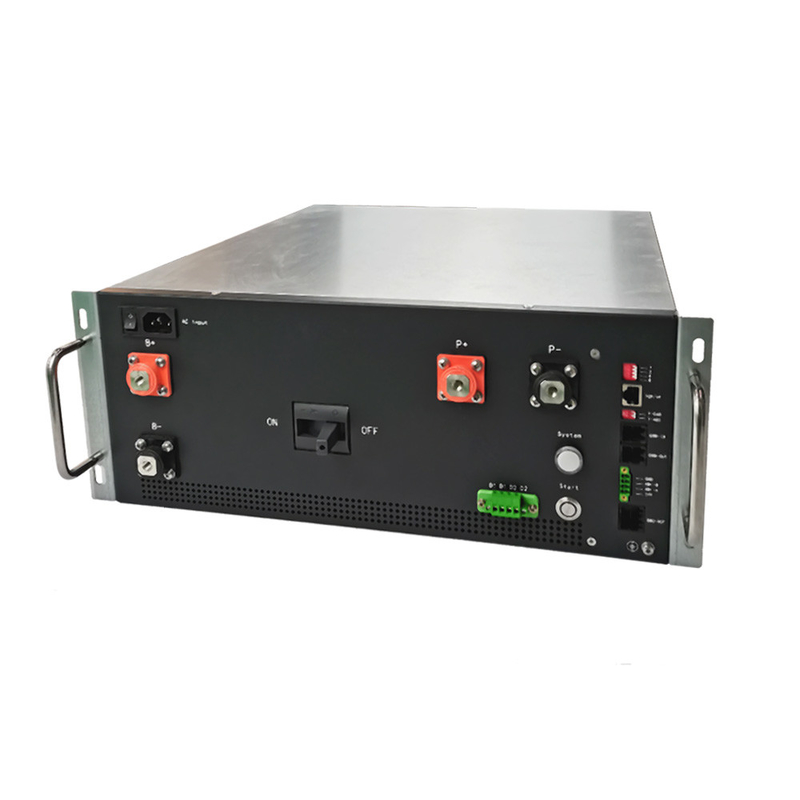

Product Display
Wire Harness for BMS
Single BMS Aplication System Topology
GCE BMS Wiring Diagram for Multiple BMS in Parallel
GCE BMS / High Voltage Battery Management System
2U BMS: 192v-500V, 50A
3U BMS: 192V-600V, 125A / 160A
4U BMS: 192V-1000, 250A
5U BMS: 192V-1000V, 400A / 500A
Our Company
Hunan GCE Technology Co., Ltd. is a high-tech company specializing in the R & D and production of high voltage BMS for UPS, ESS, Solar Energy Storage and etc.
30s to 75s BMS adopts master-slave integrated design and relay solution to meet the lithium battery demand of multiple strings of small capacity batteries. Greatly reduce the use cost of users.
60s-270s adopts master-slave three-level architecture, which can meet the series and parallel requirements of high-capacity single lithium batteries within 1000V.
