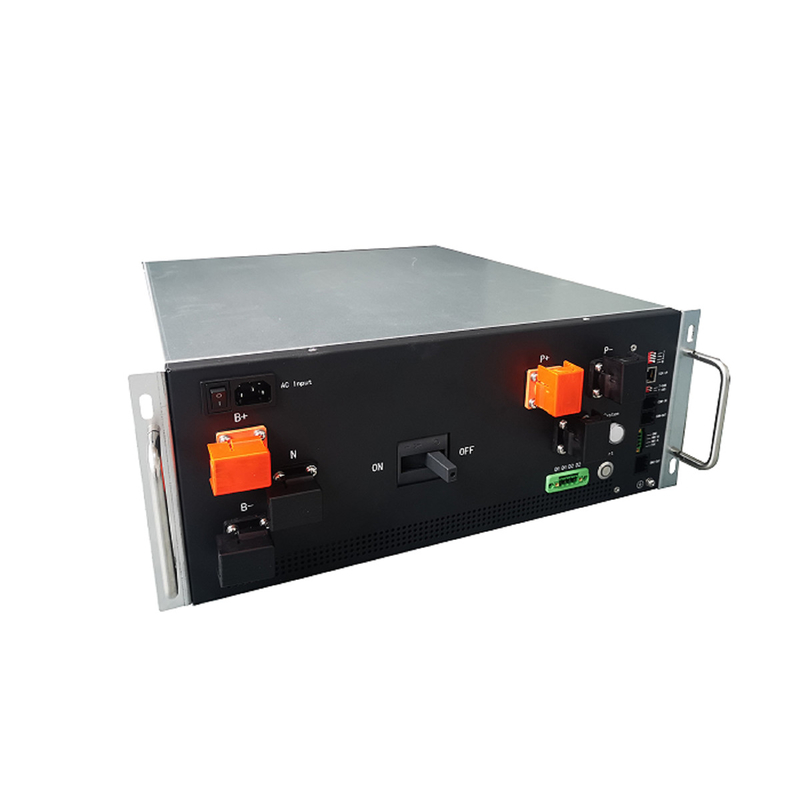

GCE 864V 250A Lifepo4 BMS battery management system Relay HV BMS for Lifepo4 LTO NCM Lithium Batteries Solar Energy System

864V250A DC BMS
Communication protocol:
* Rs485, CAN, LAN(TCP/IP)

* 4U standard 19inch case

* Efficient, stable and reliable

* size:W482*H180*D500mm

GCE Lifepo4 Bms Battery Management System 0




GCE Lifepo4 Bms Battery Management System 1 GCE Lifepo4 Bms Battery Management System 2 GCE Lifepo4 Bms Battery Management System 3

12S-24S BMU(Slave)

12S-24S BMU has 8pcs of temperature sensors, Fan voltage 48V(17S-24S 12V), voltage detection range 0-5V,12V power
supply, consumption less 20mA, CAN2.0 B communication.

Wire harness-

Signal acquisition wire

18 Pin+20Pin wire, standard length is 600mm,900mm,1200mm tempreture sensor wire: standard length is 600mm, 900mm, 1200mm Fan Power wire: 600mm

Wire harness-

communication wire

Communication wire is connecting from the Master BMS to each BMU with a cascade connection, the last port is for terminal resistance




Product Name BMS(Battery Management System)
Model no. RBMS07S2-3-250A864V
protecting method MCCB+Contactor
Rated Current range -250A~250A(Max. 500A)
Voltage Range 96V-1000V
Current Sampling Accuracy 1.0%FSR
Communication interface with PCS RS485/CAN
Communication interface with BMU CAN
Communication interface with SBMS RS485/CAN
Communication with monitoring software/EMS Ethernet
Support IAP upgrade Yes
Support HMI display and parameter No(Optional plugin)
Insulation detection Yes(Optional)
High voltage power module Support DC start (optional)
Dry contact output (normally open) No
Maximum qty of BMUs 20
Power 24VDC(18~28V)
Power consumption ≤20W
Size(W*H*D)mm 4U (440*178*600)
Way out Front
Tap center Support(Optional)
Net weight 28kgs

GCE Lifepo4 Bms Battery Management System 4

GCE Lifepo4 Bms Battery Management System 5

GCE Lifepo4 Bms Battery Management System 6


GCE Lifepo4 Bms Battery Management System 7

GCE Lifepo4 Bms Battery Management System 8



Product Features:


1. Advanced Battery Management System --- The highly integrated battery management
system enables seamless monitoring.
2. perfect self-test and operational status detection, with HMI display, system
operation information at a glance.
3. perfect and reliable system control and protection strategies to fully protect the
battery safety, and extend the life of the battery escort.
4. Modular design, configurable, scalable --- flexible combination of multiple energy
storage units can be expanded to a larger energy storage system, the maximum can support 272 (lead-carbon battery 400) battery
5. Rich communication interface --- multiple RS485, CAN, Ethernet, dry contact input and
output interfaces, support for most of the market with PCS, monitoring server communication.
6. Flexible communication interface protocol --- The company comes with the company's
communication protocol, but also according to customer needs to adapt to PCS of different manufacturers.
7. Capacity is large --- Built-in large-capacity memory chips can store a large number
of key operational data, but also can install an SD card for offline access.

8. PCS has a protocol control function, the choice of circuit breaker version.
9. PCS without protocol control function, the choice of contactor + breaker version.
10. Automatic circulation control and automatic parallel machine off-line control, can be easily parallel batteries. (Model suffix selection D).
