90S 288V 250A High Voltage Master BMS With Relay Contactor Battery Energy Storage System
2
MOQ
negotiable with wenglin@hngce.com
Price
90S 288V 250A High Voltage Master BMS With Relay Contactor Battery Energy Storage System
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: GCE
Certification: CE/RoHS/SGS/MSDS
Model Number: 4U
High Light:

250A Battery Energy Storage System

,

288V Battery Energy Storage System

,

Relay Contactor Master BMS
Payment & Shipping Terms
Packaging Details: Corrugated Carton
Delivery Time: 15-20 days
Supply Ability: 1000 sets/month
Specifications
Features: DC&AC Dual Power Supply
Material: Iron
Model Number: 4U (RBMS07S20-250A288V)
Battery Type: LFP NMC LTO, LFP NMC LTO
Communication Protocol: Rs485, CAN, LAN
Application: Solar Energy Storage Systems, BESS UPS EV
Packaging: Corrugated Carton, Bundles, Pallets, Wooden Box
Carton Size: 770*560*240mm
Product Description
90S 288V 250A High Voltage Master BMS With Relay Contactor Energy Management System

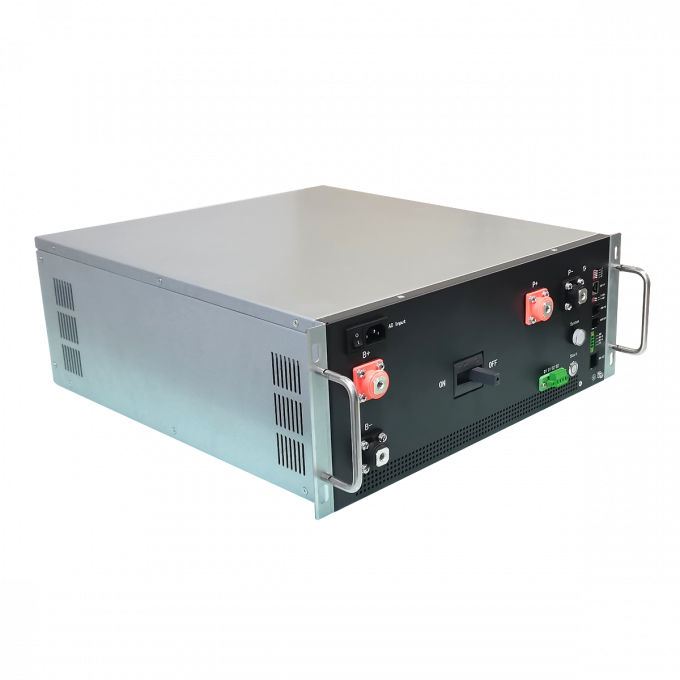

90S 288V 250A High Voltage Master BMS With Relay Contactor Battery Energy Storage System 0
90S 288V 250A High Voltage Master BMS With Relay Contactor Battery Energy Storage System 1

Product Name
4U high voltage BMS
Model no.
RBMS07S2-0-250A288V
protecting method
MCCB+Contactor
Rated Current range
-250A~250A
Voltage Range
144V-288V
Current Sampling Accuracy
1.0%FSR
Communication interface with BMU
RS485/CAN
Communication interface with BMU
CAN
Communication interface with BMU
RS485/CAN
Communication with monitoring software/EMS
Ethernet
Support IAP upgrade
Yes
Support HMI display and parameter
No(Optional plug in)
Insulation detection
Yes(Optional)
High voltage power module
Support DC start (optional)
Dry contact output (normally open)
No
Maximum qty of BMUs
20
Power
24VDC(18~28V)
Power consumption
≤20W
Size(W*H*D)mm
4U (440*178*600)
Way out
Front
Center Tap
Support(Optional)
Net weight
23kg

Model no.: RBMS07S20-250A288V  (4U BMS)

Total 90S (15S*6)

Voltage 256V

Max current 250A

LFP battery, cell:3.2v



1set Master BMS,

6 sets 16S Slave BMU

6 sets 16S Wire Harness

4U standard 19inch case

Efficient, stable, and reliable

Size: 440*178*500mm

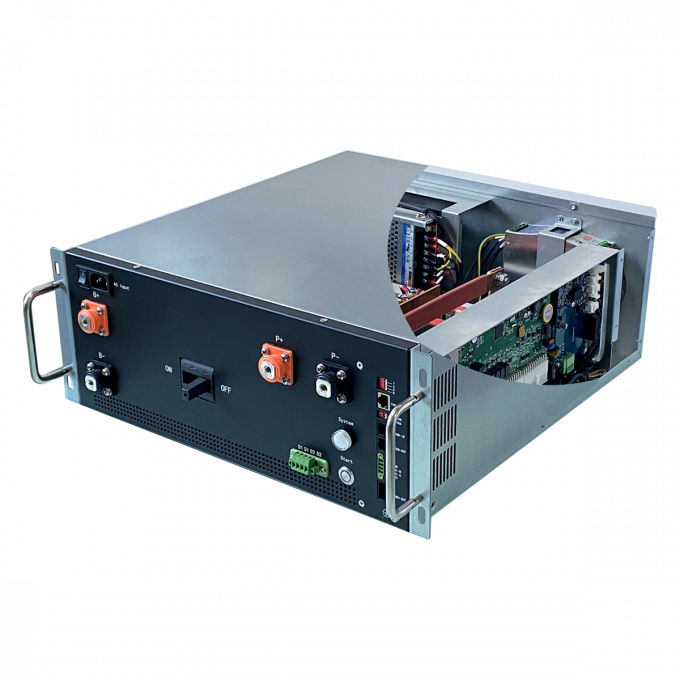

 90S 288V 250A High Voltage Master BMS With Relay Contactor Battery Energy Storage System 2
Application:
A: Island off-grid energy storage
B:opticalstoragechargeintegrationapplications
C: Micro-grid applications
D: UPSpowersupply
E: PowerSystem220VDCpowersupply
F: Railtransit110VDCpowersupply



90S 288V 250A High Voltage Master BMS With Relay Contactor Battery Energy Storage System 3

Accessoires including:

12S-24S BMU(Slave)

12S-24S BMU has 8pcs of tempreture sensors, Fan voltage 48V(17S-24S 12V), voltage detection range 0-5V,12V power supply,consumption less 20mA, CAN2.0 B communication
 90S 288V 250A High Voltage Master BMS With Relay Contactor Battery Energy Storage System 4


Wire harness-Signal acquisition wire

18 Pin+20Pin wire, standard length is 600mm,900mm,1200mmtempreture sensor wire: standard length is 600mm,900mm,1200mm
Fan wire: 600mm
 90S 288V 250A High Voltage Master BMS With Relay Contactor Battery Energy Storage System 5


Wire harness-communication wire

Communication wire is connecting from master BMS to each BMU with cascade connection, the last port is for terminal resistance
 90S 288V 250A High Voltage Master BMS With Relay Contactor Battery Energy Storage System 6



Our Advantage

4S to 24s low voltage software BMS has a wide range of uses, rich product interfaces, strong scalability, and secondary development compatibility; 30s to 75s BMS adopts master-slave integrated design and relay solution to meet the lithium battery demand of multiple strings of small capacity batteries. Greatly reduce the use cost of users; 60s-270s adopts master-slave three-level architecture, which can meet the series and parallel requirements of high-capacity single lithium batteries within 1000V.

By mastering the core technology of BMS and inventing on this basis, our company has developed a variety of lithium battery peripherals to meet the high-quality needs of the market.
90S 288V 250A High Voltage Master BMS With Relay Contactor Battery Energy Storage System 7


Certification  90S 288V 250A High Voltage Master BMS With Relay Contactor Battery Energy Storage System 8
