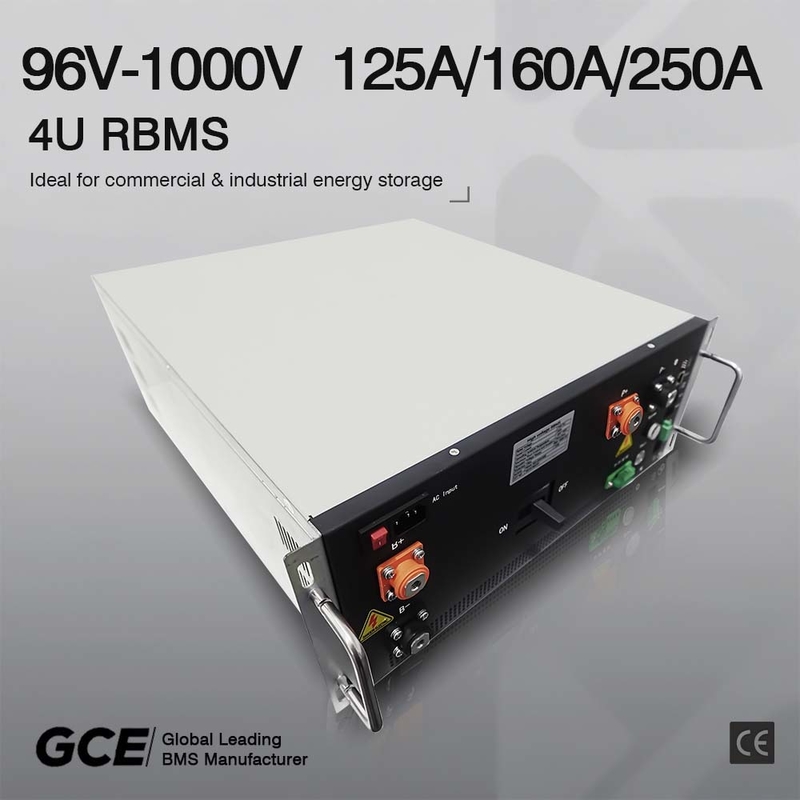

240S 768V 160A BMS Battery Management System For Solar Off Grid BESS
2
MOQ
negotiable
Price
240S 768V 160A BMS Battery Management System For Solar Off Grid BESS
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: CHINA
Brand Name: GCE
Certification: CE UL TUV
Model Number: RBMS07-S20-160A768V
High Light:

160A BMS Battery Management System

,

BESS BMS Battery Management System

,

240S Battery Management System BMS

Payment & Shipping Terms
Packaging Details: Bubble bag, foam, carton
Delivery Time: 20 working days
Payment Terms: T/T, L/C
Specifications
Application: UPS BESS Solar Off Grid ESS Container ESS
Warranty: 3years
Voltage: 768V
Current: 160A
Pack String No.: 240S
Cell Type Applicable: Lifepo4 MNC LTO
Product Description

Lifepo4 BMS 240S 768V 160A BMS for UPS ESS Solar Off-Grid BESS Sistema De Gestion De Bateria





768V160A HV BMS Configuration:



One complete set of HV 240S768V 160A BMS solutions includes:

1set Master BMS, Model#: RBMS07-S20-160A768V

16sets 15S Slave BMU Model#: BMU07-15S8T48F

16sets 15S Wire Harness

Wire harness includes:

Voltage&Temperature acquisition wire,

BMU External Communication Wire with Shenji Port,

The power wire for the Fan.



240S 768V 160A BMS Battery Management System For Solar Off Grid BESS 0



240S 768V 160A BMS Battery Management System For Solar Off Grid BESS 1 240S 768V 160A BMS Battery Management System For Solar Off Grid BESS 2
240S 768V 160A BMS Battery Management System For Solar Off Grid BESS 3 240S 768V 160A BMS Battery Management System For Solar Off Grid BESS 4



Accessories:



240S 768V 160A BMS Battery Management System For Solar Off Grid BESS 5 240S 768V 160A BMS Battery Management System For Solar Off Grid BESS 6 240S 768V 160A BMS Battery Management System For Solar Off Grid BESS 7

12S-24S BMU(Slave)

12S-24S BMU has 8pcs of temperature sensors, Fan voltage 48V(17S-24S 12V), voltage detection range 0-5V,12V power supply, consumption less 20mA, CAN2.0 B communication

Wire harness-

Signal acquisition wire

18 P+20P wire, standard length 600mm,900mm,1200mm temperature sensor wire: standard length: 600mm,900mm,1200mm
Fan Power wire: 600mm

Wire harness-

communication wire

Communication wire is connecting from master BMS to each BMU with cascade connection, the last port is for terminal resistance





Specification:



Product Name BMS(Battery Management System)
Model no. RBMS07-S20-160A768V
protecting method MCCB+Contactor
Rated Current range -250A~250A(Max. 500A)
Voltage Range 96V-1000V
Current Sampling Accuracy 1.0%FSR
Communication interface with PCS RS485/CAN
Communication interface with BMU CAN
Communication interface with SBMS RS485/CAN
Communication with monitoring software/EMS Ethernet
Support IAP upgrade Yes
Support HMI display and parameter No(Optional plugin)
Insulation detection Yes(Optional)
High voltage power module Support DC start (optional)
Dry contact output (normally open) No
Maximum qty of BMUs 20
Power 24VDC(18~28V)
Power consumption ≤20W
Size(W*H*D)mm 4U (440*178*600)
Way out Front
Tap center Support(Optional)
Net weight 28kgs





GCE HV 3-Level BMS Diagram Structure:



240S 768V 160A BMS Battery Management System For Solar Off Grid BESS 8



Applications:



240S 768V 160A BMS Battery Management System For Solar Off Grid BESS 9 240S 768V 160A BMS Battery Management System For Solar Off Grid BESS 10
240S 768V 160A BMS Battery Management System For Solar Off Grid BESS 11 240S 768V 160A BMS Battery Management System For Solar Off Grid BESS 12
240S 768V 160A BMS Battery Management System For Solar Off Grid BESS 13 240S 768V 160A BMS Battery Management System For Solar Off Grid BESS 14





FAQs:

  • Q: Are you a manufacturer or simply a trading company?
    A: We are a manufacturer, and we sincerely welcome you to visit our factory.
  • Q: Can I get some samples?
    A: Yes, a sample order is available for quality checking and market testing.
  • Q: What kind of cells are applicable to this Battery Management System?
    A: LFP, NMC, LTO
  • Q. How about the delivery time?
    A: The lead-time usually takes about 15 to 20 working days accordingly to the specification of your order and quantity.
  • Q. What are your terms of payment?
    A: Advanced T/T is the main payment term, and other payment terms are negotiable. Please contact us, we’ll discuss the details.
  • Q: What are your warranty terms?
    A: We offer a 3-year warranty.
  • Q. Can you produce BMS with customization requirements?
    A: Yes, based on the order quantity, we can make some small adjustments.
  • Q: How does your factory do regarding quality control?
    A: Quality always comes first. All our products go through strict quality control processes from incoming material to the assembling process. Each product will be tested before packing & shipping.
  • Q: What Trade Terms are available?
    A: No limitation on the trade terms. We normally do EXW for orders amounts smaller than 5000USD, and FOB for the rest ones. Moreover, we can send BMSs via DHL&UPS&FEDEX quickly and easily.
