3U 165S 528V 125A Bms Rs485 CAN Communication Battery Storage Management System

2
MOQ
negotiate with：wenglin@hngce.com, WhatsAPP me: +86-15570747076
Price
3U 165S 528V 125A Bms Rs485 CAN Communication Battery Storage Management System
Features Gallery Product Description Request A Quote
Features
Specifications
Features: DC&AC Dual Power Supply
Material: Iron
Model Number: 4U
Battery Type: LFP NMC LTO, LFP NMC LTO
Communication Protocol: Rs485, CAN, LAN
Application: Solar Energy Storage Systems, BESS UPS EV
Packaging: Corrugated Carton, Bundles, Pallets, Wooden Box
Carton Size: 770*560*240mm
High Light:

4U Ev Battery Management System

,

165S ev battery bms

,

ev bms system 528V
Basic Infomation
Place of Origin: China
Brand Name: GCE
Certification: CE/RoHS/SGS/MSDS
Model Number: 3U
Payment & Shipping Terms
Packaging Details: Corrugated Carton
Delivery Time: 15-20 days
Supply Ability: 1000 sets/month
Product Description

165S 528V 125A Lifepo4 Batteries Pack Solar Battery Storage BMS Systems






1. Includes:

1set Master BMS,

11sets 15S Slave BMU

11sets 15S Wire Harness

3U standard 19inch case

Efficient, stable and reliable

Size:W482*H132*D500mm

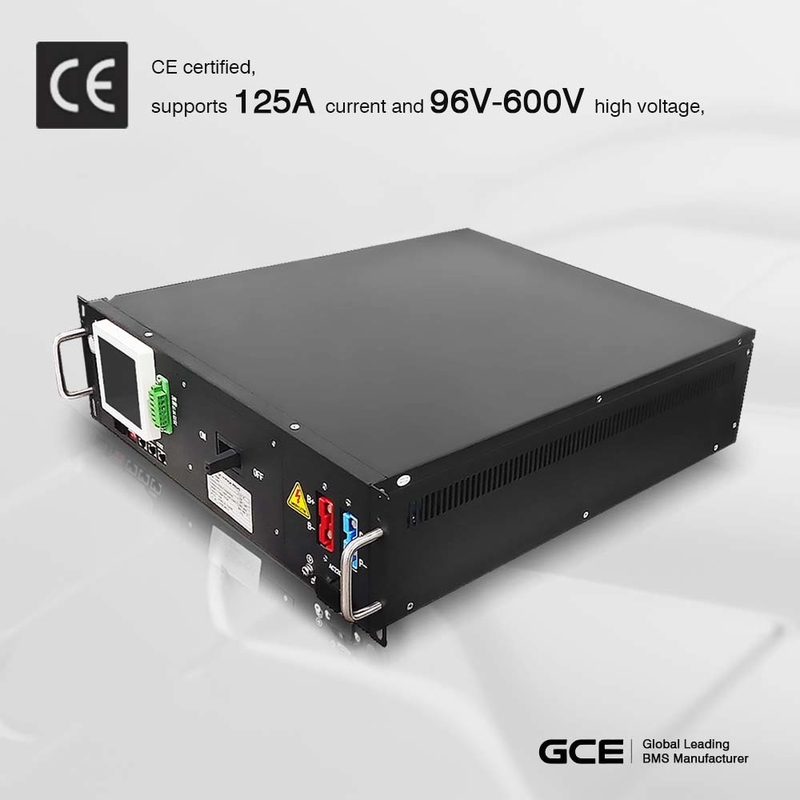

3U 165S 528V 125A Bms Rs485 CAN Communication Battery Storage Management System 0
Quick Details
Place of Origin:
Hunan, China
Brand Name:
GCE
Model Number:
RBMS07S2-3-125A528V
Battery Type:
LFP, LTO, NCM
Warranty:
3 years
Application:
BESS UPS SOLAR BATTERY EV
Type:
DC BMS
Midline:
Optional
Rack configuration:
standalone or Parallel
Features:
DC&AC dual power supply
Display screen:
Optional
Weight:
21.0kg
Current:
125A
Voltage:
528V




3. Flexible communication interface protocol

The company comes with the company
communication protocol, but also according to customer needs to adapt to PCS of different manufacturers.



4. PCS has a protocol control function, the choice of circuit breaker version.



5. Capacity is large

Built-in large-capacity memory chips can store a large number



Specification



Product Name
BMS
Model no.
RBMS07S2-3-125A528V
protecting method
MCCB+Contactor
Rated Current range
-125A~125A
Voltage Range
120V-680V
Current Sampling Accuracy
1.0%FSR
Communication interface with UPS
RS485/CAN
Communication interface with BMU
CAN
Communication interface with SBMS
RS485/CAN
Communication with monitoring software/EMS
Ethernet
Support IAP upgrade
Yes
Support HMI display and parameter
Yes(Optional)
Insulation detection
Yes(Optional)
High voltage power module
Support DC start (optional)
Dry contact output (normally open)
Up to 3
Maximum qty of BMUs
13
Power
24VDC(18~28V)
Power consumption
≤20W
Size(W*H*D)mm
3U(W482*H132*D500mm)
Way out
Front
Mid-line
Not support
Tap center
Not support
Net weight
21kg


More details
3U 165S 528V 125A Bms Rs485 CAN Communication Battery Storage Management System 1
3U 165S 528V 125A Bms Rs485 CAN Communication Battery Storage Management System 2
3U 165S 528V 125A Bms Rs485 CAN Communication Battery Storage Management System 3
3U 165S 528V 125A Bms Rs485 CAN Communication Battery Storage Management System 4


Why choose us?



1. over ten years of BMS solution experience



2. Has worked in the filed for more than eight years each of  engineer

3. Sample order before mass production to ensure your order benefit.

4. Full inspection before shipment tp avoid any risky

5. Flexible payment method facilitates your money management
