GCE 240S 768V 630A relay BMS for lifepo4 NMC LTO battery inverter bms communications bms for solar energy systems UPS ESS

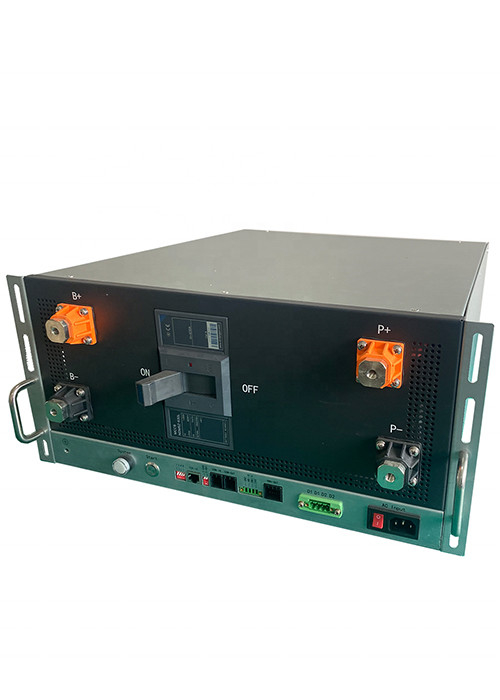

Model:RBMS07S20-768V400A
768V400Amp BMS
Communication protocol: Rs485, CAN, LAN
* 5U standard 19inch case * Efficient, stable and reliable * size:W440*H223*D650mm
BMS Gonfiguration:
1 pcs RBMS master
16 sets of 15S BMU
16 sets of 15S wire harness
(15S48V battery module, 16 modules in series for 240S 768V 400A system)
|
Product Name
|
BMS
|
|
Model no.
|
RBMS07S2-0-400A768V
|
|
protecting method
|
MCCB+Contactor
|
|
Rated Current range
|
-400A~400A
|
|
Voltage Range
|
0V-768V
|
|
Current Sampling Accuracy
|
1.0%FSR
|
|
Communication interface with PCS
|
RS485/CAN
|
|
Communication interface with BMU
|
CAN
|
|
Communication interface with SBMS
|
RS485/CAN
|
|
Communication with monitoring software/EMS
|
Ethernet
|
|
Support IAP upgrade
|
Yes
|
|
Support HMI display and parameter
|
No(Optional plug in)
|
|
Insulation detection
|
Yes(Optional)
|
|
High voltage power module
|
Support DC start (optional)
|
|
Dry contact output (normally open)
|
No
|
|
Maximum qty of BMUs
|
20
|
|
Power
|
24VDC(18~28V)
|
|
Power consumption
|
≤20W
|
|
Size(W*H*D)mm
|
5U (440*178*600)
|
|
Way out
|
Front
|
|
Tap center
|
Support(Optional)
|
|
Net weight
|
42kg
|
