90s 125A 288v Lifepo4 Smart Bms GCE Bms Solution for ups ess bess home solar EV

Product Details

Place of Origin: china

Brand Name: GCE

Model Number: RBMS07S20-400A240V

Payment & Shipping Terms

Minimum Order Quantity: 2

Price: Negotiable

Packaging Details: Corrugated Carton,685*560*200mm

Delivery Time: 8-15 days

Payment Terms: L/C, T/T

Supply Ability: 10000+pcs+1 month

Get Best Price
Highlight:

GCE Bms Solution

,

125A llt smart bms

,

288v llt smart bms

Certification:
CE/RoHS/UN38.3/MSDS
Material:
Iron
Color:
Black
Communication:
CAN, RS485
OEM/ODM:
Acceptable
Warranty:
3 Years
Application:
Solar, Wind, UPS, EV Car,Home Appliances,Boats,Energy Storage System
Product Name:
Battery Management System
Certification:
CE/RoHS/UN38.3/MSDS
Material:
Iron
Color:
Black
Communication:
CAN, RS485
OEM/ODM:
Acceptable
Warranty:
3 Years
Application:
Solar, Wind, UPS, EV Car,Home Appliances,Boats,Energy Storage System
Product Name:
Battery Management System
90s 125A 288v Lifepo4 Smart Bms GCE Bms Solution for ups ess bess home solar EV

High quality smart bms with balancer&thermostat 90s 125A 288v lifepo4 battery bms for Lithium Ion Batteries



How to design a battery management system

GCE integrated circuits and designs help you to layout your Battery Management System. Careful design considerations on charging and discharging processes on battery protection and cell monitoring will support you throughout your design.
GCE‘s solutions and design resources for a battery management system, help you to overcome your design challenges and support your success in developing more efficient, longer-lasting and more reliable battery-powered applications.
From engineers to engineers, our tools will support you every phase of your design, from comparing the different products to simulations, and of course ready to use reference designs.

Why are battery management systems (BMS) needed and how do they work?

Battery management systems (BMS) are electronic control circuits that monitor and regulate the charging and discharge of batteries. The battery characteristics to be monitored include the detection of battery type, voltages, temperature, capacity, state of charge, power consumption, remaining operating time, charging cycles, and some more characteristics.

Specification

Product Name
BMS
Model no.
RBMS07S2-3-125A288V
protecting method
MCCB+Contactor
Rated Current range
-125A~125A
Voltage Range
120V-680V
Current Sampling Accuracy
1.0%FSR
Communication interface with PCS
RS485/CAN
Communication interface with BMU
CAN
Communication interface with SBMS
RS485/CAN
Communication with monitoring software/EMS
Ethernet
Support IAP upgrade
Yes
Support HMI display and parameter
Yes(Optional)
Insulation detection
Yes(Optional)
High voltage power module
Support DC start (optional)
Dry contact output (normally open)
Up to 3
Maximum qty of BMUs
13
Power
24VDC(18~28V)
Power consumption
≤20W
Size(W*H*D)mm
3U (560*200*685)
Way out
Front
Mid-line
Not support
Tap center
Not support
Net weight
15kg





Products Show

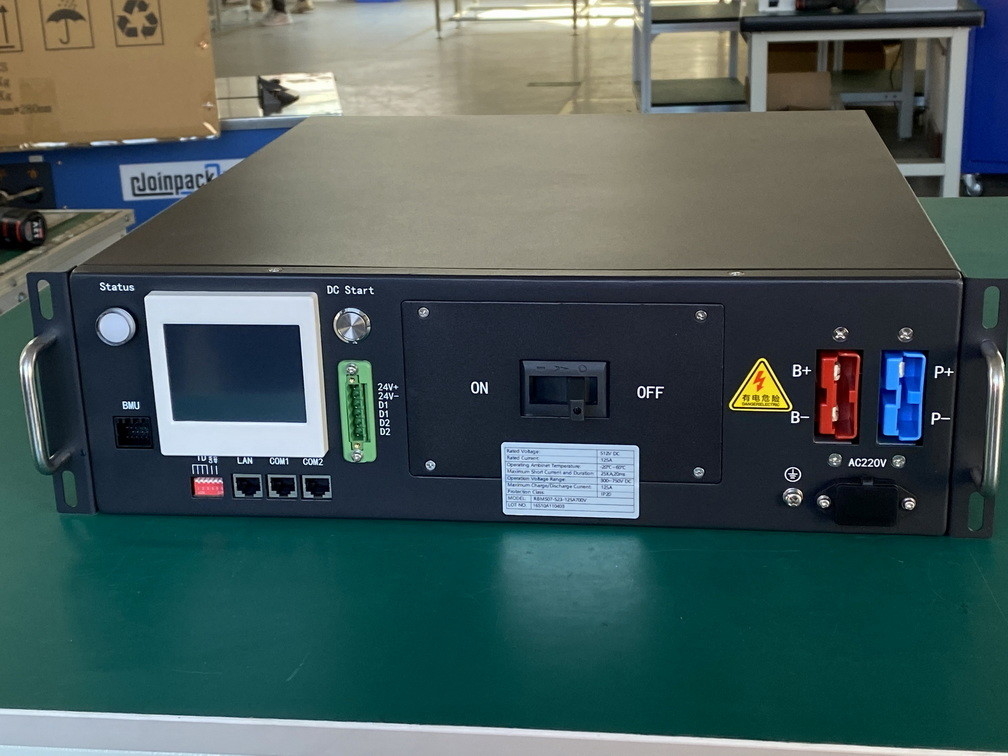

90s 125A 288v Lifepo4 Smart Bms GCE Bms Solution for ups ess bess home solar EV 0


90s 125A 288v Lifepo4 Smart Bms GCE Bms Solution for ups ess bess home solar EV 1

90s 125A 288v Lifepo4 Smart Bms GCE Bms Solution for ups ess bess home solar EV 290s 125A 288v Lifepo4 Smart Bms GCE Bms Solution for ups ess bess home solar EV 390s 125A 288v Lifepo4 Smart Bms GCE Bms Solution for ups ess bess home solar EV 490s 125A 288v Lifepo4 Smart Bms GCE Bms Solution for ups ess bess home solar EV 590s 125A 288v Lifepo4 Smart Bms GCE Bms Solution for ups ess bess home solar EV 6

BMS System Structure

90s 125A 288v Lifepo4 Smart Bms GCE Bms Solution for ups ess bess home solar EV 7

Product Feature

1. Advanced Battery Management System --- The highly integrated battery management
    system enables seamless monitoring.
2. perfect self-test and operational status detection, with HMI display, system
    operation information at a glance.
3. perfect and reliable system control and protection strategies to fully protect the
    battery safety, extend the life of the battery escort.




Explore our GCE graphic below. Find Infineon‘s recommended products for your Battery Management System




 90s 125A 288v Lifepo4 Smart Bms GCE Bms Solution for ups ess bess home solar EV 8



90s 125A 288v Lifepo4 Smart Bms GCE Bms Solution for ups ess bess home solar EV 9
