GCE Master Slave BMS , 195S 624V 250A Lithium Ion Battery Management Systems
2
MOQ
Please contact: ellen@hngce.com
Price
GCE Master Slave BMS , 195S 624V 250A Lithium Ion Battery Management Systems
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: GCE
Certification: CE
Model Number: RBMS07S2-3-250A624V
High Light:

GCE Master Slave BMS

,

624V Lithium Ion Battery Management Systems

,

250A Lithium Ion Battery Management Systems

Payment & Shipping Terms
Packaging Details: Blister & Carton
Delivery Time: 10-15 work days
Payment Terms: T/T, L/C
Supply Ability: 5000sets / Month
Specifications
Product Name: UPS BMS, High Voltage BMS, Smart BMS,LifePO4 BMS, Relay BMS
Warranty: 3 Years
Battery Type: LFP / NMC / LTO
Charge And Discharge Current: 250Amp
Communication: RS485/CAN
Strings: 195S
Touch Screen: 3.5-inch / 7-inch
Application: BESS, Solar Energy, UPS...
Product Description

Lithium Ion 195S 624V 250A High Voltage Lifepo4 Battery BMS GCE Master Slave BMS For UPS ESS






BMS Configuration


195S 624V 250A High Voltage BMS * 1set

15S BMU * 13sets

15S wire harness *13sets

(15S48V battery module,13 modules in series for 195S 624V 250A system)



Application


Battery Energy Storage System(BESS)
Off-grid energy storage
Data Center
Grid frequency modulation energy storage
Track power / traction
LFP UPS power supply



Specification


Product Name
195S 624V 250A high voltage BMS
Model no.
RBMS07S2-3-250A624V
protecting method
MCCB+Contactor
Rated Current range
-250A~250A
Voltage Range
450V-1000V
Current Sampling Accuracy
1.0%FSR
Communication interface with PCS
RS485/CAN
Communication interface with BMU
CAN
Communication interface with SBMS

RS485/CAN

Communication with monitoring software/EMS
Ethernet
Support IAP upgrade
Yes
Support HMI display and parameter
Yes(Optional)
Insulation detection
Yes(Optional)
High voltage power module
Support DC start (optional)
Dry contact output (normally open)
Up to 3
Power
24VDC(18~28V)
Power consumption
≤20W

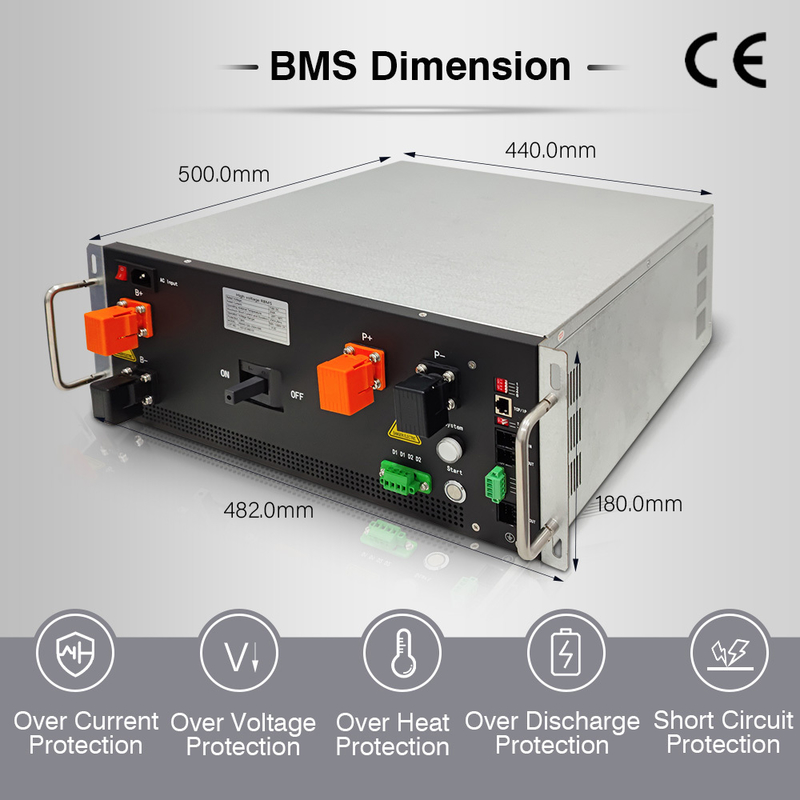

Size(W*H*D)mm
4U (440*133*500)
Tap center
Not support
Net weight
22kg

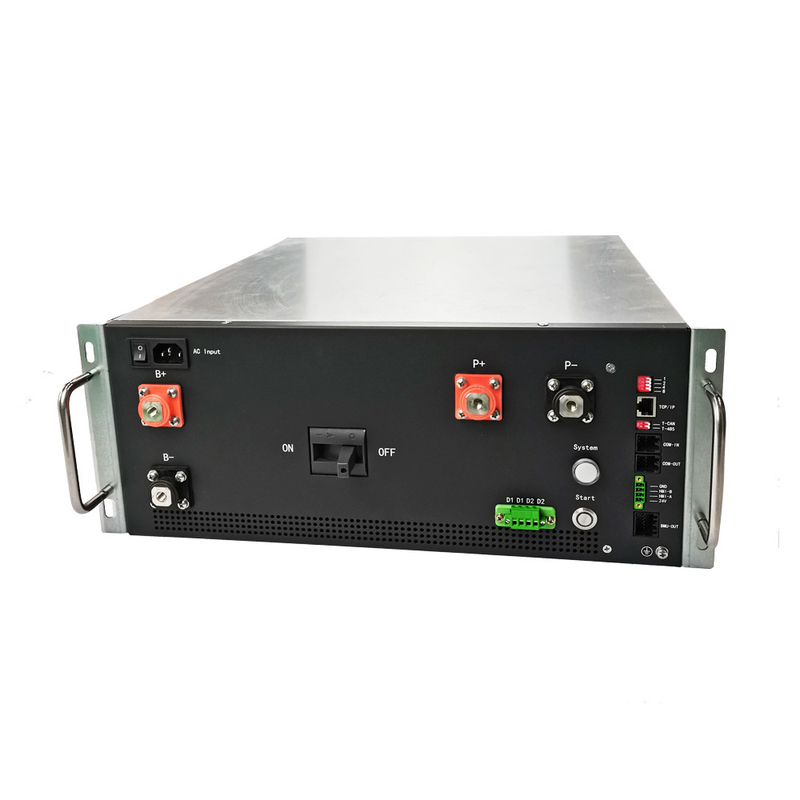

Products Display


GCE Master Slave BMS , 195S 624V 250A Lithium Ion Battery Management Systems 0



GCE Master Slave BMS , 195S 624V 250A Lithium Ion Battery Management Systems 1



GCE Master Slave BMS , 195S 624V 250A Lithium Ion Battery Management Systems 2







GCE Master Slave BMS , 195S 624V 250A Lithium Ion Battery Management Systems 3

Why are battery management systems (BMS) needed and how do they work?


Battery management systems (BMS) are electronic control circuits that monitor and regulate the charging and discharge of batteries. The battery characteristics to be monitored include the detection of battery type, voltages, temperature, capacity, state of charge, power consumption, remaining operating time, charging cycles, and some more characteristics.





FAQ




Q. What is your MOQ?
A: 1pcs.


Q. How long is the lead time?
A: If in stock,ship within 2-3 work days.If out of stock, 12-20 days depending on requirement and quantity.


Q. How is your warranty?
A: 3 years.


Q. What is the difference between smart BMS and non-smart BMS?
A: Smart BMS can be connected PC, RS485, CAN. You can see battery information real time.


Q. What specification of BMS do you have ?
A: 96V-1000V 50A~500A for LFP,NCM.LTO Batteries.

    Integrated BMS: 96V-240V 50A / 100A

    2U BMS: 192V-500V, 50A / 100A

    3U BMS:192V-600V, 125A / 160A

    4U BMS: 192V-1000V, 250A

    5U BMS:  192V-1000V, 400A /500A
