288V 125A Relay BMS 16S HV Master BMS Home Energy Management System

288V 125A Relay HV BMS 3U highly integrated for LFP NCM LTO Battery 0
  • 288V125Amp






Communication protocol:
Rs485, CAN, LAN, dry contact, Modbus

* 3U standard 19inch case

* Efficient, stable and reliable

* size:W482*H132*D500mm



288V 125A Relay HV BMS 3U highly integrated for LFP NCM LTO Battery 1

12S-24S BMU(Slave)

12S-24S BMU has 8pcs of tempreture sensors, Fan voltage 48V(17S-24S 12V), voltage detection range 0-5V,12V power
supply,consumption less 20mA, CAN2.0 B communication
288V 125A Relay HV BMS 3U highly integrated for LFP NCM LTO Battery 2

Wire harness-Signal acquisition wire

18 Pin+20Pin wire, standard length is 600mm,900mm,1200mmtempreture sensor wire: standard length is 600mm,900mm,1200mm
Fan wire: 600mm


288V 125A Relay HV BMS 3U highly integrated for LFP NCM LTO Battery 3

Wire harness-communication wire

Communication wire is connecting from master BMS to each BMU with cascade connection, the last port is for terminal resistance

288V 125A Relay HV BMS 3U highly integrated for LFP NCM LTO Battery 4



  • Advanced Battery Management System --- The highly integrated battery management system enables seamless monitoring.
  •
  • Perfect self-test and operational status detection, with HMI display, system operation information at a glance.
  •
  • Perfect and reliable system control and protection strategies to fully protect the battery safety, extend the life of the battery escort.
  •
  • Modular design, configurable, scalable --- flexible combination of multiple energy storage unit
  •
  • Can be expanded to a larger energy storage system, the maximum can support 272 (lead-carbon battery 400) battery series.
  •
  • Capacity is large --- Built-in large-capacity memory chips can store a large number of key operational data, but also can install an SD card for offline access.
  •
  • PCS has a protocol control function, the choice of circuit breaker version .
  •
  • Rich communication interface --- multiple RS485, CAN, Ethernet, dry contact input and output interfaces, support for most of the market with PCS, monitoring server communication.
  •
  • PCS without protocol control function, the choice of contactor + breaker version.
  •
  • Automatic circulation control and automatic parallel machine off-line control, can be easily Parallel battery. (Model suffix selection D).


3U BMS for ESS

192V-600V, 125A-160A

Support multiple BMS in parallel to achieve larger capacity

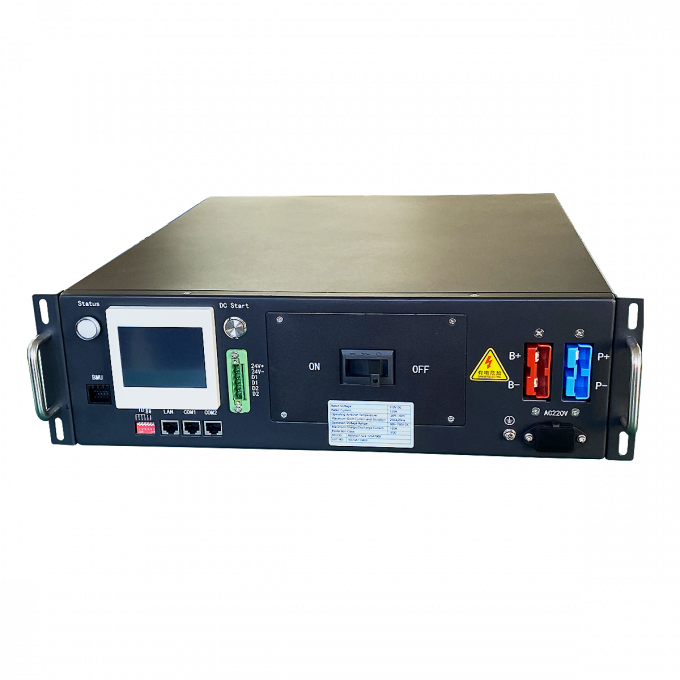

288V 125A Relay HV BMS 3U highly integrated for LFP NCM LTO Battery 5

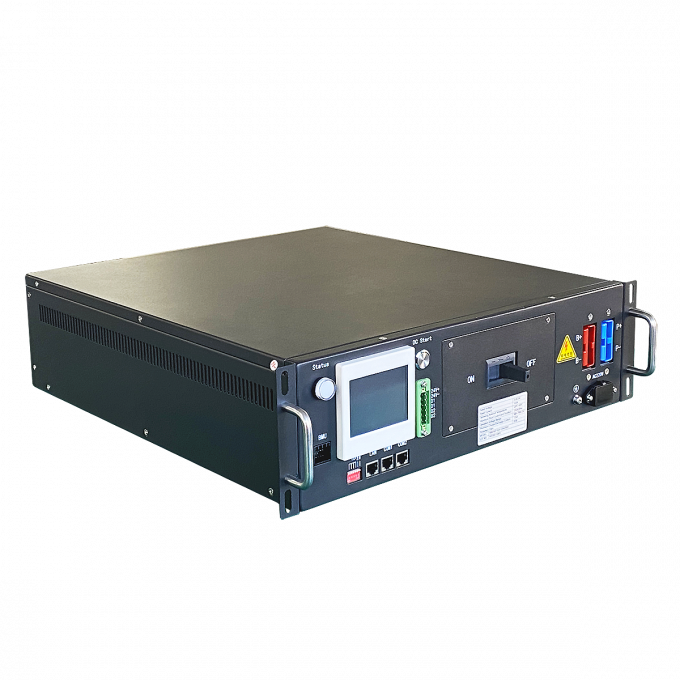

288V 125A Relay HV BMS 3U highly integrated for LFP NCM LTO Battery 6
288V 125A Relay HV BMS 3U highly integrated for LFP NCM LTO Battery 7



Specification
Product Name
BMS
Model no.
RBMS07S2-0-250A288V
protecting method
MCCB+Contactor
Rated Current range
-250A~250A
Voltage Range
144V-288V
Current Sampling Accuracy
1.0%FSR
Communication interface with BMU
RS485/CAN
Communication interface with BMU
CAN
Communication interface with BMU
RS485/CAN
Communication with monitoring software/EMS
Ethernet
Support IAP upgrade
Yes
Support HMI display and parameter
No(Optional plug in)
Insulation detection
Yes(Optional)
High voltage power module
Support DC start (optional)
Dry contact output (normally open)
No
Maximum qty of BMUs
20
Power
24VDC(18~28V)
Power consumption
≤20W
Size(W*H*D)mm
4U (440*178*600)
Way out
Front
Center Tap
Support(Optional)
Net weight
23kg





Safety Precautions

  • Tools for installation and commissioning personnel must be insulated
  • Insulation rubber gloves must be worn during the installation and maintenance. Wear goggles and insulating rubber Boots as the case may be to avoid the possible safety accidents.
  • Installation, commissioning and maintenance of the thread metal generated in the process, such as dropped into the battery, be sure to use an insulating tool to remove, you can not be lingering debris.
  • When maintenance is required, the main circuit breaker of the CBMS must be disconnected to cut off the connection of the battery pack to the PCS DC bus.
  • According to project requirements, parameters such as charge and discharge current and charge and discharge voltage of the battery management system have been set during initial
  • Document number installation and debugging. Parameters may not be changed without authorization. Otherwise, the battery life may be shortened, and more serious battery may be damaged Cause serious harm to safety accidents
  • In case of fire around the energy storage cabinet, be sure to use dry powder fire extinguishers or fire extinguishing sand. Fire extinguishing with liquid may cause electric shock.
  • If the system is not used for a long time, be sure to disconnect the main circuit breaker of the battery cabinet
  • Try to avoid long-term use in the following working environment:
  • Exceeds the temperature or humidity range specified in the specification
  • Strong vibration or vulnerable to impact of the place
  • Direct sunlight or near the heat source of the place
  • Dust, corrosive substances, flammable, high salt spray place



CBMS Sample Drawing Of Standard Produsts
