ESS UPS BMU Backup Battery System BMS 125A 240V high voltage
2
MOQ
Negotiable with jeffreyth@hngce.com
Price
ESS UPS BMU Backup Battery System BMS 125A 240V high voltage
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: GCE
Certification: CE
Model Number: RBMS07S23-125A240V
High Light:

BMU Backup Battery System

,

Backup Battery System 125A

,

power backup system 240V

Payment & Shipping Terms
Packaging Details: Carton packaging
Delivery Time: 15-20days
Specifications
Size: 440mm*130mm*500mm
Weight: 21kg
Voltage: 48V-240V
Current: 125A/ 160A For 10s
Comnunication: RS485 CAN TCPIP
Product Description

Hunan GCE 240V 125A RBMS and BMU high voltage BMS overall solution for ESS UPS back up power



GCE Company Introduction:

Hunan Group Control Energy Technology Co., Ltd.(GCE) is a high-tech company specializing in the research and development of BMS and lithium battery peripheral equipment. The high-performance intelligent lithium battery management system produced by our company adopts the international leading technology, which greatly improves the battery management efficiency and prolongs the service life of lithium battery. The advanced BMS control strategy avoids the difficulties and instability faced by most competitors for our BMS.

4S to 24s low voltage software BMS has a wide range of uses, rich product interfaces, strong scalability and secondary development compatibility; 30s to 75s BMS adopts master-slave integrated design and relay solution to meet the lithium battery demand of multiple strings of small capacity batteries. Greatly reduce the use cost of users; 60s-270s adopts master-slave three-level architecture, which can meet the series and parallel requirements of high-capacity single lithium batteries within 1000V.



GCE High-Voltage BMS provides cell- and stack-level control for battery stacks up to 1000 VDC. One Stack Switchgear unit manages each stack and connects it to the DC bus of the energy storage system. Cell Interface modules in each stack connect directly to battery cells to measure cell voltages and temperatures and provide cell balancing. The UL 1973 Recognized BMS modules in each stack ensure safe battery operation and significantly reduce the effort of pursuing UL 1973 and UL 9540 certification of the energy storage solution.



By mastering the core technology of BMS and inventing on this basis, our company has developed a variety of lithium battery peripherals to meet the high-quality needs of the market.



ESS UPS BMU Backup Battery System BMS 125A 240V high voltage 0

Products Introduction:

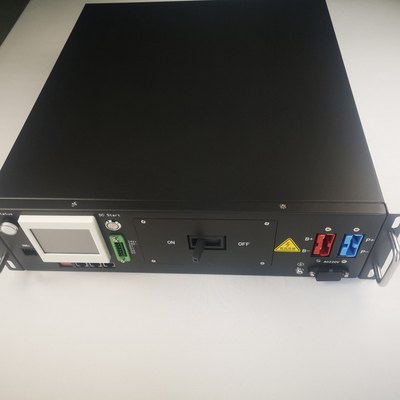

RBMS(master BMS) 3U-125A
protecting method MCCB+Contactor
Rated Current range -125A~125A
Voltage range 120V-240V
Current sampling accuracy 1.0%FSR
Communication interface with PCS RS485/CAN
Communication interface with BMU CAN
Communication interface with GBMS RS485/CAN
Communication with monitoring software/EMS Ethernet
Support IAP upgrade Yes
Support HMI display and parameter settings Yes(Optional)
Insulation detection Yes(Optional)
High voltage power module Support DC start (optional)
Dry contact output (normally open) Up to 3
Maximum qty of BMUs 13
Power 24VDC(18~28V)
Power consumption ≤20W
Size (W*H*D)mm 3U
(440*130*500)
Way out Back and front
Tap center not support
net weight 21kg



High voltage BMS Application:

ESS UPS BMU Backup Battery System BMS 125A 240V high voltage 1



GCE BMS Products:

ESS UPS BMU Backup Battery System BMS 125A 240V high voltage 2

ESS UPS BMU Backup Battery System BMS 125A 240V high voltage 3

ESS UPS BMU Backup Battery System BMS 125A 240V high voltage 4

ESS UPS BMU Backup Battery System BMS 125A 240V high voltage 5

ESS UPS BMU Backup Battery System BMS 125A 240V high voltage 6

ESS UPS BMU Backup Battery System BMS 125A 240V high voltage 7
