GCE 480V 250A BMS Solution , 4U Master Slave Battery Management System
2
MOQ
Negotiable with jeffreyth@hngce.com
Price
GCE 480V 250A BMS Solution , 4U Master Slave Battery Management System
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: GCE
Certification: CE
Model Number: RBMS07S20-250A480V
High Light:

250A BMS Solution

,

480V BMS Solution

,

4U Master Slave Battery Management System

Payment & Shipping Terms
Packaging Details: Carton packaging
Delivery Time: 20-25days
Supply Ability: 1000pcs per month
Specifications
Size: 440mm*178mm*500mm
Weight: 28kg
Voltage: 48V-480V
Current: 250A/ 275A For 10s
Comnunication: RS485 CAN TCPIP
HMI Display: External Connection (optional)
Insulation Detection: For Minimum 300V Systems
Tempreture: -20℃~60℃
Power Consumption: ≤25W Sleeping Mode
Product Description

GCE 480V 250A 4U RBMS master slave relay high voltage BMS smart passive balancing BMS for ESS solar energy


GCE high voltage BMS introduction:




Hunan Group Control Energy Technology Co., Ltd.(GCE) is a high-tech company specializing in the research and development of BMS and lithium battery peripheral equipment. The high-performance intelligent lithium battery management system produced by our company adopts the international leading technology, which greatly improves the battery management efficiency and prolongs the service life of lithium battery. The advanced BMS control strategy avoids the difficulties and instability faced by most competitors for our BMS.



GCE high voltage BMS is an intelligent overall solution. We can connect battery modules with different types of strings in series to higher voltage systems, GCE BMS will assign addresses to each connected battery module, and if a cell is damaged, we can easily Find and replace it. Multiple battery clusters can also be assigned addresses through DIP switches. We allow 8 battery clusters to be connected in parallel. Of course, you can also connect more battery clusters in parallel to meet your MWh energy storage needs. But our suggestion is that you can use every 8 battery clusters as a battery bank and have N battery banks in parallel. Our BMU can be divided into 8 series, 12-16 series, 17-24 series of three specifications of PCB. In this way, you can meet the average distribution of your various total strings of batteries.

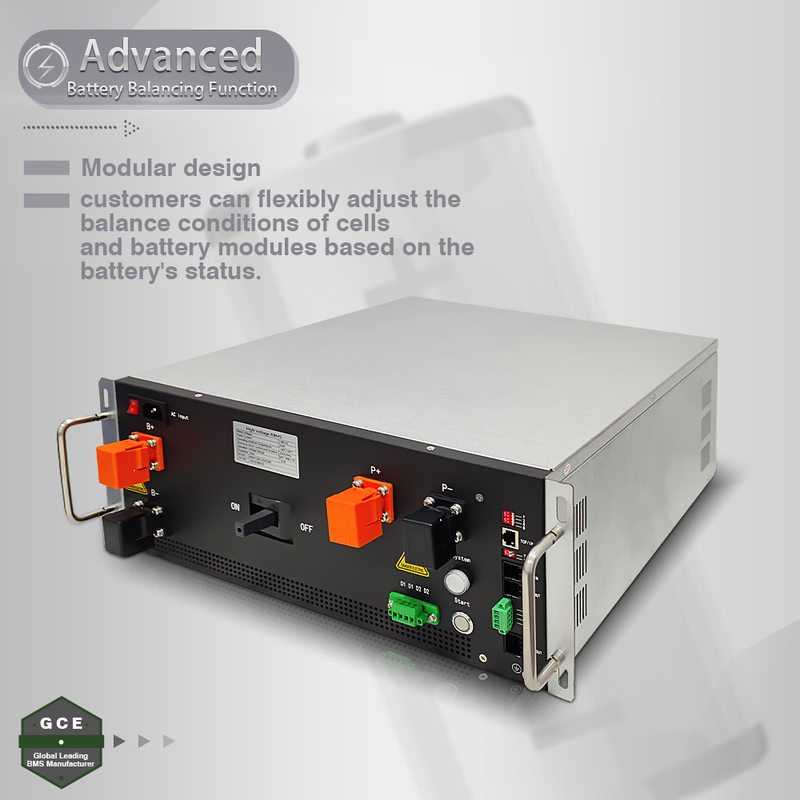

GCE 480V 250A BMS Solution , 4U Master Slave Battery Management System 0



GCE 480V 250A BMS Solution , 4U Master Slave Battery Management System 1

GCE high voltage BMS diagram/structure:

GCE 480V 250A BMS Solution , 4U Master Slave Battery Management System 2



GCE high voltage BMS application:




Ideal for energy storage backup power applications where high performance and high reliability are key to successful integration:
• Commercial bus & transportation
• BESS/ UPS/solar/EV
• Medium and heavy duty trucks
• ISO and sub-ISO marine
• High performance / high voltage apps
• Industrial equipment
• Light rail



GCE high voltage BMS Advange:


  1. overall solution for customers easy to opperate
  2. modular design improve work efficiency for battery system
  3. perfect battery management control logic strategy.
  4. high quality control for every producing link.
  5. OEM/ODM to meet bulk orders various requirement.
  6. 7X24 hours technical supporting
  7. Rich interfaces meet the higher requirements of seamless connection between customer systems.

GCE 480V 250A BMS Solution , 4U Master Slave Battery Management System 3



GCE High voltage BMS features:


  1.  Multi-string management – for large scale systems of parallel battery strings
  2.  Battery system performance algorithms (SOC, SOHc,SOHr, power available, optimal charging)
  3.  High voltage interlock loop monitoring and control
  4.  Isolation resistance measurement
  5.  Battery usage recorder
  6.  Functional safety features protected by SafeRTOS
  7.  Telematics – data collection
  8. Advanced battery management system
  9. Perfect self-checking and running status checking function
  10. Complete and reliable system control and protection strategies
  11. built-in large-capacity memory chip can store a large amount of key operating data, maximum 5000pcs

GCE high voltage BMS technical parameters:

RBMS(master BMS) 4U-125A/160A/250A
protecting method MCCB+Contactor
Rated Current range -250A~250A
Voltage range 384V-1000V
Current sampling accuracy 1.0%FSR
Communication interface with PCS RS485/CAN
Communication interface with BMU CAN
Communication interface with GBMS RS485/CAN
Communication with monitoring software/EMS Ethernet
Support IAP upgrade Yes
Support HMI display and parameter settings No(OptionalPlug in)
Insulation detection Yes(Optional)
High voltage power module Support DC start (optional)
Dry contact output (normally open) None
Maximum qty of BMUs 18
Power 24VDC(18~28V)
Power consumption ≤25W
Size (W*H*D)mm 4U
(440*178*500)
Connection Way out Back and front
Tap center support(optional)
net weight 23kg



GCE high voltage BMS pictures and system installed:



GCE 480V 250A BMS Solution , 4U Master Slave Battery Management System 4

GCE 480V 250A BMS Solution , 4U Master Slave Battery Management System 5

GCE 480V 250A BMS Solution , 4U Master Slave Battery Management System 6

GCE 480V 250A BMS Solution , 4U Master Slave Battery Management System 7
