GCE 768V 250A 4s LFP BMS 4U High Voltage For Power Solution

Product Details

Place of Origin: China

Brand Name: GCE

Certification: CE

Model Number: RBMS07S20-250A768V

Payment & Shipping Terms

Minimum Order Quantity: 2

Price: Negotiable with jeffreyth@hngce.com

Packaging Details: Carton packaging

Delivery Time: 20-25days

Supply Ability: 1000pcs per month

Get Best Price
Highlight:

250A 4s LFP BMS

,

768V 4s LFP BMS

Size:
440mm*178mm*500mm
Weight:
28kg
Voltage:
48V-768V
Current:
250A/ 275A For 10s
Tempreture:
-20℃~60℃
HMI Display:
External Connection (optional)
Insulation Detection:
For Minimum 300V Systems
Power Consumption:
≤25W Sleeping Mode
Comnunication:
RS485 CAN TCPIP
Size:
440mm*178mm*500mm
Weight:
28kg
Voltage:
48V-768V
Current:
250A/ 275A For 10s
Tempreture:
-20℃~60℃
HMI Display:
External Connection (optional)
Insulation Detection:
For Minimum 300V Systems
Power Consumption:
≤25W Sleeping Mode
Comnunication:
RS485 CAN TCPIP
GCE 768V 250A 4s LFP BMS 4U High Voltage For Power Solution

GCE 768V 250A original manufacture 4U high voltage BMS LFP NMC LTO battery packs lithium BMS for power solution

This is our the 4th generation high voltage bms.It's an overall bms solution, that is to say,You don't need professional technology to install our high-voltage BMS to form a complete battery system.

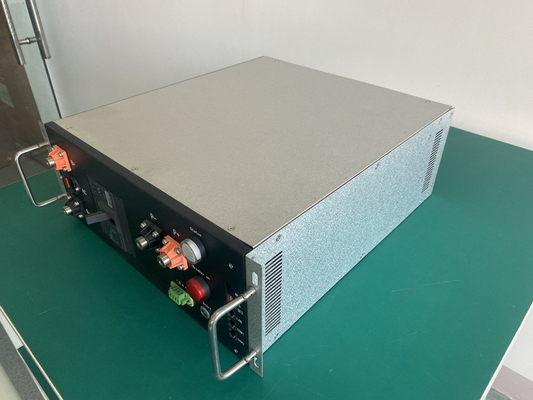

GCE 768V 250A 4s LFP BMS 4U High Voltage For Power Solution 0

GCE 768V 250A 4s LFP BMS 4U High Voltage For Power Solution 1



GCE high voltage BMS structure:

GCE 768V 250A 4s LFP BMS 4U High Voltage For Power Solution 2



GCE high voltage BMS parameters:



RBMS(master BMS) 4U-250A
protecting method MCCB+Contactor
Rated Current range -250A~250A
Voltage range 384V-1000V
Current sampling accuracy 1.0%FSR
Communication interface with PCS RS485/CAN
Communication interface with BMU CAN
Communication interface with GBMS RS485/CAN
Communication with monitoring software/EMS Ethernet
Support IAP upgrade Yes
Support HMI display and parameter settings No(OptionalPlug in)
Insulation detection Yes(Optional)
High voltage power module Support DC start (optional)
Dry contact output (normally open) None
Maximum qty of BMUs 18
Power 24VDC(18~28V)
Power consumption ≤25W
Size (W*H*D)mm 4U
(440*178*600)
Connection Way out Back and front
Tap center support(optional)
net weight 23kg
