3 Level Structure Relay BMS Solar Battery Management System 480V DC 63A
2
MOQ
negotiate with:wenglin@hngce.com, WhatsAPP me: +86-15570747076
Price
3 Level Structure Relay BMS Solar Battery Management System 480V DC 63A
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: GCE
Certification: CE/RoHS/SGS/MSDS
Model Number: 3U
High Light:

Relay BMS 480V

,

3 Level Structure Relay BMS

,

63A BMS Battery Management System

Payment & Shipping Terms
Packaging Details: Corrugated Carton
Delivery Time: 15-20 days
Supply Ability: 1000 sets/month
Specifications
Model: RBMS07S2-3-125A288V)
BMS Type: 3U BMS
Maximum Qty Of BMUs: 13
Power: 24VDC(18~28V)
Communication Protocol: Rs485, CAN, LAN

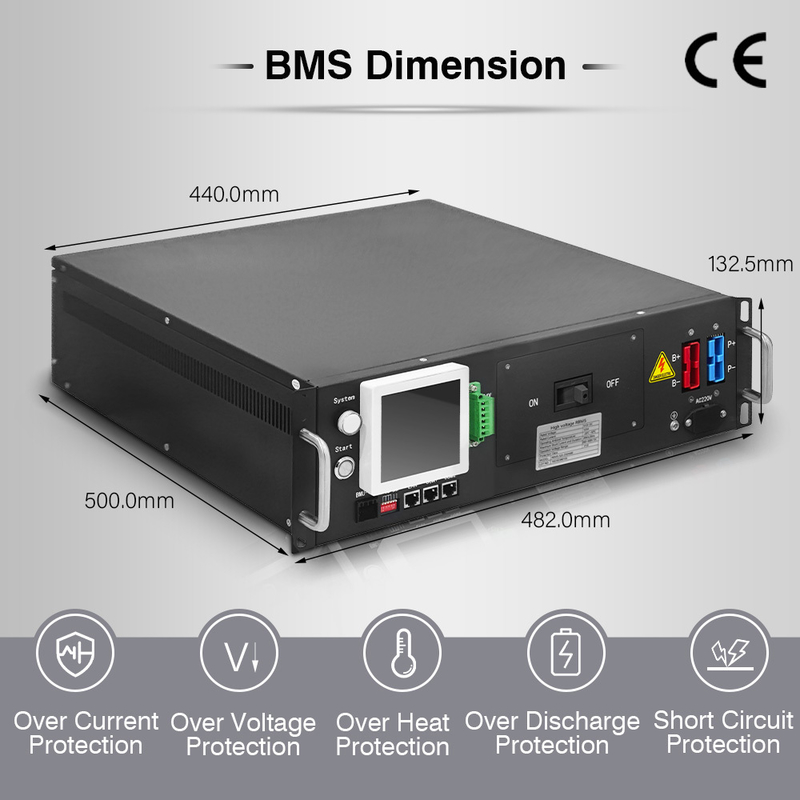

Size(W*H*D)mm: 3U (482*132*500mm)
MOQ: 1pc Sample Accepted
Package Weight: 15kgs
Product Description

Relay Solution Solar Battery Management System 480V DC 63A 3 Level Structure High Voltage BMS Lifepo4



Quick Details
Place of Origin:China
Application:Solar Energy Storage Systems, Energy Storage
Brand Name:GCE
Model Number:3U
Product name:BMS
Model:3U
Voltage:480V
Battery type:LFP, NCM, LTO...
Rack configuration:standalone or Parallel
Current:63A
Features:DC&AC dual power supply
Weight:21kg
Design:Master BMS



3 Level Structure Relay BMS Solar Battery Management System 480V DC 63A 0

Advanced Battery Management System --- The highly integrated battery management system enables seamless monitoring.

Perfect self-test and operational status detection, with HMI display, system operation information at a glance.

Perfect and reliable system control and protection strategies to fully protect the battery safety, extend the life of the battery escort.



3 Level Structure Relay BMS Solar Battery Management System 480V DC 63A 1

Modular design, configurable, scalable --- flexible combination of multiple energy storage unit

Can be expanded to a larger energy storage system, the maximum can support 272 (lead-carbon battery 400) battery series.

Rich communication interface --- multiple RS485, CAN, Ethernet, dry contact input and output interfaces, support for most of the market with PCS, monitoring server communication.

Capacity is large --- Built-in large-capacity memory chips can store a large number of key operational data, but also can install an SD card for offline access.

3 Level Structure Relay BMS Solar Battery Management System 480V DC 63A 2

PCS has a protocol control function, the choice of circuit breaker version .

PCS without protocol control function, the choice of contactor + breaker version.

Automatic circulation control and automatic parallel machine off-line control, can be easily

Parallel battery. (Model suffix selection D).

3 Level Structure Relay BMS Solar Battery Management System 480V DC 63A 3

Specification


item value
Place of Origin China
  Hunan
Application Solar Energy Storage Systems
Brand Name GCE
Model no. RBMS07-S23-125A336V
protecting method MCCB+Contactor
Rated Current range -125A~125A
Voltage Range 120V-336V
Current Sampling Accuracy 1.0%FSR
Communication interface with UPS RS485/CAN
Communication interface with BMU CAN
Communication interface with SBMS Communication interface with SBMS
Communication with monitoring software/EMS Ethernet
Support IAP upgrade Yes
Support HMI display and parameter Yes(Optional)
Insulation detection Yes(Optional)
High voltage power module Support DC start (optional)
Dry contact output (normally open) Up to 3
Maximum qty of BMUs 13
Power 24VDC(18~28V)
Power consumption ≤15W
Size(W*H*D)mm 3U (482*132*500mm)
Way out Front
Mid-line Not support
Tap center Not support
Net weight 15kg





Our comapny



We are a company with many years experience in Battery Management Systems, making them work for our customers, ensuring that their systems are operating with greater efficiency and therefore benefit from optimum energy performance and increased comfort levels.

We utilise intelligent programming and our skilled engineering team are trained to understand how to achieve this.


No separate energy monitoring system or complex interface required.


BMS staff are very knowledgeable and approachable and can diagnose problems quickly. They are very professional in communication issues to us and our clients.





3 Level Structure Relay BMS Solar Battery Management System 480V DC 63A 4



3 Level Structure Relay BMS Solar Battery Management System 480V DC 63A 5
