4U BMS Master Slave 105S 336V 250A High Voltage Energy Storage Solutions Power Factor Correction

Product Details

Place of Origin: China

Brand Name: GCE

Certification: CE/RoHS/SGS/MSDS

Model Number: 4U

Payment & Shipping Terms

Minimum Order Quantity: 2

Price: negotiate with：wenglin@hngce.com, WhatsAPP me: +86-15570747076

Packaging Details: Corrugated Carton

Delivery Time: 15-20 days

Supply Ability: 1000 sets/month

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                    4U BMS Master Slave, BMS Master Slave 105S, master slave bms 336V


Model:	RBMS07S20-250A336V	BMS Type:	4U BMS
Maximum Qty Of BMUs:	20	Power:	24VDC(18~28V)
Communication Protocol:	Rs485, CAN, LAN	Rated Current Range:	-250A~250A
Voltage Range:	144V-336V	Package Weight:	23kgs

Model:	RBMS07S20-250A336V
BMS Type:	4U BMS
Maximum Qty Of BMUs:	20
Power:	24VDC(18~28V)
Communication Protocol:	Rs485, CAN, LAN
Rated Current Range:	-250A~250A
Voltage Range:	144V-336V
Package Weight:	23kgs

4U BMS Master Slave 105S 336V 250A High Voltage Energy Storage Solutions Power Factor Correction

GCE 105S 336V 250A High Voltage Master BMS Energy Storage Solutions Power Factor Correction

- 336V250Amp

Communication protocol:
Rs485, CAN, LAN,dry contact

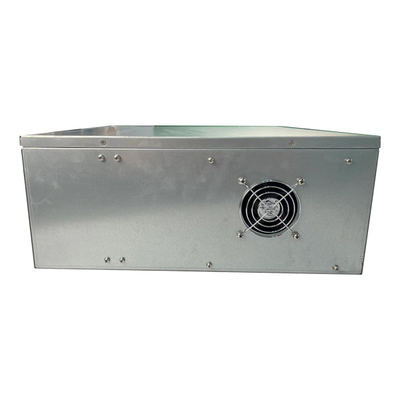

* 4U standard 19inch case * Efficient, stable and reliable * size:W440*H178*D500mm

Model Number:RBMS07S20-250A336V

Battery Type:LFP
Product name:high voltage BMS(HV BMS)
communication:Rs485/CAN/LAN
Voltage:336V
Current:-250~250A
racks in parallel:yes
touch screen:optional
Insulation:optional
Dry contact:yes
center tap:no
Application:BESS/UPS

Application Scenario

PV power plant storage
Island off-grid energy storage
optical storage charge integration applications
Micro-grid applications
UPS power supply
Power System 220V DC power supply
Rail transit 110V DC power supply

4U BMS Master Slave 105S 336V 250A High Voltage Energy Storage Solutions Power Factor Correction 2

Rich communication interface --- multiple RS485, CAN, Ethernet, dry contact input and
output interfaces, support for most of the market with PCS, monitoring server communication.

4U BMS Master Slave 105S 336V 250A High Voltage Energy Storage Solutions Power Factor Correction 3

Modular design, configurable, scalable --- flexible combination of multiple energy storage units can be expanded to a larger energy storage system, the maximum can support 272 (lead-carbon battery 400) battery series.

4U BMS Master Slave 105S 336V 250A High Voltage Energy Storage Solutions Power Factor Correction 4

4U BMS Master Slave 105S 336V 250A High Voltage Energy Storage Solutions Power Factor Correction 5

Specification

item	value
Place of Origin	China
	Hunan
Application	Solar Energy Storage Systems
Brand Name	GCE
Model no.	RBMS07-S23-125A336V
protecting method	MCCB+Contactor
Rated Current range	-125A~125A
Voltage Range	120V-336V
Current Sampling Accuracy	1.0%FSR
Communication interface with UPS	RS485/CAN
Communication interface with BMU	CAN
Communication interface with SBMS	Communication interface with SBMS
Communication with monitoring software/EMS	Ethernet
Support IAP upgrade	Yes
Support HMI display and parameter	Yes(Optional)
Insulation detection	Yes(Optional)
High voltage power module	Support DC start (optional)
Dry contact output (normally open)	Up to 3
Maximum qty of BMUs	13
Power	24VDC(18~28V)
Power consumption	≤15W
Size(WHD)mm	3U (482132500mm)
Way out	Front
Mid-line	Not support
Tap center	Not support
Net weight	15kg

Our comapny

Hunan Group Control Energy Technology Co., Ltd.(GCE) is a high-tech company specializing in the research and development of BMS and lithium battery peripheral equipment. The high-performance intelligent lithium battery management system produced by our company adopts the international leading technology, which greatly improves the battery management efficiency and prolongs the service life of lithium battery. The advanced BMS control strategy avoids the difficulties and instability faced by most competitors for our BMS.

4S to 24s low voltage software BMS has a wide range of uses, rich product interfaces, strong scalability and secondary development compatibility; 30s to 75s BMS adopts master-slave integrated design and relay solution to meet the lithium battery demand of multiple strings of small capacity batteries. Greatly reduce the use cost of users; 60s-270s adopts master-slave three-level architecture, which can meet the series and parallel requirements of high-capacity single lithium batteries within 1000V.
