Lifepo4 UPS BMS 384V 63A 120S HV RS485 TCP/IP Communication
2
MOQ
negotiable with wenglin@hngce.com
Price
Lifepo4 UPS BMS 384V 63A 120S HV RS485 TCP/IP Communication
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: GCE
Certification: CE/RoHS/SGS/MSDS
Model Number: 4U
High Light:

UPS BMS 384V

,

UPS BMS 63A

,

bms rs485 protocol 120S

Payment & Shipping Terms
Packaging Details: Corrugated Carton
Delivery Time: 15-20 days
Supply Ability: 1000 sets/month
Specifications
Model: RBMS07S3-0-63A384V
BMS Type: 4U BMS
Maximum Qty Of BMUs: 20
Input Voltage: +/- 192V(384v)
Communication Protocol: Rs485, CAN, LAN
Phase: Three Phase
Current: 63Amp-630Amp
Single Package Size: 77X56X24 Cm
Product Description

UPS 384V 63A 120S HV Lifepo4 BMS Building Energy Management System





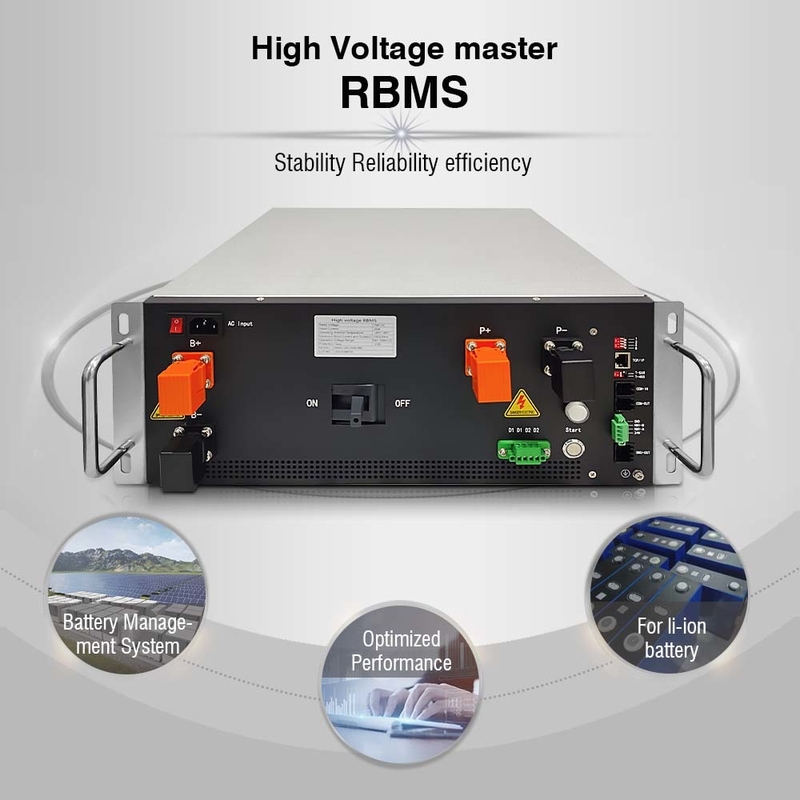

Lifepo4 UPS BMS 384V 63A 120S HV RS485 TCP/IP Communication 0

Model Number: RBMS07S3-0-63A384V



Phase: Three Phase

Protection: Short Circuit

Weight: 25kg

Type: BMS

Application: UPS/BESS

Product name: Lithium UPS BMS

Appplication: UPS with center tap

Input Voltage: +/- 192V(384v)

Current: 63Amp-630Amp

Battery type: LFP,NMC,LTO

Feature: AC/DC dual power suply

Communication: RS485 TCP/IP CAN DYR CONTACT

Protect: charge and discharge

Warranty: 3years

Place of Origin: Hunan, China


Lifepo4 UPS BMS 384V 63A 120S HV RS485 TCP/IP Communication 1

Lifepo4 UPS BMS 384V 63A 120S HV RS485 TCP/IP Communication 2

Lifepo4 UPS BMS 384V 63A 120S HV RS485 TCP/IP Communication 3


UPS Com Port Definition

Please use five or more types of network lines, the sequence can be according to the standard

TIA-586A or TIA-568B as show below:



Lifepo4 UPS BMS 384V 63A 120S HV RS485 TCP/IP Communication 4

Lifepo4 UPS BMS 384V 63A 120S HV RS485 TCP/IP Communication 5













Application Scenario
  • PV power plant storage
  • Island off-grid energy storage
  • optical storage charge integration applications
  • Micro-grid applications
  • UPS power supply
  • Power System 220V DC power supply
  • Rail transit 110V DC power supply

Lifepo4 UPS BMS 384V 63A 120S HV RS485 TCP/IP Communication 6







Specification


Product Name
BMS
Model no.
RBMS07S3-0-63A384V
protecting method
MCCB+Contactor
Rated Current range
-63A~63A
Voltage Range
96V-384V
Current Sampling Accuracy
1.0%FSR
Communication interface with BMU
RS485/CAN
Communication interface with BMU
CAN
Communication interface with BMU
RS485/CAN
Communication with monitoring software/EMS
Ethernet
Support IAP upgrade
Yes
Support HMI display and parameter
No(Optional plug in)
Insulation detection
Yes(Optional)
High voltage power module
Support DC start (optional)
Dry contact output (normally open)
No
Maximum qty of BMUs
20
Power
24VDC(18~28V)
Power consumption
≤20W
Size(W*H*D)mm
4U (440*178*600)
Way out
Front
Tap center
Support(Optional)
Net weight
23kg

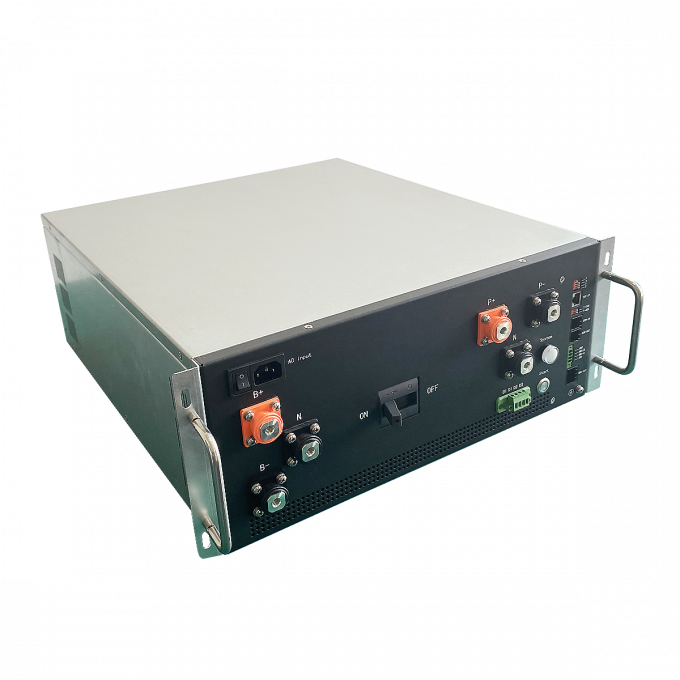

Lifepo4 UPS BMS 384V 63A 120S HV RS485 TCP/IP Communication 7


  •

  •

  • ±192V63Amp




    •
    Center Tap BMS
* RS485, CAN, LAN, Dry contact
* 4U standard 19inch case * Efficient, stable and reliable * size:W440*D500*H178mm

Accessories
Lifepo4 UPS BMS 384V 63A 120S HV RS485 TCP/IP Communication 8

12S-24S BMU(Slave)

12S-24S BMU has 8pcs of tempreture sensors, Fan voltage 48V(17S-24S 12V), voltage detection range 0-5V,12V power
supply,consumption less 20mA, CAN2.0 B communication
Lifepo4 UPS BMS 384V 63A 120S HV RS485 TCP/IP Communication 9

Wire harness-Signal acquisition wire

18 Pin+20Pin wire, standard length is 600mm,900mm,1200mmtempreture sensor wire: standard length is 600mm,900mm,1200mm
Fan wire: 600mm
Lifepo4 UPS BMS 384V 63A 120S HV RS485 TCP/IP Communication 10

Wire harness-communication wire

Communication wire is connecting from master BMS to each BMU with cascade connection, the last port is for terminal resistance
Our Company
Hunan Group Control Energy Technology Co., Ltd.(GCE) is a high-tech company specializing in the research and development of BMS and lithium battery peripheral equipment. The high-performance intelligent lithium battery management system produced by our company adopts the international leading technology, which greatly improves the battery management efficiency and prolongs the service life of lithium battery. The advanced BMS control strategy avoids the difficulties and instability faced by most competitors for our BMS.

4S to 24s low voltage software BMS has a wide range of uses, rich product interfaces, strong scalability and secondary development compatibility; 30s to 75s BMS adopts master-slave integrated design and relay solution to meet the lithium battery demand of multiple strings of small capacity batteries. Greatly reduce the use cost of users; 60s-270s adopts master-slave three-level architecture, which can meet the series and parallel requirements of high-capacity single lithium batteries within 1000V.



Lifepo4 UPS BMS 384V 63A 120S HV RS485 TCP/IP Communication 11



Lifepo4 UPS BMS 384V 63A 120S HV RS485 TCP/IP Communication 12
