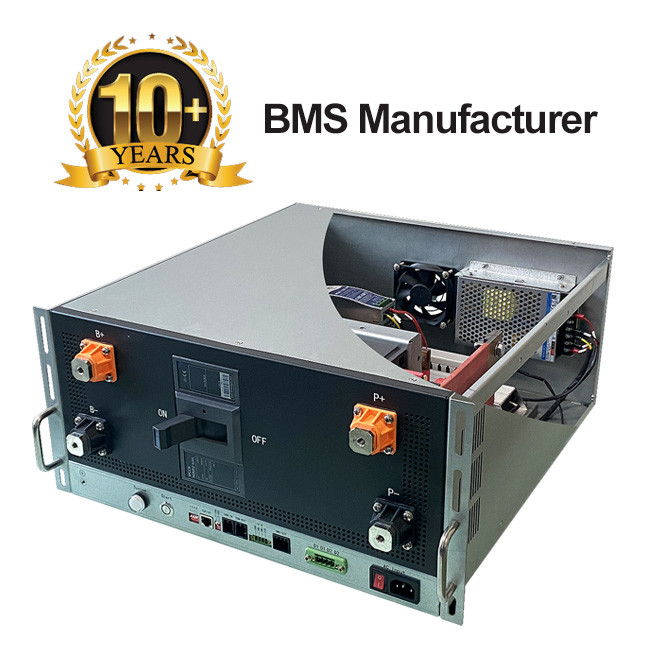

480V 400A Lithium Ion ESS BMS 150S Relay With Parallel Function
2
MOQ
Please contact: ellen@hngce.com
Price
480V 400A Lithium Ion ESS BMS 150S Relay With Parallel Function
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: GCE
Certification: CE
Model Number: RBMS07S2-3-400A480V
High Light:

400A ESS BMS

,

480V ESS BMS

,

lithium ion bms Parallel Function

Payment & Shipping Terms
Packaging Details: Blister & Carton
Delivery Time: 10-15 work days
Payment Terms: T/T, L/C
Supply Ability: 5000sets / Month
Specifications
Product Name: UPS BMS, High Voltage BMS, Smart BMS,LifePO4 BMS, Relay BMS
Voltage: 480V
Strings: 150S(15S*10)
Charge And Discharge Current: 400Amp
Battery Type: LFP / NMC / LTO
Communication: RS485/CAN
Touch Screen: 3.5-inch / 7-inch
Application: BESS, UPS, Wind, Solar Energy, UPS...
Product Description

GCE ESS BMS 480V 400A 150S Relay BMS High Voltage BMS With Parallel Function Insulation For Lithium Ion ESS UPS PV




BMS Configuration


150S 480V 400A High Voltage BMS * 1set

15S BMU * 10sets

15S wire harness *10sets

(15S48V battery module,10 modules in series for 150S 480V 400A system)

480V 400A Lithium Ion ESS BMS 150S Relay With Parallel Function 0



Application


Battery Energy Storage System(BESS)
Off-grid energy storage
Data Center
Grid frequency modulation energy storage
LFP UPS power supply



Specification


Product Name
150S 480V 400A High Voltage BMS
Model no.
RBMS07S2-3-400A480V
protecting method
MCCB+Contactor
Rated Current range
400A
Voltage Range
480V
Current Sampling Accuracy
1.0%FSR
Communication interface with PCS
RS485/CAN
Communication interface with BMU
CAN
Communication interface with SBMS

RS485/CAN

Communication with monitoring software/EMS
Ethernet
Support IAP upgrade
Yes
Support HMI display and parameter
Yes(Optional)
Insulation detection
Yes(Optional)
High voltage power module
Support DC start (optional)
Dry contact output (normally open)
Up to 3
Maximum qty of BMUs
13
Power
24VDC(18~28V)
Power consumption
≤20W
Size(W*H*D)mm
4U (440*133*500)
Tap center
Not support
Net weight
32kg







Detail Picture


480V 400A Lithium Ion ESS BMS 150S Relay With Parallel Function 1

480V 400A Lithium Ion ESS BMS 150S Relay With Parallel Function 2





480V 400A Lithium Ion ESS BMS 150S Relay With Parallel Function 3



Production Line


480V 400A Lithium Ion ESS BMS 150S Relay With Parallel Function 4



Tasks of smart battery management systems (BMS)


The task of battery management systems is to ensure the optimal use of the residual energy present in a battery. In order to avoid loading the batteries, BMS systems protect the batteries from deep discharge, from over-voltage, which are results of extreme fast charge and extreme high discharge current. In the case of multi-cell batteries, the battery management system also provides for cell balancing function, to manage that different battery cells have the same charging and discharging requirements.





FAQ




Q. What is your MOQ?
A: 1 unit


Q. How long is the lead time?
A: 15-20 workdays.


Q. How is your warranty?
A: 3-years.


Q. What is the difference between smart BMS and non-smart BMS?
A: Smart BMS can be connected PC, CANBUS and RS485. You can see battery information real time.


Q. What specification of BMS do you have ?
A: 96V-1000V 50A~500A for LFP, NCM. LTO Batteries.

Integrated BMS: 30S, 40S, 50S, 60S, 64S, 75S, 96V-240V 50A / 100A

2U BMS: 192V, 240V, 256V, 288V,336V,384V......500V

3U BMS:192V, 240V, 256V, 288V,336V,384V, 432V, 512V, 480V, 768V, 864V.....1000V, 125A / 160A

4U BMS: 192V, 240V, 256V, 288V,336V,384V, 432V, 512V, 480V, 768V, 864V.....1000V, 250A

5U BMS: 192V,204.8V, 358.4V, 409.6V, 460.8V, 716.8V,......1000V, 400A / 500A
