Model Number: RBMS07-S20-250A624V
Payment & Shipping Terms
Minimum Order Quantity: 2
Price: negotiable
Packaging Details: Bubble bag, foam, carton
Delivery Time: 20~25days
Payment Terms: T/T, L/C
Supply Ability: 1000sets/month
Warranty: |
3 Years |
Description: |
Overall Solution Battery Management System |
Application: |
BESS, UPS, Solar Off Grid ESS, Container ESS |
Voltage: |
256V |
Current: |
250A |
Design Feature: |
AC, DC Dual Power Supply |
Communication: |
RS485 CAN LAN(IP/TCP) |
Cell Type Applicable: |
LFP, NCM, LTO |
Events: |
5000 |
Warranty: |
3 Years |
Description: |
Overall Solution Battery Management System |
Application: |
BESS, UPS, Solar Off Grid ESS, Container ESS |
Voltage: |
256V |
Current: |
250A |
Design Feature: |
AC, DC Dual Power Supply |
Communication: |
RS485 CAN LAN(IP/TCP) |
Cell Type Applicable: |
LFP, NCM, LTO |
Events: |
5000 |
GCE 256V 250A Lifepo4 BMS lithium battery management system BMS With
15S BMU For Large-scale LFP NCM LTO BESS UPS Solar ESS Micro Grid ESS
Home ESS Container ESS Solar Carport ESS

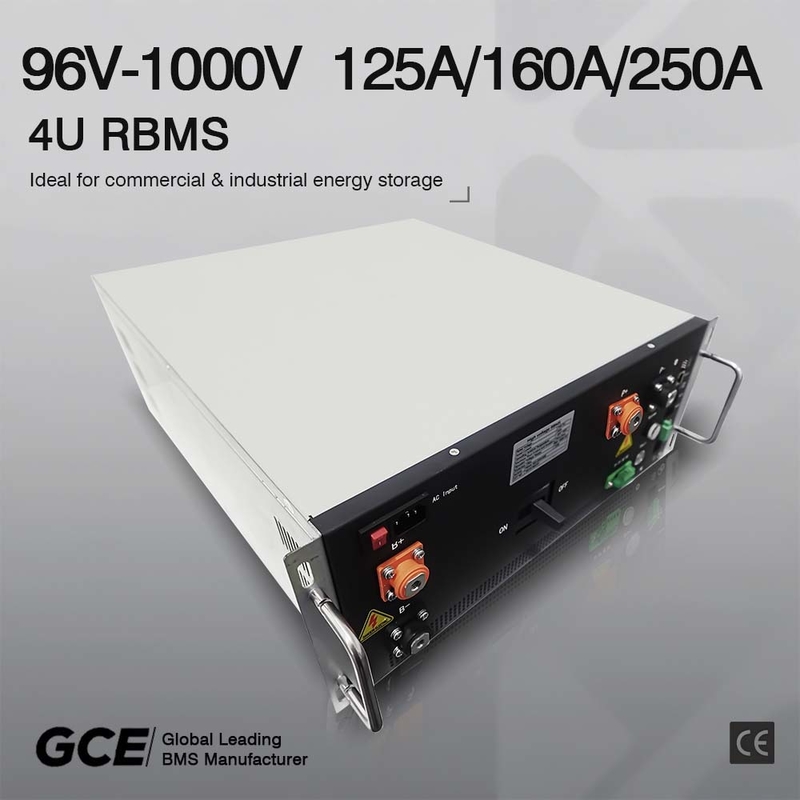

High Voltage Master BMS: RMBS07-S20-250A624V
One complete set of HV 80S256V 250A BMS solutions includes:
1set Master BMS, Model#: RBMS07-S20-250A256V
4sets of 20S Slave BMU Model#: BMU07-20S8T48F
4sets of 20S Wire Harness:
including voltage&temperature sensoring wires,
BMU communication wires,
Fan power wire.
1.Advanced Battery Management System --- The highly integrated battery management system enables seamless monitoring.
2. perfect self-test and operational status detection, with HMI display, system operation information at a glance.
3. perfect and reliable system control and protection strategies to fully protect the battery safety, and extend the life of the
battery escort.
4. Modular design, configurable, scalable --- flexible combination of multiple energy storage units can be expanded to a larger
energy storage system, the maximum can support 272 (lead-carbon battery 400) battery series.
![]() |
![]() |
![]() |
12S-24S BMU(Slave)12S-24S BMU has 8pcs of temperature sensors, Fan voltage 48V(17S-24S 12V), voltage detection range 0-5V,12V power supply,consumption less 20mA, CAN2.0 B communication
|
Wire harness-Signal acquisition wire18 Pin+20Pin wire, standard length is 600mm,900mm,1200mm tempreture sensor wire: standard length is 600mm,900mm,1200mm
Fan wire: 600mm |
Wire harness-communication wireCommunication wire is connecting from master BMS to each BMU with cascade connection, the last port is for terminal resistance
|
Actual picture of BMU:
Specification:
Product Name | BMS(Battery Management System) |
Model no. | RBMS07-S20-250A256V |
protecting method | MCCB+Contactor |
Rated Current range | -250A~250A(Max. 500A) |
Voltage Range | 96V-1000V |
Current Sampling Accuracy | 1.0%FSR |
Communication interface with PCS | RS485/CAN |
Communication interface with BMU | CAN |
Communication interface with SBMS | RS485/CAN |
Communication with monitoring software/EMS | Ethernet |
Support IAP upgrade | Yes |
Support HMI display and parameter | No(Optional plugin) |
Insulation detection | Yes(Optional) |
High voltage power module | Support DC start (optional) |
Dry contact output (normally open) | No |
Maximum qty of BMUs | 20 |
Power | 24VDC(18~28V) |
Power consumption | ≤20W |
Size(W*H*D)mm | 4U (482*180*500) |
Way out | Front |
Tap center | Support(Optional) |
Net weight | 30 kgs |
Documents Download:
Linkage for downloading specifications for Master BMS and Slave BMU:
GCE_RBMS specification--EN--V1.0.pdf
GCE 17-24S BMU-specification-UL-V1.0.pdf
Linkage for downloading of BMS demand information collection form:
high voltage BMS info collection form EN2021-04.do...
