160S Battery Energy Storage System , 512V 160A Lithium Battery Management System Bms
2
MOQ
negotiable
Price
160S Battery Energy Storage System , 512V 160A Lithium Battery Management System Bms
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: GCE
Certification: CE/RoHS/SGS/MSDS
Model Number: 4U
High Light:

160S Battery Energy Storage System

,

512V Battery Energy Storage System

,

160A Lithium Battery Management System Bms

Payment & Shipping Terms
Packaging Details: Corrugated Carton
Delivery Time: 15-20 days
Supply Ability: 1000 sets/month
Specifications
Model: RBMS07S20-160A512V
BMS Type: 4U BMS
Maximum Qty Of BMUs: 20
Power Consumption: ≤25W(Three Wire Systems); ≤15W(Two Wire Systems)
Communication Protocol: Rs485, CAN, LAN
Rated Current Range: -160A~250A
Voltage Range: 384V-1000V
Package Weight: 23kgs
Product Description

GCE Lifepo4 BMS 160S 512V 160A Lithium Battery Management System BMS

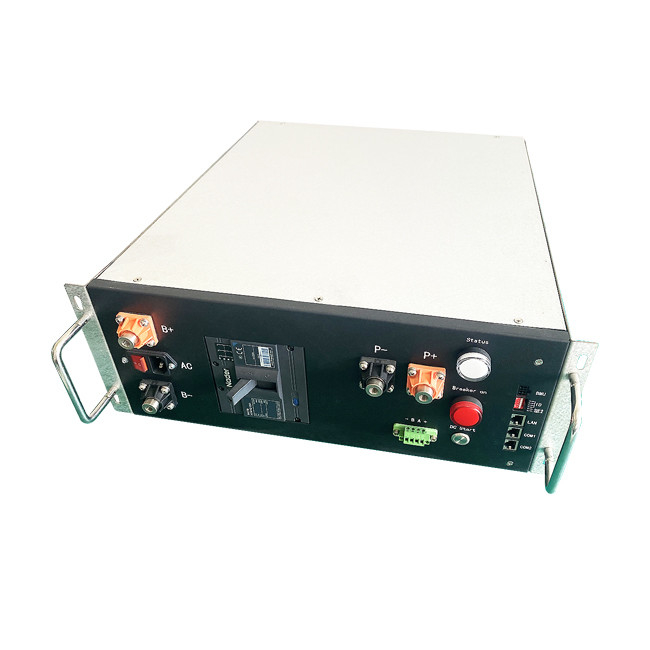

160S Battery Energy Storage System , 512V 160A Lithium Battery Management System Bms 0



Model Number: RBMS07S20-160A512V

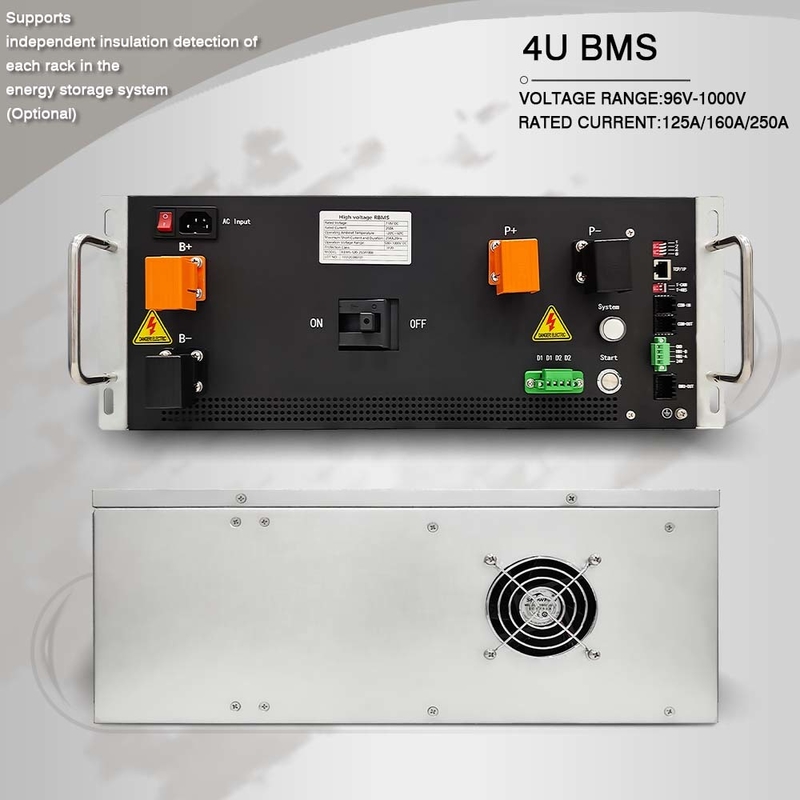

160S Battery Energy Storage System , 512V 160A Lithium Battery Management System Bms 1


Brand Name:GCE
Model: 4U BMS

Battery cell: Grade 3.2V LifePO4 Cell

Rack configuration: standalone or Parallel
Battery type: LFP, NCM, LTO...
Voltage: 512V
Current: 160A
Weight: 23kg

Application: Battery Storage Systems



BMS Solutions:

1set Master BMS

10sets 16S Slave BMU

10sets 16S Wire Harness

4U standard 19inch case

Efficient, stable and reliable

Size: 482*180*500mm





12S-24S BMU(Slave)

12S-24S BMU has 8pcs of tempreture sensors, Fan voltage 48V(17S-24S 12V), voltage detection range 0-5V,12V power
supply,consumption less 20mA, CAN2.0 B communication

Wire harness-Signal acquisition wire

18 Pin+20Pin wire, standard length is 600mm,900mm,1200mmtempreture sensor wire: standard length is 600mm,900mm,1200mm
Fan wire: 600mm

Wire harness-communication wire

Communication wire is connecting from master BMS to each BMU with cascade connection, the last port is for terminal resistance
160S Battery Energy Storage System , 512V 160A Lithium Battery Management System Bms 2
160S Battery Energy Storage System , 512V 160A Lithium Battery Management System Bms 3
160S Battery Energy Storage System , 512V 160A Lithium Battery Management System Bms 4



Specification
Product Name
BMS
Model no.
RBMS07S2-3-63A480V
protecting method
MCCB+Contactor
Rated Current range
-125A~125A
Voltage Range
120V-680V
Current Sampling Accuracy
1.0%FSR
Communication interface with BMU
RS485/CAN
Communication interface with BMU
CAN
Communication interface with BMU
RS485/CAN
Communication with monitoring software/EMS
Ethernet
Support IAP upgrade
Yes
Support HMI display and parameter
Yes(Optional)
Insulation detection
Yes(Optional)
High voltage power module
Support DC start (optional)
Dry contact output (normally open)
Up to 3
Maximum qty of BMUs
13
Power
24VDC(18~28V)
Power consumption
≤20W
Size(W*H*D)mm
3U (482*132*500mm)
Way out
Front
Mid-line
Not support
Tap center
Not support
Net weight
21kg


160S Battery Energy Storage System , 512V 160A Lithium Battery Management System Bms 5



160S Battery Energy Storage System , 512V 160A Lithium Battery Management System Bms 6



160S Battery Energy Storage System , 512V 160A Lithium Battery Management System Bms 7





Notice:



1.During transport should prevent severe jitter, impulse or squeeze to prevent the sun and rain,can use cars, trains,ships,aircraft and other transport modes of transport.



2.Should be stored in a clean, dry room with an ambient temperature of -20° C to 55° C and a relative humidity of not more than 75% RH. Avoid contact with corrosive materials and away from water, heat, heat, etc.



Our comapny



Hunan Group Control Energy Technology Co., Ltd.(GCE) is a high-tech company specializing in the research and development of BMS and lithium battery peripheral equipment. The high-performance intelligent lithium battery management system produced by our company adopts the international leading technology, which greatly improves the battery management efficiency and prolongs the service life of lithium battery. The advanced BMS control strategy avoids the difficulties and instability faced by most competitors for our BMS.

4S to 24s low voltage software BMS has a wide range of uses, rich product interfaces, strong scalability and secondary development compatibility; 30s to 75s BMS adopts master-slave integrated design and relay solution to meet the lithium battery demand of multiple strings of small capacity batteries. Greatly reduce the use cost of users; 60s-270s adopts master-slave three-level architecture, which can meet the series and parallel requirements of high-capacity single lithium batteries within 1000V.


Our Team: Dedicated Engineering, Manufacturing, & Support Staff.



We Ask: How can our products give your business a competitive advantage? Then provide our customers with a rapid solution.



We Offer: The widest range of stored energy solutions superior in power, weight, and durability. Always with this priority: safety first.



We Produce: The most versatile Lithium-ion Iron Phosphate battery management systems that provide world class integrations in the industry.



We Deliver: New-age energy solutions that pioneer new savings, new technologies, and new markets that are simply not possible with current battery technology.



At GCE, we design advanced battery systems that offer real savings when replacing common battery chemistries. These cost savings will be proven in various forms.
