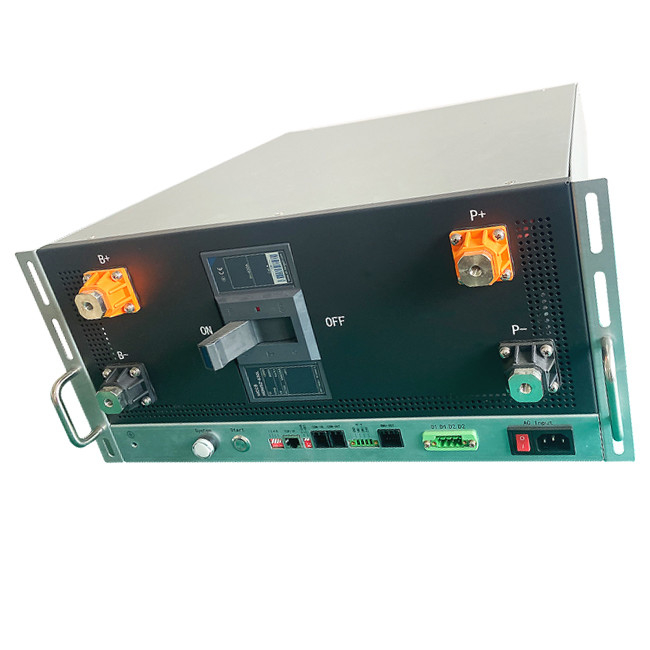

CAN Communication Master Slave BMS , 720V DC 630A Daly BMS 16s
2
MOQ
negotiable with wenglin@hngce.com
Price
CAN Communication Master Slave BMS , 720V DC 630A Daly BMS 16s
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: GCE
Certification: CE/RoHS/SGS/MSDS
Model Number: 5U
High Light:

CAN Master Slave BMS

,

720V Daly BMS 16s

,

630A Daly BMS 16s

Payment & Shipping Terms
Packaging Details: Corrugated Carton
Delivery Time: 15-20 days
Supply Ability: 1000 sets/month
Specifications
Item: High Voltage 5U BMS
Model Number: 4U (RBMS07S2-3-630A720V)
Modules: 225S (15S*15)
Voltage: 720V
Current: 630A
Maximum Qty Of BMUs: 20
Single Gross Weight: 38 Kg
Product Size: W482*H220*D500mm
Product Description

GCE High Voltage 720V DC 630A Relay Lithium Master Slave 16S BMS Delay







Model no.: RBMS07S2-630A720V



BMS Solution:

Number of moudel strings: 225S (15S*15)

1set Master BMS,

15sets 15S Slave BMU

15sets 15S Wire Harness

4U standard 19inch case

Efficient, stable and reliable

Size: 440*178*500mm



Selling Units:Single item

Single package size: 80X70X60 cm

Single gross weight:40.000 kg

Package Type:Corrugated Carton, bundles, pallets, wooden box



CAN Communication Master Slave BMS , 720V DC 630A Daly BMS 16s 0
15S BMS High Voltage Battery Management -- 5U BMS

Protecting method: MCCB+Contactor
Rated Current range: -500A~500A
Voltage Range: 384V-1000V
Current Sampling Accuracy: 1.0%FSR
Communication interface with BMU: CAN
Communication interface with UPS&SBMS:RS485/CAN
Communication with monitoring software/EMS: Ethernet
Support HMI display and parameter: NO(Optional plug in)
Dry contact output :No
Maximum qty of BMUs:20
Power consumption:≤15W
Size:5U(482*220*500mm)
Net weight:~32kg


CAN Communication Master Slave BMS , 720V DC 630A Daly BMS 16s 1



Specification

Product Name
BMS
Model no.
RBMS07S2-3-630A720V
protecting method
MCCB+Contactor
Rated Current range
-500A~500A
Voltage Range
384V-1000V
Current Sampling Accuracy
1.0%FSR
Communication interface with BMU
RS485/CAN
Communication interface with BMU
CAN
Communication interface with BMU
RS485/CAN
Communication with monitoring software/EMS
Ethernet
Support IAP upgrade
Yes
Support HMI display and parameter
No(Optional plug in)
Insulation detection
Yes(Optional)
High voltage power module
Support DC start (optional)
Dry contact output (normally open)
No
Maximum qty of BMUs
20
Power
24VDC(18~28V)
Power consumption
≤20W
Size(W*H*D)mm
5U (440*178*600)
Way out
Front
Tap center
Support(Optional)
Net weight
38kg


Project We Made








CAN Communication Master Slave BMS , 720V DC 630A Daly BMS 16s 2 CAN Communication Master Slave BMS , 720V DC 630A Daly BMS 16s 3 CAN Communication Master Slave BMS , 720V DC 630A Daly BMS 16s 4
CAN Communication Master Slave BMS , 720V DC 630A Daly BMS 16s 5 CAN Communication Master Slave BMS , 720V DC 630A Daly BMS 16s 6 CAN Communication Master Slave BMS , 720V DC 630A Daly BMS 16s 7
CAN Communication Master Slave BMS , 720V DC 630A Daly BMS 16s 8 CAN Communication Master Slave BMS , 720V DC 630A Daly BMS 16s 9 CAN Communication Master Slave BMS , 720V DC 630A Daly BMS 16s 10




Application


CAN Communication Master Slave BMS , 720V DC 630A Daly BMS 16s 11


CAN Communication Master Slave BMS , 720V DC 630A Daly BMS 16s 12
