192V 125A UPS BMS With Relay BESS UPS Sistemas De Energia Solar Energy System
2
MOQ
negotiable
Price
192V 125A UPS BMS With Relay  BESS UPS Sistemas De Energia Solar Energy System
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: CHINA
Brand Name: GCE
Certification: CE UL TUV
Model Number: RBMS07-S23-125A240V
High Light:

125A UPS BMS

,

192V UPS BMS

,

BESS bms for solar system

Payment & Shipping Terms
Packaging Details: Bubble bag, foam, carton
Delivery Time: 20~25days
Payment Terms: T/T, L/C
Supply Ability: 1000sets/month
Specifications
Warranty: 3 Years
Current: 125A
Voltage: 240V
Cell Type Applicable: LFP, NCM, LTO
Application: BESS, UPS, Solar Off Grid ESS, Container ESS
Communication: RS485 CAN LAN(IP/TCP)
Design Feature: AC, DC Dual Power Supply
Dispaly: 3.5" Builtin Touchscreen
Insulation Monitor: Optional
Event: 5000
Product Description

OEM 192V 125A Relay High Voltage BMS with 15S BMU for BESS UPS

Sistemas De Energia Solar Solar Energy System Lifepo4 Battery For LFP

NCM LTO BESS UPS Solar energy system UPS power For Lifepo4
lithium-ion batteries For UPS ESS Solar BESS For High Voltage battery

energy storage systems Lifepo4 battery BMS For Large scale ESS Container

BESS Micro Grid ESS Home ESS Carport ESS Overall Solution BMS Battery Management System

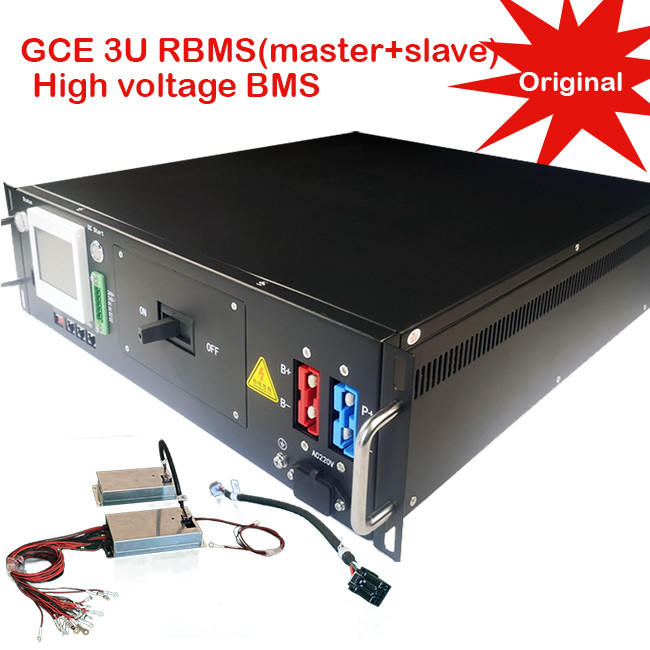

192V 125A UPS BMS With Relay  BESS UPS Sistemas De Energia Solar Energy System 0











Solution Of BMS:



One complete set of HV 60S192V 125A BMS



solutions includes:



1set Master BMS, Model#: RBMS07-S23-125A192V



4sets of 15S Slave BMU Model#: BMU07-15S8T48F



4sets of 15S Wire Harness, including voltage&temperature acquisition wires,

BMU communication wires, Fan power wires.

192V 125A UPS BMS With Relay  BESS UPS Sistemas De Energia Solar Energy System 1

Product Features:



  • Perfect self-test and operational status detection, with HMI display, and system operation information at a glance.
  •
  • Advanced Battery Management System -- The highly integrated battery management system enables seamless monitoring.
  •
  • Automatic circulation control and automatic parallel machine offline control can be easily parallel batteries.
  • (Model suffix selection D).
  •
  • Flexible communication interface protocol --- The company comes with the company's communication protocol,
  • but also according to customer needs to adapt to PCS of different manufacturers.
  •
  • Capacity is large --- Built-in large-capacity memory chips can store a large number of key operational data,
  • but also can install an SD card for offline access.
  •
  • AC, DC Dual power supply design. 3U compact in size, master BMS and Slave BMU make its assembly flexible.
  • 3.5" built-in touchscreen enables BMS operation easily.
  •
  • LAN, RS485, and CAN communication channels, together with GCE's unique software, our BMS can exchange
  • data with PC and other devices.





192V 125A UPS BMS With Relay  BESS UPS Sistemas De Energia Solar Energy System 2



192V 125A UPS BMS With Relay  BESS UPS Sistemas De Energia Solar Energy System 3 192V 125A UPS BMS With Relay  BESS UPS Sistemas De Energia Solar Energy System 4 192V 125A UPS BMS With Relay  BESS UPS Sistemas De Energia Solar Energy System 5

12S-24S BMU(Slave)

12S-24S BMU has 8pcs of temperature sensors, Fan voltage 48V(17S-24S 12V), voltage detection range 0-5V,12V power
supply,consumption less 20mA, CAN2.0 B communication

Wire harness-

Signal acquisition wire

18 Pin+20Pin wire, standard length is 600mm,900mm,1200mm tempreture sensor wire: standard length is 600mm,900mm,1200mm
Fan wire: 600mm

Wire harness-

communication wire

Communication wire is connecting from master BMS to each BMU with cascade connection, the last port is for terminal resistance





Specification:



Product Name BMS(Battery Management System)
Model no. RBMS07-S23-125A240V
protecting method MCCB+Contactor
Rated Current range -250A~250A(Max. 500A)
Voltage Range 96V-1000V
Current Sampling Accuracy 1.0%FSR
Communication interface with PCS RS485/CAN
Communication interface with BMU CAN
Communication interface with SBMS RS485/CAN
Communication with monitoring software/EMS Ethernet
Support IAP upgrade Yes
Support HMI display and parameter No(Optional plugin)
Insulation detection Yes(Optional)
High voltage power module Support DC start (optional)
Dry contact output (normally open) No
Maximum qty of BMUs 20
Power 24VDC(18~28V)
Power consumption ≤20W
Size(W*H*D)mm 3U (482*132*500)
Way out Front
Tap center Support(Optional)
Net weight 23 kgs







Applications:



192V 125A UPS BMS With Relay  BESS UPS Sistemas De Energia Solar Energy System 6







Documents Download:



Linkage for downloading specifications for master BMS and slave BMU:

GCE_RBMS specification--EN--V1.0.pdf

GCE 12-16S BMU-specification-UL-V1.0.pdf

Linkage for downloading of BMS demand information collection form:

high voltage BMS info collection form EN2021-04.do...

For more information about the products, please contact me.





About US:

192V 125A UPS BMS With Relay  BESS UPS Sistemas De Energia Solar Energy System 7



Hunan Group Control Energy Technology Co., Ltd.(GCE) is a high-tech company specializing in the research and development of BMS and lithium battery peripheral equipment.



The high-performance intelligent lithium battery management system produced by our company adopts the international leading technology,



Which greatly improves the battery management efficiency and prolongs the service life of lithium battery.



The advanced BMS control strategy avoids the difficulties and instability faced by most competitors for our BMS.
