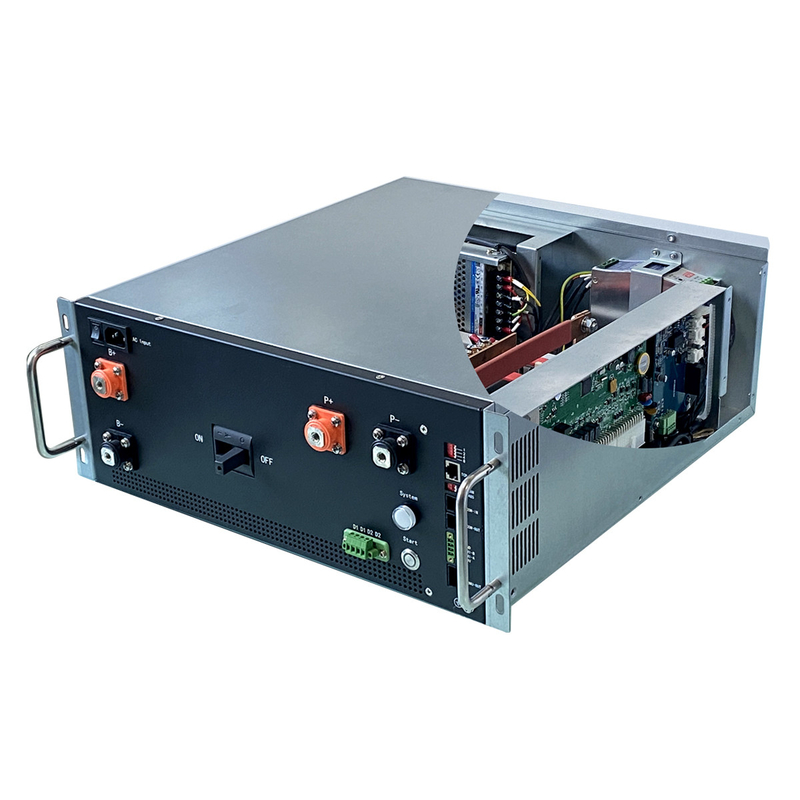

GCE 768V 160A UPS BMS Lifepo4 Bms 48v Battery Management System

Product Details

Place of Origin: China

Brand Name: GCE

Certification: CE/RoHS/SGS/MSDS

Model Number: 5U

Payment & Shipping Terms

Minimum Order Quantity: 2

Price: negotiable with wenglin@hngce.com

Packaging Details: Corrugated Carton

Delivery Time: 15-20 days

Supply Ability: 1000 sets/month

Get Best Price
Highlight:

768V UPS BMS

Model:
RBMS07S20160A768V
BMS Type:
4U BMS
Brand:
GCE
Communication Interface With UPS:
Rs485/CAN/LAN/dry Contact
Voltage:
768V
Battery Type:
LFP NCM LTO
Dry Contact:
Available
Package Weight:
40 Kgs
Model:
RBMS07S20160A768V
BMS Type:
4U BMS
Brand:
GCE
Communication Interface With UPS:
Rs485/CAN/LAN/dry Contact
Voltage:
768V
Battery Type:
LFP NCM LTO
Dry Contact:
Available
Package Weight:
40 Kgs
GCE 768V 160A UPS BMS Lifepo4 Bms 48v Battery Management System

GCE 768V 160A Lifepo4 Master Slave High Voltage 48v BMS Lifepo4





GCE 768V 160A UPS BMS Lifepo4 Bms 48v Battery Management System 0
Model Number:RBMS07S2-3-160A768V

Quick Details
Place of Origin:
China
Brand Name:
GCE
Model Number:
RBMS07S20160A768V
Battery Type:
High voltage BMS
Battery Type::
LFP/NMC/LTO
communication::
Rs485/CAN/LAN/dry contact
Voltage::
768V
Current::
160A
Application::
BESS/UPS
module strings::
15S*16pcs
Power:
24VDC(18~28V)
Power consumption:
≤20W

Product Details

1. Advanced Battery Management System --- The highly integrated battery management system enables seamless monitoring.
2. perfect self-test and operational status detection, with HMI display, system operation information at a glance.

3. perfect and reliable system control and protection strategies to fully protect the
battery safety, extend the life of the battery escort.

GCE 768V 160A UPS BMS Lifepo4 Bms 48v Battery Management System 1
GCE 768V 160A UPS BMS Lifepo4 Bms 48v Battery Management System 2

GCE 768V 160A UPS BMS Lifepo4 Bms 48v Battery Management System 3
GCE 768V 160A UPS BMS Lifepo4 Bms 48v Battery Management System 4

Specification
Product Name
BMS
Model no.
RBMS07S2-3-160A768V
protecting method
MCCB+Contactor
Rated Current range
-250A~250A
Voltage Range
384V-1000V
Current Sampling Accuracy
1.0%FSR
Communication interface with PCS
RS485/CAN
Communication interface with BMU
CAN
Communication interface with SBMS
RS485/CAN
Communication with monitoring software/EMS
Ethernet
Support IAP upgrade
Yes
Support HMI display and parameter
No(Optional plug in)
Insulation detection
Yes(Optional)
High voltage power module
Support DC start (optional)
Dry contact output (normally open)
No
Maximum qty of BMUs
20
Power
24VDC(18~28V)
Power consumption
≤25W(Three wire systems); ≤15W(Two wire systems)
Size(W*H*D)mm
4U (482*180*500)
Way out
Front
Tap center
Support(Optional)
Net weight
23kg
