240S 768V 125A ESS BMS Relay Master Slave RBMS07S2-3-125A768V

2
MOQ
negotiable
Price
240S 768V 125A ESS BMS Relay Master Slave RBMS07S2-3-125A768V
Features Gallery Product Description Request A Quote
Features
Specifications
Model: RBMS07S2-3-125A768V
BMS Type: 4U BMS
Brand: GCE
Communication Interface With UPS: Rs485/CAN/LAN/dry Contact
Voltage: 384V-768V-1000V
Battery Type: LFP NCM LTO
Certificate: SGS,CE,RoHS,MSDS
Package Weight: 24 Kgs (W482*H180*D500mm)
High Light:

768V ESS BMS

,

240S ESS BMS

,

125A Master Slave BMS
Basic Infomation
Place of Origin: China
Brand Name: GCE
Certification: CE/RoHS/SGS/MSDS
Model Number: 5U
Payment & Shipping Terms
Packaging Details: Corrugated Carton
Delivery Time: 15-20 days
Supply Ability: 1000 sets/month
Product Description

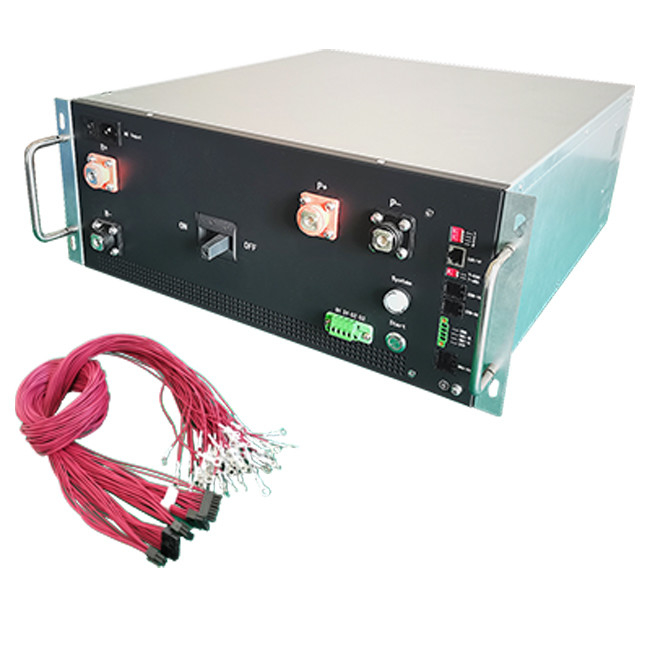

Lifepo4 BMS High Voltage 240S 768V 125A Relay Master Slave ESS BMS







240S 768V 125A ESS BMS Relay Master Slave RBMS07S2-3-125A768V 0

Model Number:RBMS07S2-3-125A768V


768V125A BMS


Communication protocol: Rs485, CAN, LAN


* 4U standard 19inch case
* Efficient, stable and reliable
* size:W482*H180*D500mm
240S 768V 125A ESS BMS Relay Master Slave RBMS07S2-3-125A768V 1

12S-24S BMU(Slave)



12S-24S BMU has 8pcs of tempreture sensors, Fan voltage 48V(17S-24S 12V), voltage detection range 0-5V,12V power
supply,consumption less 20mA, CAN2.0 B communication
240S 768V 125A ESS BMS Relay Master Slave RBMS07S2-3-125A768V 2

Wire harness-Signal acquisition wire



18 Pin+20Pin wire, standard length is 600mm,900mm,1200mmtempreture sensor wire: standard length is 600mm,900mm,1200mm
Fan wire: 600mm
240S 768V 125A ESS BMS Relay Master Slave RBMS07S2-3-125A768V 3

Wire harness-communication wire



Communication wire is connecting from master BMS to each BMU with cascade connection, the last port is for terminal resistance
Product Feature

Modular design, configurable, scalable --- flexible combination of multiple energy
storage unit can be expanded to a larger energy storage system, the maximum can support 272 (lead-carbon battery 400) battery series.

240S 768V 125A ESS BMS Relay Master Slave RBMS07S2-3-125A768V 4

Rich communication interface --- multiple RS485, CAN, Ethernet, dry contact input and
output interfaces, support for most of the market with PCS, monitoring server communication.


240S 768V 125A ESS BMS Relay Master Slave RBMS07S2-3-125A768V 5
Flexible communication interface protocol --- The company comes with the company's
communication protocol, but also according to customer needs to adapt to PCS of different manufacturers.

240S 768V 125A ESS BMS Relay Master Slave RBMS07S2-3-125A768V 6




Specification
Product Name
BMS
Model no.
RBMS07S2-3-160A768V
protecting method
MCCB+Contactor
Rated Current range
-250A~250A
Voltage Range
384V-1000V
Current Sampling Accuracy
1.0%FSR
Communication interface with PCS
RS485/CAN
Communication interface with BMU
CAN
Communication interface with SBMS
RS485/CAN
Communication with monitoring software/EMS
Ethernet
Support IAP upgrade
Yes
Support HMI display and parameter
No(Optional plug in)
Insulation detection
Yes(Optional)
High voltage power module
Support DC start (optional)
Dry contact output (normally open)
No
Maximum qty of BMUs
20
Power
24VDC(18~28V)
Power consumption
≤25W(Three wire systems); ≤15W(Two wire systems)
Size(W*H*D)mm
4U (482*180*500)
Way out
Front
Tap center
Support(Optional)
Net weight
23kg







Our comapny

Hunan Group Control Energy Technology Co., Ltd.(GCE) is a high-tech company specializing in the research and development of BMS and lithium battery peripheral equipment.

We are ready to share Information, Experience and Solutions in BMS (Battery Management System) Solar Power Investment.

Also to help Partners Optimize Investment Capital, Develop lifepo4 battery - Renewable Power sources widely.

At the same time, anticipate and well control the risks in Battery Project , Solar Power Project and Electrical Power System Project BMS Management.



240S 768V 125A ESS BMS Relay Master Slave RBMS07S2-3-125A768V 7



240S 768V 125A ESS BMS Relay Master Slave RBMS07S2-3-125A768V 8
