336V 50A BMS Solution , BESS UPS Lithium Ion Battery Management System

2
MOQ
negotiable
Price
336V 50A BMS Solution , BESS UPS Lithium Ion Battery Management System
Features Gallery Product Description Request A Quote
Features
Specifications
Features: DC&AC Dual Power Supply
Material: Iron
Color: Black
Dimension: 482*132*500mm
Warranty: 3 Years
Battery Type: LFP, NCM, LTO..., LFP, LTO, NCM, Lithium Iron Phosphate Battery
High Light:

336V BMS Solution

,

50A BMS Solution

,

BESS Lithium Ion Battery Management System
Basic Infomation
Place of Origin: china
Brand Name: GCE
Certification: CE UL
Model Number: RBMS07S23-50A336V
Payment & Shipping Terms
Packaging Details: Corrugated Carton,510*310*210mm
Delivery Time: 8-15 days
Payment Terms: L/C, T/T
Supply Ability: 10000+pcs+1 month
Product Description

336V 50A Lifepo4 BMS lithium battery management system BMS for Lithium-ion Battery Pack BESS UPS home solar application




    • 336V50A BMS




      •
    •
    •
Communication protocol:
Rs485, CAN, LAN, dry contact

* 2U standard 19inch case * Efficient, stable and reliable * size:W440*H88*D500mm

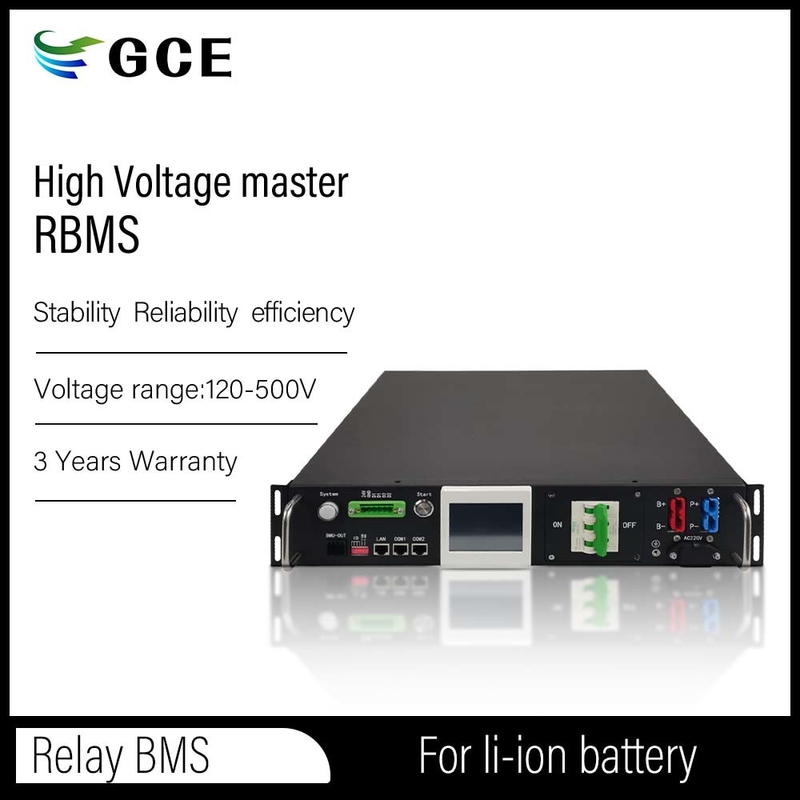

336V 50A BMS Solution , BESS UPS Lithium Ion Battery Management System 0

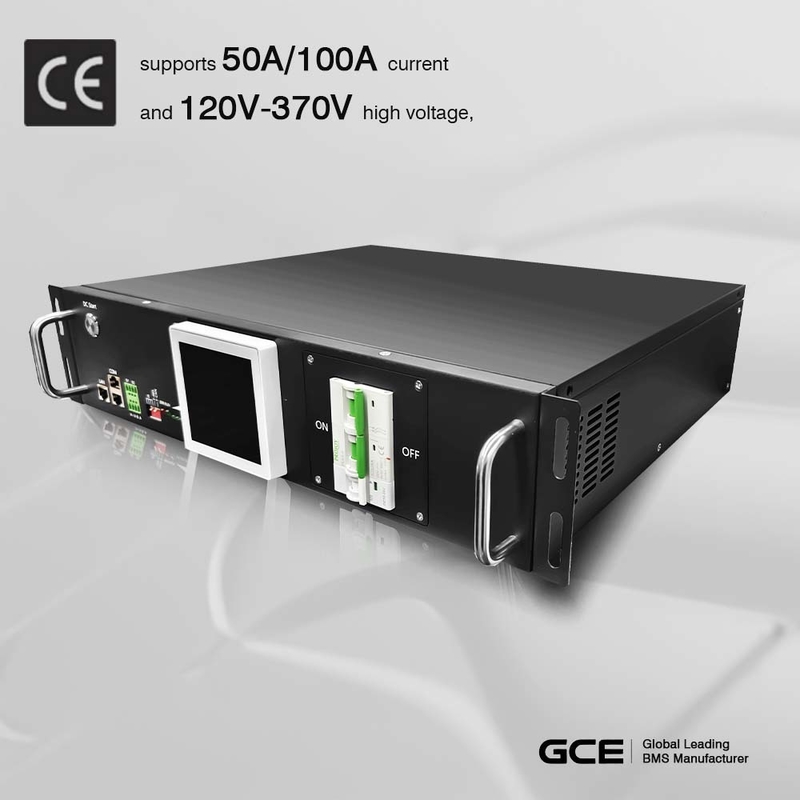

336V 50A BMS Solution , BESS UPS Lithium Ion Battery Management System 1336V 50A BMS Solution , BESS UPS Lithium Ion Battery Management System 2



Accessories


336V 50A BMS Solution , BESS UPS Lithium Ion Battery Management System 3



12S-24S BMU(Slave)
12S-24S BMU has 8pcs of tempreture sensors, Fan voltage 48V(17S-24S 12V), voltage detection range 0-5V,12V power
supply,consumption less 20mA, CAN2.0 B communication

336V 50A BMS Solution , BESS UPS Lithium Ion Battery Management System 4



Wire harness-Signal acquisition wire
18 Pin+20Pin wire, standard length is 600mm,900mm,1200mmtempreture sensor wire: standard length is 600mm,900mm,1200mm
Fan wire: 600mm

336V 50A BMS Solution , BESS UPS Lithium Ion Battery Management System 5



Wire harness-communication wire
Communication wire is connecting from master BMS to each BMU with cascade connection, the last port is for terminal resistance

Accessories


336V 50A BMS Solution , BESS UPS Lithium Ion Battery Management System 3



12S-24S BMU(Slave)
12S-24S BMU has 8pcs of tempreture sensors, Fan voltage 48V(17S-24S 12V), voltage detection range 0-5V,12V power
supply,consumption less 20mA, CAN2.0 B communication

336V 50A BMS Solution , BESS UPS Lithium Ion Battery Management System 4



Wire harness-Signal acquisition wire
18 Pin+20Pin wire, standard length is 600mm,900mm,1200mmtempreture sensor wire: standard length is 600mm,900mm,1200mm
Fan wire: 600mm

336V 50A BMS Solution , BESS UPS Lithium Ion Battery Management System 5



Wire harness-communication wire
Communication wire is connecting from master BMS to each BMU with cascade connection, the last port is for terminal resistance

Accessories


336V 50A BMS Solution , BESS UPS Lithium Ion Battery Management System 3



12S-24S BMU(Slave)
12S-24S BMU has 8pcs of tempreture sensors, Fan voltage 48V(17S-24S 12V), voltage detection range 0-5V,12V power
supply,consumption less 20mA, CAN2.0 B communication

336V 50A BMS Solution , BESS UPS Lithium Ion Battery Management System 4



Wire harness-Signal acquisition wire
18 Pin+20Pin wire, standard length is 600mm,900mm,1200mmtempreture sensor wire: standard length is 600mm,900mm,1200mm
Fan wire: 600mm

336V 50A BMS Solution , BESS UPS Lithium Ion Battery Management System 5



Wire harness-communication wire
Communication wire is connecting from master BMS to each BMU with cascade connection, the last port is for terminal resistance





Specification



Product Name

BMS

Model no.

RBMS07S2-3-63A192V

protecting method

MCCB+Contactor

Rated Current range

-50A~50A

Voltage Range

120V-500V

Current Sampling Accuracy

1.0%FSR

Communication interface with BMU

RS485/CAN

Communication interface with BMU

CAN

Communication interface with BMU

RS485/CAN

Communication with monitoring software/EMS

Ethernet

Support IAP upgrade

Yes

Support HMI display and parameter

Yes(Optional)

Insulation detection

No

High voltage power module

Support DC start (optional)

Dry contact output (normally open)

Up to 3

Maximum qty of BMUs

5

Power

24VDC(18~28V)

Power consumption

≤20W

Size(W*H*D)mm

2U (440*88*500)

Way out

Front

Mid-line

Not support

Tap center

Not support

Net weight

14kg
