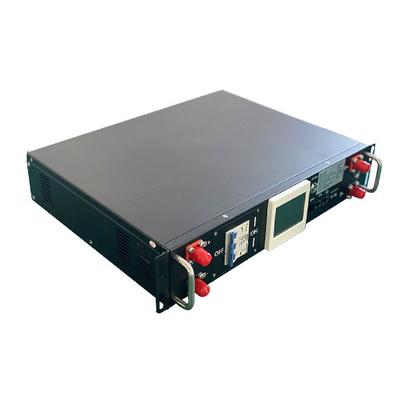

125A 160A 460.8V Relay BMS Master Slave 144S For LifePO4 Battery

2
MOQ
Please contact: ellen@hngce.com
Price
125A 160A 460.8V Relay BMS Master Slave 144S For LifePO4 Battery
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: UPS BMS, High Voltage BMS, Smart BMS,LifePO4 BMS, Relay BMS
Voltage: 460.8V
Strings: 144S
Battery Type: LFP, NMC, LTO
Charge And Discharge Current: 50A
Communication: RS485/CAN
Touch Screen: 3.5-inch / 7-inch
Application: BESS, Solar Energy, UPS...
High Light:

Relay BMS 460.8V

,

Relay BMS 160A

,

125A bms with relay

Basic Infomation
Place of Origin: China
Brand Name: GCE
Certification: CE
Model Number: RBMS07S2-3-50A409.6V
Payment & Shipping Terms
Packaging Details: Blister & Carton
Delivery Time: 10-15 work days
Payment Terms: T/T, L/C
Supply Ability: 5000sets / Month
Product Description

144S BMS 50A 125A 160A 460.8V BMS With Relay Master Slave BMS For LifePO4 Battery






BMS Configuration


144S 460.8V 50A High Voltage BMS * 1set

16S BMU * 9sets

16S wire harness *9sets

(16S 51.2V battery module,8 modules in series for 144S 460.8V 50A system)

125A 160A 460.8V Relay BMS Master Slave 144S For LifePO4 Battery 0





Application


Battery Energy Storage System(BESS)
Off-grid energy storage
Data Center
Grid frequency modulation energy storage
Track power / traction
LFP UPS power supply





Specification


Product Name
BMS
Model no.
RBMS07S2-3-50A460.8V
protecting method
MCCB+Contactor
Rated Current range
-50A~50A
Voltage Range
48V-500V
Current Sampling Accuracy
1.0%FSR
Communication interface with PCS
RS485/CAN
Communication interface with BMU
CAN
Communication interface with RBMS
RS485/CAN
Communication with monitoring software/EMS
Ethernet
Support IAP upgrade
Yes
Support HMI display and parameter
Yes(Optional)
Insulation detection
No
High voltage power module
Support DC start (optional)
Dry contact output (normally open)
Up to 3
Maximum qty of BMUs
5
Power
24VDC(18~28V)
Power consumption
≤20W
Size(W*H*D)mm
2U (440*88*500)
Way out
Front
Mid-line
Not support
Tap center
Not support
Net weight
14kg

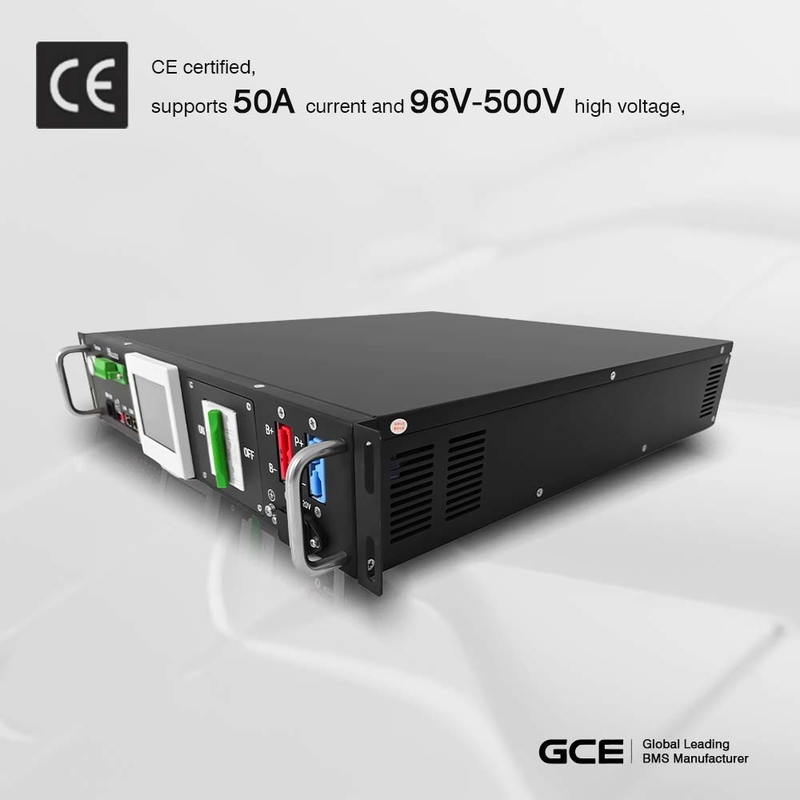

Products Display


125A 160A 460.8V Relay BMS Master Slave 144S For LifePO4 Battery 1125A 160A 460.8V Relay BMS Master Slave 144S For LifePO4 Battery 2125A 160A 460.8V Relay BMS Master Slave 144S For LifePO4 Battery 3125A 160A 460.8V Relay BMS Master Slave 144S For LifePO4 Battery 4

GCE High Voltage Battery Management System Solution




GCE high voltage BMS is an intelligent overall solution. We can connect battery modules with different types of strings in series to higher voltage systems, GCE BMS will assign addresses to each connected battery module, and if a cell is damaged, we can easily Find and replace it. Multiple battery clusters can also be assigned addresses through DIP switches. We allow 8 battery clusters to be connected in parallel. Of course, you can also connect more battery clusters in parallel to meet your MWh energy storage needs. But our suggestion is that you can use every 8 battery clusters as a battery bank and have N battery banks in parallel. Our BMU can be divided into 8 series, 12-16 series, 17-24 series of three specifications of PCB. In this way, you can meet the average distribution of your various total strings of batteries.





FAQ




Q. What is your MOQ?
A: 1 unit


Q. How long is the lead time?
A: 15-20 workdays.


Q. How is your warranty?
A: 3-years.


Q. What is the difference between smart BMS and non-smart BMS?
A: Smart BMS can be connected PC, CANBUS and RS485. You can see battery information real time.


Q. What specification of BMS do you have ?
A: 96V-1000V 50A~500A for LFP, NCM. LTO Batteries.

Integrated BMS: 30S, 40S, 50S, 60S, 64S, 75S, 96V-240V 50A / 100A

2U BMS: 192V, 240V, 256V, 288V,336V,384V......500V

3U BMS:192V, 240V, 256V, 288V,336V,384V, 432V, 512V, 480V, 768V, 864V.....1000V, 125A / 160A

4U BMS: 192V, 240V, 256V, 288V,336V,384V, 432V, 512V, 480V, 768V, 864V.....1000V, 250A

5U BMS: 192V,204.8V, 358.4V, 409.6V, 460.8V, 716.8V,......1000V, 400A / 500A
