Large scale ESS Container Bms For Lifepo4 Battery 90S 288V 125A
2
MOQ
negotiable
Price
Large scale ESS Container Bms For Lifepo4 Battery 90S 288V 125A
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: CHINA
Brand Name: GCE
Certification: CE UL TUV
Model Number: RBMS07-S23-125A288V
High Light:

Bms For Lifepo4 Battery 90S

,

Bms For Lifepo4 Battery 288V

,

ESS lifepo4 battery bms

Payment & Shipping Terms
Packaging Details: Bubble bag, foam, carton
Delivery Time: 20~25days
Payment Terms: T/T, L/C
Supply Ability: 1000sets/month
Specifications
Warranty: 3 Years
Current: 125A
Voltage: 288V
Cell Type Applicable: LFP, NCM, LTO
Application: BESS, UPS, Solar Off Grid ESS, Container ESS
Communication: RS485 CAN LAN(IP/TCP)
Design Feature: AC, DC Dual Power Supply
Dispaly: 3.5" Builtin Touchscreen
Insulation Monitor: Optional
Event: 5000
Product Description

GCE 90S 288V 125A Relay High Voltage BMS for BESS UPS

Sistemas De Energia Solar Energy System Lifepo4 Battery For UPS ESS Solar

BESS For High Voltage battery energy storage systems Lifepo4 battery BMS For Large scale ESS Container BESS Micro Grid ESS Home ESS Carport ESS



Overall Solution BMS Offer:



One complete set of HV 90S288V 125A BMS solutions includes:

1set Master BMS, Model#: RBMS07-S23-125A288V

6sets of 15S Slave BMU Model#: BMU07-15S8T48F

6sets of 15S Wire Harness, including voltage&temperature acquisition wires,

BMU communication wires, Fan power wires.



A central control model#: SBMS07 will be required for multiple racks parallel connection applications, equipped

with a 7" display, the main control enables the communications among different racks. Customers can also make

some parameters setting and monitor the battery module status easily.





High Voltage Master BMS:

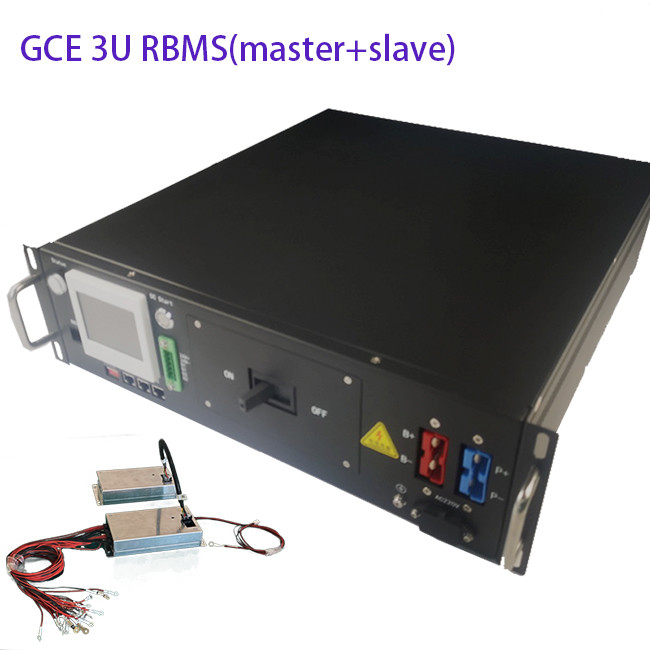

Large scale ESS Container Bms For Lifepo4 Battery 90S 288V 125A 0

Accessories:



Large scale ESS Container Bms For Lifepo4 Battery 90S 288V 125A 1 Large scale ESS Container Bms For Lifepo4 Battery 90S 288V 125A 2 Large scale ESS Container Bms For Lifepo4 Battery 90S 288V 125A 3

12S-24S BMU(Slave)

12S-24S BMU has 8pcs of temperature sensors, Fan voltage 48V(17S-24S 12V), voltage detection range 0-5V,12V power
supply,consumption less 20mA, CAN2.0 B communication

Wire harness-

Signal acquisition wire

18 Pin+20Pin wire, standard length is 600mm,900mm,1200mm tempreture sensor wire: standard length is 600mm,900mm,1200mm
Fan wire: 600mm

Wire harness-

communication wire

Communication wire is connecting from master BMS to each BMU with cascade connection, the last port is for terminal resistance





BMU Port:

Large scale ESS Container Bms For Lifepo4 Battery 90S 288V 125A 4

Large scale ESS Container Bms For Lifepo4 Battery 90S 288V 125A 5



Specification:



Product Name BMS(Battery Management System)
Model no. RBMS07-S23-125A192V
protecting method MCCB+Contactor
Rated Current range -250A~250A(Max. 500A)
Voltage Range 96V-1000V
Current Sampling Accuracy 1.0%FSR
Communication interface with PCS RS485/CAN
Communication interface with BMU CAN
Communication interface with SBMS RS485/CAN
Communication with monitoring software/EMS Ethernet
Support IAP upgrade Yes
Support HMI display and parameter No(Optional plugin)
Insulation detection Yes(Optional)
High voltage power module Support DC start (optional)
Dry contact output (normally open) No
Maximum qty of BMUs 20
Power 24VDC(18~28V)
Power consumption ≤20W
Size(W*H*D)mm 3U (482*132*500)
Way out Front
Tap center Support(Optional)
Net weight 23 kgs





Connection diagram of GBMS and CBMS:



Large scale ESS Container Bms For Lifepo4 Battery 90S 288V 125A 6





Working Environment:



Project Requirements
Installation Location Indoor installation only
altitude < 2000m
temperature range -20~60℃
Humidity range 10%~90% RH,no condensation





Applications:



Large scale ESS Container Bms For Lifepo4 Battery 90S 288V 125A 7





Strictly Prohibited:



1.There is high voltage inside the energy storage system, which is not technically authorized by our company or our company. It is forbidden to disassemble and maintain the chassis without authorization. Otherwise, there will be an electric shock and the warranty right will be lost



2.It is strictly forbidden to connect any wire end or connectors in the BMS to the positive and negative poles of the battery, otherwise the risk of short circuit may be caused and the circuit board may be damaged.



3.It is forbidden to approach the water source or fire source to avoid the battery from fire due to short circuit or overheating.



4.After the secondary protection is triggered, the circuit breaker is disconnected by the BMS. The system must be powered off to remove the fault, and the power can be turned on again after at least 1 minute. Otherwise, the circuit breaker shunt coil heat can not be dissipated and damaged.



5.If the battery needs to be used to cold start the UPS/PCS, the battery switch on the UPS/PCS side must be closed before starting the battery. If the battery is turned on first, then the battery switch on the UPS/PCS side is closed. Since the DC side of the UPS/PCS side generally has a large capacitance, the closing instantaneous capacitance is equivalent to a short circuit. At this time, the current charged by the battery to the capacitor is much higher than that inside the CBMS machine. Contactor rating, it is easy to cause ablation and adhesion of the contactor contacts, contactor contact resistance increases, heat is burned or the contacts can not be disconnected to trigger secondary protection.





Linkage for downloading specifications for master BMS and slave BMU:

GCE_RBMS specification--EN--V1.0.pdf

GCE 12-16S BMU-specification-UL-V1.0.pdf

Linkage for downloading of BMS demand information collection form:

high voltage BMS info collection form EN2021-04.do...
