GCE 1500V ESS High Voltage Lithium Battery Management System BMS Long Life Solar Energy Storage System

1 sets
MOQ
Negotiate with cara@hngce.com
Price
GCE 1500V ESS High Voltage Lithium Battery Management System BMS Long Life Solar Energy Storage System
Features Gallery Product Description Request A Quote
Features
Specifications
Features: DC&AC Dual Power Supply
Model Number: RBMS07-S20-200A1024V
Warranty: 3 Years
Application: BESS, UPS, ,home Solar Energy Storage, Island Off-grid Energy Storage,Micro-grid,Power System 220V DC Power Supply
Weight: 22kgs
Rack Configuration: Standalone Or Parallel
Display Screen: 3.5-inch,7-inch External Screen
Battery Type: LFP,NMC,LTO
Voltage: 1024V
Communiation: RS485 TCP/IP CAN DYR CONTACT
High Light:

ESS Lithium Battery Management System

,

BMS Battery Management System
Basic Infomation
Place of Origin: china
Brand Name: GCE
Certification: CE,UL
Model Number: RBMS07-S20-200A1024V
Payment & Shipping Terms
Packaging Details: Corrugated Carton, bundles, pallets, wooden box
Delivery Time: 30-45 days
Payment Terms: L/C, T/T
Supply Ability: 5000+Sets+Month
Product Description

GCE 1500V ESS High voltage lithium battery management system BMS quality long life solar energy storage system



Product system overview



GCE 1500V ESS High Voltage Lithium Battery Management System BMS Long Life Solar Energy Storage System 0



RBMS is a battery management systems developed for large-scale high-voltage battery energy storage system applications. Adopting distributed architecture and modular design concept, it is highly configurable, easy to assemble, debug and maintain, and is suitable for various battery energy storage systems with DC voltage above 1000V. The minimum configuration of this product is a two-level architecture (BMU+RBMS), which is suitable for 50KWh-200KWh system. Work together with the server and power station battery management system software, it can be a four-level architecture BMU+RBMS+SBMS+BBMS), which is suitable for sytem from 2MWh to 1000MWh to meet different project requirements.



Application scenarios

◎ PV power plant storage
◎ Island off-grid energy storage
◎ optical storage charge integration applications
◎ UPS power supply


GCE 1500V ESS High Voltage Lithium Battery Management System BMS Long Life Solar Energy Storage System 1

Specification
Basic Parameters
Rated current
200A
operation voltage
300V-1500V
Power consumption
≤15W
Current sampling accuracy
1%FSR
Insulation withstand voltage
4000VDC ＜1mA 1min
Protection level
IP20
Size(W*H*D)
482*180*500(mm)
New Weight
~22Kg
Communication
Interface
Communication port with BMU
CAN
Communication port with UPS
RS485/CAN
Communication port with SBMS
RS485/CAN
Communication with monitoring software
Ethernet
Basic Function
Battery charge & discharge management
Available
Battery temperature management
Available
IAP Upgrade
Available
System protection parameter setting
Available
Short circuit protection
available(1500V 20KA 20ms)
Pre-charge function
Available
Parallel circulation control
Available
Event record
Available(5000)
Dual power supply
Available(Battery + municipal power
supply, municipal power in priority)
Optional function
Insulation detection
Suitable for systems with voltages above 300V
HMI display
3.5 inches, 7 inches optional (external)
(optional)
Stand-alone or parallel function
Set up before leaving the factory
Dry contact
Maximum 2 dry contact outputs (optional)
Color
RAL7035 Grey white
Installation method
Suitable for standard 19-inch rack installation
Incoming and outgoing wire method
Front side in and front side out.
Operating ambient temperature
-20℃~60℃
Operating ambient humidity
5%~75%RH
Comply with National standards
GB/T 16935.1 GB/T 17626.2 GB/T
17626.5
Certification
Comply with CE certification standards

RBMS Interface Description

GCE 1500V ESS High Voltage Lithium Battery Management System BMS Long Life Solar Energy Storage System 2





No.
Name
Description
Precautions
1
B+ B-
Connect to the battery's total positive and total negative
Quick plug connection
2
P+ P-
Connect to the charging equipment (PCS) or DC bus
Quick plug connection
3
AC Input
The municipal power supply input port must be taken from the UPS/Inverter output side
85~264VAC 1A max
4
ON OFF
ON: The circuit breaker is ON.
OFF: The circuit breaker is disconnected
When the handle of the circuit breaker is in the trip state in the middle position, it needs to be turned OFF before it can be closed again.
5
D1 D1 D2 D2
Two dry contact output reserved
The default D1 is charging prohibited, D2 is discharging prohibited
6
Start
DC start button: start the RBMS system By taking power from the battery side.
The system is connected to the battery, and after the circuit breaker is closed, press and wait until the light is on to indicate
that the system is on
7
System
System status indicator
System normal: Green
Alarm: yellow light
Self test failure and protection status: red light
Charging: green light flashes
Discharge: red light flashing
Self checking: red and green flashing alternately
Pre-charging: yellow flashing
8
1 2 4 8
ID allocation: When multiple RBMS are
used in parallel, the ID are allocated by
setting the DIP switch. Must start at 1
There are 4 DIP switches in total, supporting up to 15 RBMS in parallel
1 ON: ID+1
2 ON: ID+2
3 ON: ID+4
4 ON: ID+8
9
TCP/IP
The RBMS host computer system software can be connected to the PC through the network cable
Network cable standard CAT5 or above, crossover cable or straight cable can be
used, the line sequence can be according
to the standard TIA-586A or TIA-568B
10
T-CAN
T-485
Terminal matching resistance setting
during can and 485 communication
Setting Description: (120R), on is valid
In parallel application, only the last one needs to be set. In stand-alone application, it can be used flexibly according to site conditions (interference, communication distance, etc.).
11
COM-IN
COM-OUT
RBMS external communication port: When multiple RBMS in parallel: Communication with SBMS
When RBMS Stand-alone: communicate with UPS/PCS external devices
The shielded twisted-pair cable harness
must be used randomly. The cable
sequence is defined in the cable harness
label
12
GND
HMI-B
HMI-A
24V
1.For external display connection
2.For powering SBMS
Please connect the display screen according to the silk screen sequence
13
BMU-OUT
Communication interface with BMU
Cascaded communication between BMU
14
㊤
RBMS chassis ground
Must be grounded, and the grounding
resistance is less than 1Ω

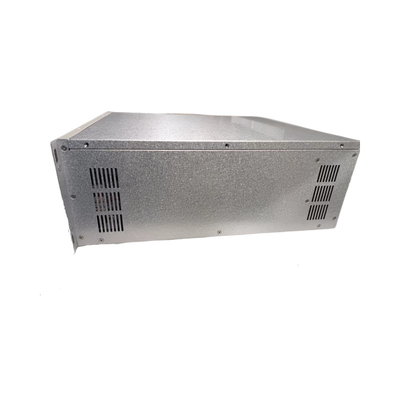

1024V 200Amp 4U RBMS
Communication protocol : Rs485,CAN, LAN
* 4U standard 19inch case
* Efficient, stable and reliable
* size:W485*H180*D550mm

GCE 1500V ESS High Voltage Lithium Battery Management System BMS Long Life Solar Energy Storage System 3

Accessories


GCE 1500V ESS High Voltage Lithium Battery Management System BMS Long Life Solar Energy Storage System 4

8S-24S BMU(Slave)

8S-24S BMU has 8pcs of tempreture sensors, Fan voltage 48V(17S-24S 12V), voltage detection range 0-5V,12V power supply,consumption less 20mA, CAN2.0 B communication
GCE 1500V ESS High Voltage Lithium Battery Management System BMS Long Life Solar Energy Storage System 5

Wire harness-Signal acquisition wire

18 Pin+20Pin wire, standard length is 600mm,900mm,1200mmtempreture sensor. wire: standard length is 600mm,900mm,1200mm
Fan wire: 600mm
GCE 1500V ESS High Voltage Lithium Battery Management System BMS Long Life Solar Energy Storage System 6

Wire harness-communication wire

Communication wire is connecting from master BMS to each BMU with cascade connection, the last port is for terminal resistance.wire: standard length is 180mm,300mm,600mm
