Product Details
Place of Origin: China
Brand Name: GCE
Certification: CE/RoHS/MSDS
Model Number: RBMS07-S23-125A480V
Payment & Shipping Terms
Minimum Order Quantity: 1 Sets
Price: negotiate with cara@hngce.com
Packaging Details: 685*560*200mm
Delivery Time: 15-30 working days
Payment Terms: L/C, T/T
Supply Ability: 1000 sets/per month
Communication Protocol: |
CAN, RS485, Modbus |
Battery Charge & Discharge Management: |
Available |
Operating Temperature: |
-20℃~60℃ |
Safety Protection: |
Overvoltage, Undervoltage, Overcurrent, Short Circuit |
Max. Charging Power: |
75KW |
Voltage Range: |
120-600V |
Battery Type: |
Lithium-ion(LFP)/NMC/LTO |
Max. Charging Current: |
125A |
Communication Protocol: |
CAN, RS485, Modbus |
Battery Charge & Discharge Management: |
Available |
Operating Temperature: |
-20℃~60℃ |
Safety Protection: |
Overvoltage, Undervoltage, Overcurrent, Short Circuit |
Max. Charging Power: |
75KW |
Voltage Range: |
120-600V |
Battery Type: |
Lithium-ion(LFP)/NMC/LTO |
Max. Charging Current: |
125A |

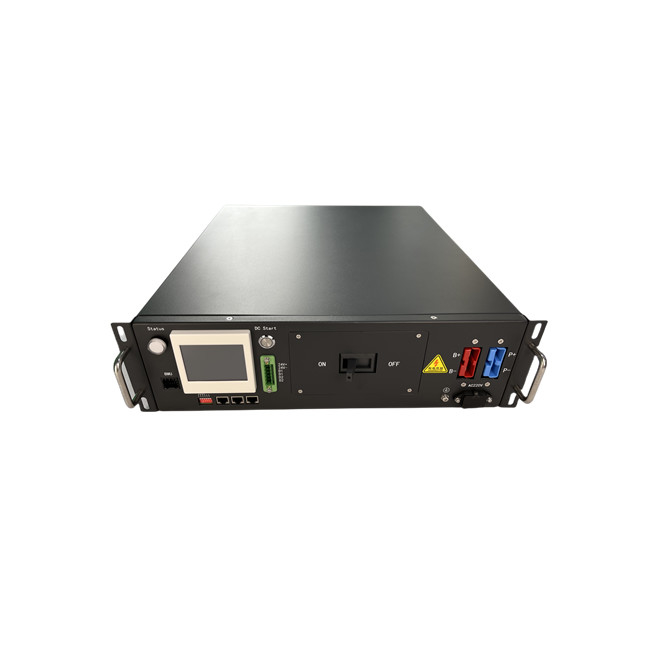

The RBMS07-S23-125A480V is a high voltage master BMS without parallel function and a 3.5-inch embedded screen. It is a two-wire system, meaning it does not have a mid-line. This model supports a maximum rated current of 125A and a rated voltage of 600V.
The advanced battery management system adopts a highly integrated design to realize seamless monitoring and self inspection.
A HMI display screen can make the operation information of the system clear at a glance, and reliable system control and protection strategies can ensure the safety of the battery pack and extend its service life.
The system features a modular design, configurable and expandable. It supports up to 160 batteries in series and can be flexibly combined to extend to a large energy storage system with multiple energy storage units.
In communication interfaces, the system supports RS485, CAN, Ethernet and dry contact input / output, and can communicate with most PCS and monitoring servers on the market.
The factory comes with our company's communication protocol and can be adapted to PCS of any manufacturer if need be. High-capacity memory chip is built-in to store a lot of key operation data, and an SD card can be additionally installed to store the historical data of the cell.
The system supports the parallel and offline connection of the battery packs, and the automatic circulation control and automatic parallel/offline control can easily realize the parallel connection of the battery packs.
For photovoltaic(PV) power plants, energy storage is a critical component to ensure stable power output. Island off-grid energy storage have applications in which energy stored mainly comes from solar photovoltaic and/or wind power generation. Optical storage charge integration applications integrate with grid-connected storage systems to reduce peak power outputs, as well as cost of electricity. Micro-grid applications use a local energy storage system to collect energy from a variety of sources to disburse power to buildings and communities in a local area. Uninterruptible Power Supply (UPS) systems, relying solely on energy storage, in the form of batteries or fuel cells, are needed to provide continuous power to critical applications even in the event of grid power outage. System 220V DC power supply units are designed to maintain DC power properly to specific power system loads.
The basic parameters of the BMS are as follows: Max Current 125A or 160A (optional); Max voltage 350V or 600V (optional); Power consumption ≤15W; Current sampling accuracy 1%FSR; Insulation withstand voltage 2800VDC <1mA 1min; Protection level IP20; Size(W*H*D) 482*132*500(mm); Net Weight ~16Kg.
Communication Port with BMU: CAN, Communication Port with UPS: RS485/ CAN, Communication Port with SBMS: RS485/CAN, Communication with monitoring software:Ethernet.
The basic functions include Battery charge&discharge Management, Battery Temperature Management, IAP Upgrade, System protection parameter setting, Short circuit protection (750V 20KA20ms), Pre-charge function, Parallel circulation control, and Event record (5000), DC power Start (battery powered, commercial power as on / off signal). Functions optional includes Insulation detection, applicabled for system voltage ≧300V, HMI display 3.5 inches screen (Embedded in BMS), Stand-alone or parallel function (Set up before leaving the factory), Dry contact of maximum 2 dry contact outputs (optional).
Other features include Appearance and Color RAL9005 Black; Installation method suitable for installation in standard 19-inch racks; Incoming and outgoing line mode of front side in and front side out; Operating ambient temperature range from -20℃ to 60℃, humidity from 5% to 75%RH; Comply with National standards of GB/T 16935.1, GB/T 17626.2 and GB/T 17626.5; and Safety certification meets CE certification standards.
High Voltage BMS Packaging and Shipping:
The High Voltage BMS is packaged and shipped in a sturdy cardboard box. It is filled with foam to protect the components during shipping. The package includes the High Voltage BMS, an instruction manual, and all the necessary cables and connectors. The package is then sealed and labeled with a tracking number.
Once the package is ready, it is shipped via a reliable courier service. The package is tracked and monitored from the moment it leaves the warehouse until it reaches the destination. The customer is also given a tracking number to follow the progress of their order.
