Product Details
Place of Origin: China,Hunan
Brand Name: GCE
Certification: CE/RoHS/SGS/MSDS
Model Number: RBMS07-S23-250A144V
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: negotiable email with emma@gcebms.com
Packaging Details: Corrugated Carton, bundles, pallets, wooden box
Delivery Time: 15-25 days
Payment Terms: FOB/CFR/EXW
Supply Ability: 5000 sets/month
Product Name: |
4U Battery Management System |
Max. Currentbient Humidity: |
125A.160A.200A.250A.（Optional） |
Power Consumption: |
≤15W |
Event Record: |
Available (5000) |
Protection Level: |
IP20 |
Current Sampling Accuracy: |
1%FSR |
Battery Type: |
Lithium-ion(LFP)/NMC/LTO |
Communication Port With BMU: |
CAN |
Product Name: |
4U Battery Management System |
Max. Currentbient Humidity: |
125A.160A.200A.250A.（Optional） |
Power Consumption: |
≤15W |
Event Record: |
Available (5000) |
Protection Level: |
IP20 |
Current Sampling Accuracy: |
1%FSR |
Battery Type: |
Lithium-ion(LFP)/NMC/LTO |
Communication Port With BMU: |
CAN |

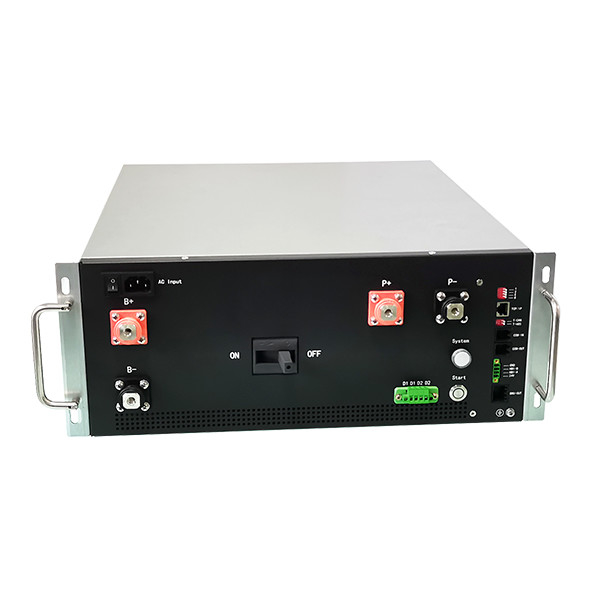

The Battery Management System (BMS) is a state-of-the-art technology designed to manage lithium-ion and lifepo4 batteries for maximum performance. It features a master-slave architecture that allows it to monitor and control a wide range of battery parameters such as voltage, current, temperature, and state of charge. With a maximum capacity of 5000 event records, it is ideal for applications requiring high-precision and reliable data logging. The BMS also offers a CAN communication port to interface with other battery monitoring and management systems. Furthermore, its rugged metal case and RAL9005 black sand grain finish make it suitable for use in harsh environments, with an operating temperature range of -20℃~60℃ and humidity of 5%~75%RH.
| Parameter | Value |
|---|---|
| Max. Voltage | 350V.700V.1000V(Optional) |
| Communication port with SBMS | RS485/CAN |
| Communication port with UPS | RS485/CAN |
| Communication port with SBMS | RS485/CAN |
| Current sampling accuracy | 1%FSR |
| Application | UPS, Solar Energy Storage System, Battery Energy Storage System |
| Operating Temperature | -20℃~60℃ |
| Installation Method | Suitable For Standard 19-inch Rack Installation |
| Operating Ambient Humidity | 5%~75%RH |
| Short circuit Protection | Support(6KA 20ms) |
| Power Consumption | ≤15W |
Brand Name: GCE
Model Number: RBMS07-S23-250A144V
Place of Origin: China,Hunan
Certification: CE/RoHS/SGS/MSDS
Minimum Order Quantity: 1set
Packaging Details: Corrugated Carton, bundles, pallets, wooden box
Delivery Time: 15-25 days
Payment Terms: FOB/CFR/EXW
Supply Ability: 5000 sets/month
Power consumption: ≤15W
Operating ambient humidity: 5%~75%RH
Communication port with BMU: CAN
Communication port with SBMS: RS485/CAN
Communication port with UPS: RS485/CAN
Highlights: high voltage bms, bms for lifepo4, backup battery system
At GCE, we provide comprehensive technical support and services for our Battery Management System (BMS) products in order to ensure the highest levels of reliability and performance.
We offer a range of support services to help you get the most out of your BMS, including:
In addition to our range of support services, we also offer professional services to help you manage and maintain your BMS, including:
For more information on our Battery Management System technical support and services, please contact us at emma@gcebms.com
The Battery Management System is packaged in a standard cardboard box to ensure safe delivery. The box is designed to be stackable and is printed with a barcode that includes the product model and serial number for easy tracking.
The box is sealed with packing tape and labeled with the shipping address. The Battery Management System will be shipped via a reputable courier or freight service and will include a tracking number.
