Product Details
Place of Origin: CHINA
Brand Name: GCE
Certification: CE UL TUV
Model Number: RBMS07-S23-125A460.8V
Payment & Shipping Terms
Minimum Order Quantity: 2
Price: negotiable
Packaging Details: Bubble bag, foam, carton
Delivery Time: 20~25days
Payment Terms: T/T, L/C
Supply Ability: 1000sets/month
|
Voltage:
|
460.8V
|
Warranty Years:
|
3 Years For RBMS And 1 Year For BMU/PCBs
|
Current:
|
125A
|
Application:
|
Lithium Batteries For BESS, UPS
|
MOQ:
|
2 Sets
|
Payment Terms:
|
T/T, L/C
|
Suitable:
|
LFP, NMC, LTO
|
BMU Range:
|
8S~24s
|
Insulation Withstand Voltage:
|
2800VDC ＜1mA 1min
|
Communication Interface:
|
RS485/CAN/Modbus
|
Display:
|
3.5" Built-in Display
|
Efficiency:
|
>90%
|
Frequency:
|
50/60Hz
|
Humidity:
|
20%-90%
|
Noise:
|
<50dB
|
Operating Temperature:
|
-10℃~+40℃
|
Output Voltage:
|
220V
|
Product Name:
|
UPS BMS
|
Protection Level:
|
IP20
|
Storage Temperature:
|
-20℃~+70℃
|
|
Voltage:
|
460.8V
|
|
Warranty Years:
|
3 Years For RBMS And 1 Year For BMU/PCBs
|
|
Current:
|
125A
|
|
Application:
|
Lithium Batteries For BESS, UPS
|
|
MOQ:
|
2 Sets
|
|
Payment Terms:
|
T/T, L/C
|
|
Suitable:
|
LFP, NMC, LTO
|
|
BMU Range:
|
8S~24s
|
|
Insulation Withstand Voltage:
|
2800VDC ＜1mA 1min
|
|
Communication Interface:
|
RS485/CAN/Modbus
|
|
Display:
|
3.5" Built-in Display
|
|
Efficiency:
|
>90%
|
|
Frequency:
|
50/60Hz
|
|
Humidity:
|
20%-90%
|
|
Noise:
|
<50dB
|
|
Operating Temperature:
|
-10℃~+40℃
|
|
Output Voltage:
|
220V
|
|
Product Name:
|
UPS BMS
|
|
Protection Level:
|
IP20
|
|
Storage Temperature:
|
-20℃~+70℃
|

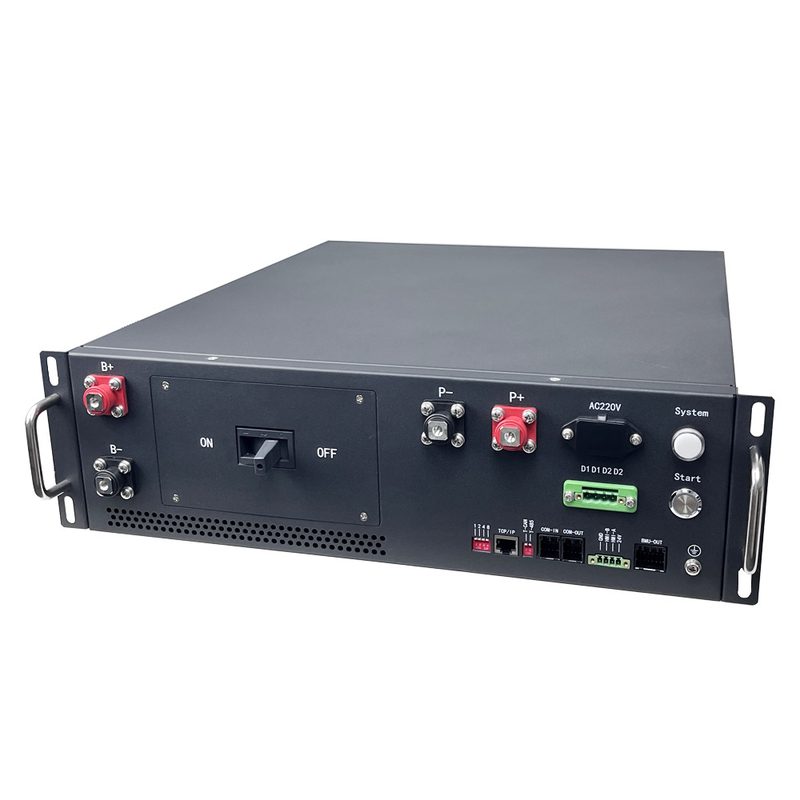

High Voltage Master BMS:
Sample Drawings Of Standard Products:
Specification:
| Product Name | BMS(Battery Management System) |
| Model no. | RBMS07-S23-125A460.8V |
| protecting method | MCCB+Contactor |
| Rated Current range | 250A |
| Voltage Range | 96V-1000V |
| Current Sampling Accuracy | 1.0%FSR |
| Communication interface with PCS | RS485/CAN |
| Communication interface with BMU | CAN |
| Communication interface with SBMS | RS485/CAN |
| Communication with monitoring software/EMS | Ethernet |
| Support IAP upgrade | Yes |
| Support HMI display and parameter | No(Optional plugin) |
| Insulation detection | Yes(Optional) |
| High voltage power module | Support DC start (optional) |
| Dry contact output (normally open) | No |
| Maximum qty of BMUs | 20 |
| Power | 24VDC(18~28V) |
| Power consumption | ≤20W |
| Size(W*H*D)mm | 3U (482*132*500) |
| Way out | Front |
| Tap center | Support(Optional) |
| Net weight | 23 kgs |
Communication:
Communication Interface
Communication port with BMU: CAN
Communication port with UPS: RS485/CAN
Communication port with SBMS: RS485/CAN
Communication with monitoring software: Ethernet
Current sampling accuracy: 1%FSR
BMS SYSTEM STRUCTURE:
