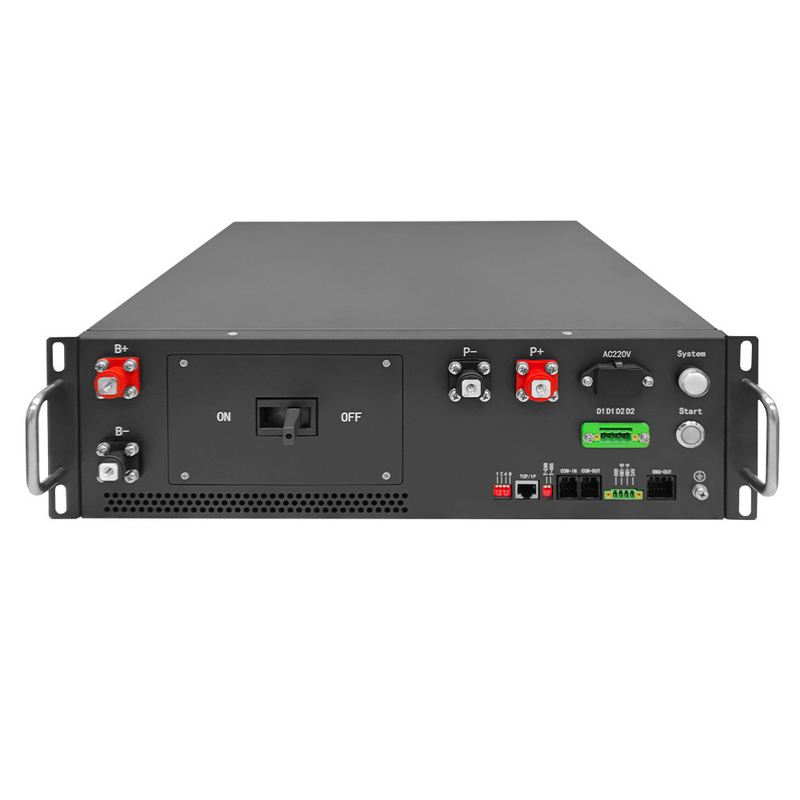

GCE High Voltage BMS 192S614.4V 125A Master Slave BMS For Solar Energy Storage System 1MWh 2MWh ESS BMS LFP System

Product Details

Place of Origin: China

Brand Name: GCE

Certification: CE/ROHS/MSDS

Model Number: RBMS07-S20H-125A614.4V

Payment & Shipping Terms

Minimum Order Quantity: 2 Set

Price: Negotiable with bruceliu@hngce.com, +86 13620097954(whatsapp)

Packaging Details: Corrugated Carton, bundles, pallets, wooden box

Delivery Time: 15-20 days

Payment Terms: FOB/CFR/EXW

Supply Ability: 5000pcs / month

Get Best Price
Highlight:
Parallel Connection:
Support Up To 15 BMS Connected In Parallel
Voltage:
614.4V (120V-750V)
Color:
Black
System Protection Parameter Setting:
Support
Compatible Inverter:
Deye, Growatt, Goodwe, Sofar, Atess, Sungrow, Bluesun...
Insulation Withstand Voltage:
2800VDC <1mA 1min
Operating Ambient Temperature:
-20℃~60℃
Current:
125A
Parallel Connection:
Support Up To 15 BMS Connected In Parallel
Voltage:
614.4V (120V-750V)
Color:
Black
System Protection Parameter Setting:
Support
Compatible Inverter:
Deye, Growatt, Goodwe, Sofar, Atess, Sungrow, Bluesun...
Insulation Withstand Voltage:
2800VDC <1mA 1min
Operating Ambient Temperature:
-20℃~60℃
Current:
125A
GCE High Voltage BMS 192S614.4V 125A Master Slave BMS For Solar Energy Storage System 1MWh 2MWh ESS BMS LFP System

GCE High Voltage BMS 192S614.4V 125A Master Slave BMS For Solar Energy Storage System 1MWh 2MWh ESS BMS LFP System

GCE High Voltage BMS: Powering Solar Energy Storage Systems

GCE Technology, a frontrunner in battery management systems (BMS), boasts a decade of profound expertise in the high-voltage BMS. Headquartered in China, GCE has been at the forefront of innovation, crafting BMS solutions capable of withstanding voltages up to 1500V. These systems are perfectly attuned to lithium-ion batteries, including LFP, NMC, and LTO chemistries, which are prevalent in UPS, residential, commercial, and industrial energy storage applications.

The BMS offerings from GCE are designed to support two- and three-level configurations, facilitating their integration into energy storage systems on various scales, from kWh to MWh. Moreover, GCE's BMS ensures compatibility with a spectrum of renowned inverter brands, including Deye, Kehua, Sofar, Growatt, Sinexcel, ATESS, Sungrow, Goodwe, Megarevo, and Voltronic Power, thereby enhancing system flexibility and compatibility.

GCE High Voltage BMS 192S614.4V 125A Master Slave BMS For Solar Energy Storage System 1MWh 2MWh ESS BMS LFP System 0GCE High Voltage BMS 192S614.4V 125A Master Slave BMS For Solar Energy Storage System 1MWh 2MWh ESS BMS LFP System 1GCE High Voltage BMS 192S614.4V 125A Master Slave BMS For Solar Energy Storage System 1MWh 2MWh ESS BMS LFP System 2GCE High Voltage BMS 192S614.4V 125A Master Slave BMS For Solar Energy Storage System 1MWh 2MWh ESS BMS LFP System 3GCE High Voltage BMS 192S614.4V 125A Master Slave BMS For Solar Energy Storage System 1MWh 2MWh ESS BMS LFP System 4

Technical Specifications of GCE BMS:

  • Max Current: 125A
  • Rated Voltage: 350V / 750V (Optional)
  • Power Consumption: ≤15W
  • Current Sampling Accuracy: 1%FSR
  • Insulation Withstand Voltage: 2800VDC <1mA for 1 minute
  • Protection Level: IP20
  • Dimensions: 482 * 132 * 500(mm)
  • Net Weight: 16Kg
  • Communication Ports: CAN for BMU, RS485/CAN for UPS, RS485/CAN for SBMS, Ethernet for PC software
  • Basic Functions: Include battery charge & discharge management, temperature management, IAP upgrade, system protection settings, short circuit protection, precharge function, and parallel loop current control
  • Event Record Capacity: Supports 5000 records
  • Optional Features: Include monitor insulation for ≥300V, an HMI display, and dry contact outputs



Applications of GCE High Voltage BMS:

GCE's high-voltage BMS are integral to a spectrum of energy storage applications, particularly in harnessing renewable energy sources like solar and wind. These systems are pivotal in residential, commercial, and grid-scale setups, optimizing the management of energy storage to ensure reliability, efficiency, and longevity.

The industrial sector also reaps the benefits of GCE's BMS in applications such as Automated Guided Vehicles (AGVs) and Uninterruptible Power Supplies (UPS), where consistent operation is critical. GCE's BMS solutions are engineered to maximize equipment uptime, operational efficiency, and service life.

About Hunan GCE Technology Co., Ltd.:

Specializing in the R&D and production of BMS and energy storage systems, Hunan GCE Technology Co., Ltd. has been a mainstay in the industry for over 10 years. Their products serve a wide range of applications, from industrial and commercial energy storage to home energy storage solutions.

Packing and Shipping Information:

  • Shipping Methods: By Sea, By Air, By Railway, By Express
  • Arrival Point: As specified by the customer (Seaport, Airport, Railway station, or Door)
  • Origin: Any port or station in China
  • Packing List: Includes 3U BMS, voltage and temperature acquisition wires, fan wires, and communication cables.

GCE ensures that every product is meticulously packed and shipped according to the customer's specified method, guaranteeing safe and timely delivery.
