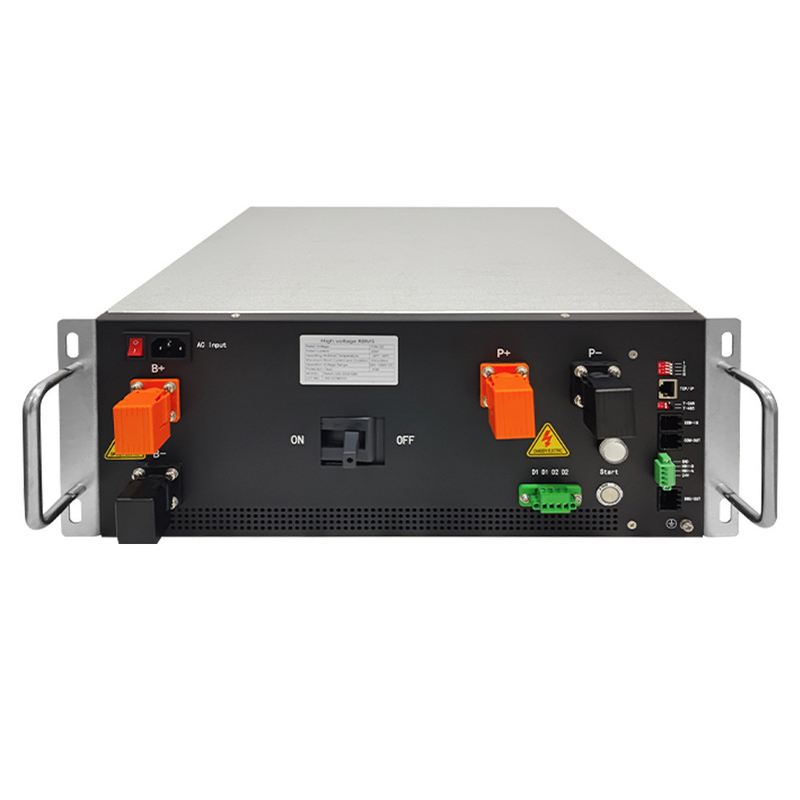

GCE 255S 816V 200A Master BMS Used For ESS/UPS Application

Name: GCE 255S 816V 200A Master BMS Used For ESS/UPS Application
Brand: Hunan GCE Technology Co.,Ltd
SKU: RBMS-S20-200A816V
Price: 100000000.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Gce Hv BMS

Certification: GB/T 16935.1 GB/T 17626.2 GB/T 17626.5 CE

Model Number: RBMS-S20-200A816V

Document: GCE HV BMS 4U RBMS specific...on.pdf

Payment & Shipping Terms

Minimum Order Quantity: 2 Sets

Price: Negotiable with toby@hngce.com

Packaging Details: Carton packaging

Delivery Time: 15 days after receive the payment

Payment Terms: T/T

Supply Ability: 2000 sets in one month

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                            816V Master BMS, 200A Master BMS, ESS/UPS Master BMS


Features:	DC&AC Dual Power Supply	Dimension:	485220550mm
Master Bms Height:	4U	Balancing Current:	200mA
Operating Temperature:	-20℃~+60℃	Carton Size:	670560240mm
Battery Type:	LFP, NMC, LTO	Control Strategy:	SOC/SOH
Size:	485mm220mm550mm	Communication Type:	CAN RS485 TCPIP
Weight:	35kgs	Insulation Detection:	For Minimum 300V Systems
Cell Voltage Accuracy:	±5mV	Bms Type:	5U BMS
Current Collection:	Hall Sensor

Features:	DC&AC Dual Power Supply
Dimension:	485220550mm
Master Bms Height:	4U
Balancing Current:	200mA
Operating Temperature:	-20℃~+60℃
Carton Size:	670560240mm
Battery Type:	LFP, NMC, LTO
Control Strategy:	SOC/SOH
Size:	485mm220mm550mm
Communication Type:	CAN RS485 TCPIP
Weight:	35kgs
Insulation Detection:	For Minimum 300V Systems
Cell Voltage Accuracy:	±5mV
Bms Type:	5U BMS
Current Collection:	Hall Sensor

GCE 255S 816V 200A Master BMS Used For ESS/UPS Application

1. Application scenarios

◎ Battery Energy Storage System(BESS)

◎ Off-grid energy storage

◎ Data Center

◎ Grid frequency modulation energy storage

◎ Track power / traction

◎ LFP UPS power supply

2. Product system overview

RBMS products are battery management systems developed for large-scale high-voltage battery energystorage systems and UPS applications. Adopting distributed architecture and modular design concept, itis highly configurable, easy to assemble, debug and maintain, and is suitable for various battery energystorage systems with DC voltage below 1000V.

This product can be configured as a minimum two-level architecture (BMU+RBMS), suitable for 10KWh-100KWh occasions. Cooperating with industrial computer and battery stack management software.

It can form a three-level structure (BMU+RBMS+SBMS), which is suitable for 50KWh-2MWh occasions. Cooperating with the server and power station battery management system software.

It can form a four-level architecture (BMU+RBMS+SBMS+BBMS), which is suitable for occasions from 2MWh to 1000MWh to meet different project requirements.

The product has a complete and reliable operation and protection strategy, which effectively extend the life of the battery pack. With various communication interfaces, it can be directly or indirectly interfaced with third-party energy management systems.

3.RBMS main technical parameters

4.RBMS Dimension

GCE 255S 816V 200A Master BMS Used For ESS/UPS Application 3
