Smart Lifepo4 Li Ion Bms System 120S 384V 160A For BESS UPS Solar PV

2
MOQ
Please contact: ellen@hngce.com
Price
Smart Lifepo4 Li Ion Bms System 120S 384V 160A For BESS UPS Solar PV
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Battery Management System (BMS)
Battery Type: LFP/NMC/LTO
Charge And Discharge Current: 125Amp 160Amp
Communication: RS485,CAN,Dry Contact,LAN
Voltage: 384V 120S
Touch Screen: 3.5-inch
Application: Solar Energy Storage System,Date Centre,BESS,UPS,,Boat
Warranty: 3-years
High Light:

Lifepo4 Li Ion Bms

,

Li Ion Bms 120S

,

BESS UPS lithium bms system

Basic Infomation
Place of Origin: China
Brand Name: GCE
Certification: CE
Model Number: RBMS07S2-3-160A384V
Payment & Shipping Terms
Packaging Details: Blister & Carton
Delivery Time: 10-15 work days
Payment Terms: T/T, L/C
Supply Ability: 20000sets / Month
Product Description

Battery Management System Lithium Ion 120S 384V 160A Smart BMS Lifepo4 BMS 15S 16S BMU In Series For BESS UPS Solar PV






BMS Configuration

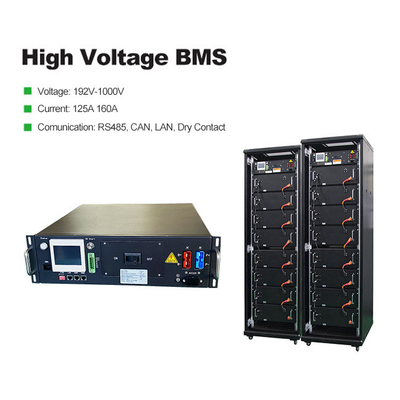

120S 384V 160A High Voltage BMS * 1set

15S BMU *8sets

15S wire harness * 8sets

(15S48V battery module, 5 modules in series for 120S 384V 160A system)

Smart Lifepo4 Li Ion Bms System 120S 384V 160A For BESS UPS Solar PV 0
* 4U BMS: Voltage 240V-1000V. Current 250A
* Slave BMU: 12s-16S, 17-24s
* Wire harness standard length 600mm,900mm,1200mm with M4/M6 terminal
* Support multiple BMS connected in paralle to achieve higher capacity.





Specification


Product Name
BMS
Model no.
RBMS07S2-3-125A384V
protecting method
MCCB+Contactor
Rated Current range
-125A~125A
Voltage Range
48V-384V
Current Sampling Accuracy
1.0%FSR
Communication interface with PCS
RS485/CAN
Communication interface with BMU
CAN
Communication interface with SBMS
RS485/CAN
Communication with monitoring software/EMS
Ethernet
Support IAP upgrade
Yes
Support HMI display and parameter
Yes(Optional)
Insulation detection
Yes(Optional)
High voltage power module
Support DC start (optional)
Dry contact output (normally open)
Up to 3
Maximum qty of BMUs
13
Power
24VDC(18~28V)
Power consumption
≤20W
Size(W*H*D)mm
3U (440*133*500)
Way out
Front
Tap center
Not support
Net weight
17kg













Products Display


     Smart Lifepo4 Li Ion Bms System 120S 384V 160A For BESS UPS Solar PV 1

     Smart Lifepo4 Li Ion Bms System 120S 384V 160A For BESS UPS Solar PV 2

Smart Lifepo4 Li Ion Bms System 120S 384V 160A For BESS UPS Solar PV 3

Smart Lifepo4 Li Ion Bms System 120S 384V 160A For BESS UPS Solar PV 4

Smart Lifepo4 Li Ion Bms System 120S 384V 160A For BESS UPS Solar PV 5





BMS Application


GCE HV BMS for solar power system

GCE HV BMS for UPS battery bank

GCE HV BMS for photovoltaic farm

GCE HV BMS for data center

GCE HV BMS for wind energy storage system

GCE HV BMS for off grid energy storage system

GCE HV BMS for industrial and commercial energy storage





FAQ




Q. What is your MOQ?
A: 1set is available for quality checking and market testing.


Q. How long is the lead time?
A: 12-15 workdays.


Q. How is your warranty?
A: 3-years.


Q. What is the difference between smart BMS and non-smart BMS?
A: Smart BMS can be connected PC, CANBUS and RS485. You can see battery information real time.


Q. What specification of BMS do you have ?
A: 96V-1000V 50A~500A for LFP, NCM. LTO Batteries.

Integrated BMS: 30S, 40S, 50S, 60S, 64S, 75S, 96V-240V 50A / 100A

2U BMS: 192V, 240V, 256V, 288V,336V,384V......500V

3U BMS:192V, 240V, 256V, 288V,336V,384V, 432V, 512V, 480V, 768V, 864V.....1000V, 125A / 160A

4U BMS: 192V, 240V, 256V, 288V,336V,384V, 432V, 512V, 480V, 768V, 864V.....1000V, 250A

5U BMS: 192V,204.8V, 358.4V, 409.6V, 460.8V, 716.8V,......1000V, 400A / 500A
