UPS ESS Solar BMS Lifepo4 , 120S 384V 160A Lead Acid Battery Management System
2
MOQ
negotiable
Price
UPS ESS Solar BMS Lifepo4 , 120S 384V 160A Lead Acid Battery Management System
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: CHINA
Brand Name: GCE
Certification: CE UL TUV
Model Number: RBMS07-S20-160A384V
High Light:

ESS Solar BMS Lifepo4

,

384V Li Ion Battery BMS

,

160A Lead Acid Battery Management System

Payment & Shipping Terms
Packaging Details: Bubble bag, foam, carton
Delivery Time: 20 working days
Payment Terms: T/T, L/C
Supply Ability: 500sets per month
Specifications
Warranty: 3years
Product Name: Battery Management System
Application: UPS BESS Solar Off Grid ESS Container ESS
Design Feature: AC DC Daul Power
Nominal Voltage: 384V
Communication Port: LAN, RS485, CAN
Pack String No.: 120S
Brand: GCE
Monthly Supply Capacity: 1000sets
Type: Li Ion Battery BMS
Weight: 21KGS
Color: Black
Product Description



Lifepo4 BMS 120S 384V 160A BMS for UPS ESS Solar Off-Grid BESS Sistema De Gestion De Bateria



Company introduction:



Hunan Group Control Energy Technology Co., Ltd.(GCE) is a high-tech company specializing in the research and development of BMS and lithium battery peripheral equipment. The high-performance intelligent lithium battery management system produced by our company adopts the international leading technology, which greatly improves the battery management efficiency and prolongs the service life of lithium batteries. The advanced BMS control strategy avoids the difficulties and instability faced by most competitors for our BMS.



4S to 24s low voltage software BMS has a wide range of uses, rich product interfaces, strong scalability, and secondary development compatibility; 30s to 75s BMS adopts master-slave integrated design and relay solution to meet the lithium battery demand of multiple strings of small capacity batteries. Greatly reduce the use cost of users; 60s-270s adopts master-slave three-level architecture, which can meet the series and parallel requirements of high-capacity single lithium batteries within 1000V.

By mastering the core technology of BMS and inventing on this basis, our company has developed a variety of lithium battery peripherals to meet the high-quality needs of the market.



HV Overall Solution BMS Configuration:



One complete set of HV 120S384V 160A BMS solutions includes:

1set Master BMS, Model#: RBMS07-S20-160A384V

8sets 15S Slave BMU Model#: BMU07-15S8T48F

8sets 15S Wire Harness

Wire harness includes:

Voltage&Temperature acquisition wire,

BMU External Communication Wire with Shenji Port,

The power wire for the Fan.



UPS ESS Solar BMS Lifepo4 , 120S 384V 160A Lead Acid Battery Management System 0

UPS ESS Solar BMS Lifepo4 , 120S 384V 160A Lead Acid Battery Management System 1 UPS ESS Solar BMS Lifepo4 , 120S 384V 160A Lead Acid Battery Management System 2 UPS ESS Solar BMS Lifepo4 , 120S 384V 160A Lead Acid Battery Management System 3

12S-24S BMU(Slave)

12S-24S BMU has 8pcs of temperature sensors, Fan voltage 48V(17S-24S 12V), voltage detection range 0-5V,12V power supply, consumption less 20mA, CAN2.0 B communication

Wire harness-

Signal acquisition wire

18 P+20P wire, standard length 600mm,900mm,1200mm temperature sensor wire: standard length: 600mm,900mm,1200mm

Fan Power wire: 600mm

Wire harness-

communication wire

Communication wire is connecting from master BMS to each BMU with cascade connection, the last port is for terminal resistance





BMS technical parameters:

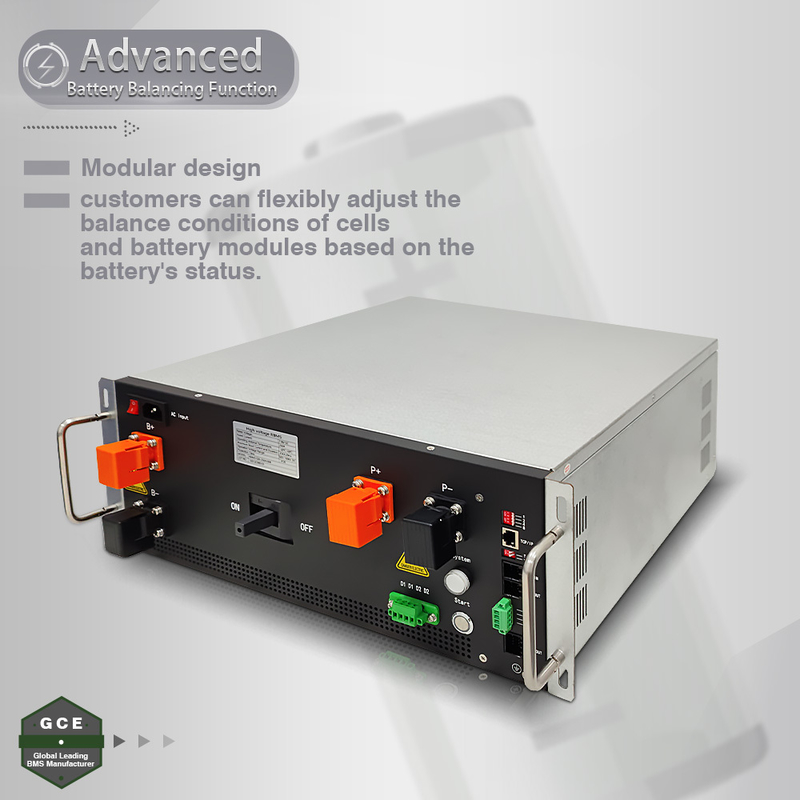

RBMS(master BMS) 4U-125A/160A/250A
protecting method MCCB+Contactor
Rated Current range -250A~250A
Voltage range 384V-1000V
Current sampling accuracy 1.0%FSR
Communication interface with PCS RS485/CAN
Communication interface with BMU CAN
Communication interface with GBMS RS485/CAN
Communication with monitoring software/EMS Ethernet
Support IAP upgrade Yes
Support HMI display and parameter settings No(OptionalPlug in)
Insulation detection Yes(Optional)
High voltage power module Support DC start (optional)
Dry contact output (normally open) None
Maximum qty of BMUs 18
Power 24VDC(18~28V)
Power consumption 25W
Size (W*H*D)mm 4U
(440*178*500)
Connection Way out Back and front
Tap center support(optional)
net weight 23kg



GCE high voltage BMS features:



1 Advanced battery management system---The highly integrated battery management system can realize seamless monitoring.
2

Perfect self-checking and running status checking function, with HMI display screen,

system running information is clear at a glance.

3 Complete and reliable system control and protection strategies, comprehensively guarantee battery safety and escort to extend the life of battery packs.
4

Modular design, configurable and expandable---multiple energy storage units can be

flexibly combined and expanded into a larger energy storage system.

5

Abundant communication interfaces---multiple RS485, CAN, Ethernet, dry contact input

and output interfaces, supporting communication with most PCS and monitoring servers on the market.

6

The communication interface protocol is flexible---the factory comes with the company's

communication protocol, and it can also be adapted to the PCS of different manufacturers according to customer needs.

7 The built-in large-capacity memory chip can store a large amount of key operating data, and an SD card can be added to realize battery historical data storage
8

Automatic circulation control and automatic parallel/offline control can easily realize the

parallel connection of battery packs.





Applications:



UPS ESS Solar BMS Lifepo4 , 120S 384V 160A Lead Acid Battery Management System 4



FQAs:

  • Q: Are you a manufacturer or simply a trading company?
    A: We are a manufacturer, and we sincerely welcome you to visit our factory.
  • Q: Can I get some samples?
    A: Yes, a sample order is available for quality checking and market testing.
  • Q: What kind of cells are applicable to this Battery Management System?
    A: LFP, NMC, LTO
  • Q. How about the delivery time?
    A: The lead-time usually takes about 15 to 20 working days accordingly to the specification of your order and quantity.
  • Q. What are your terms of payment?
    A: Advanced T/T is the main payment term, and other payment terms are negotiable. Please contact us, we’ll discuss the details.
  • Q: What are your warranty terms?
    A: We offer a 3-year warranty.
  • Q. Can you produce BMS with customization requirements?
    A: Yes, based on the order quantity, we can make some small adjustments.
  • Q: How does your factory do regarding quality control?
    A: Quality always comes first. All our products go through strict quality control processes from incoming material to the assembling process. Each product will be tested before packing & shipping.
  • Q: What Trade Terms are available?
    A: No limitation on the trade terms. We normally do EXW for orders amounts smaller than 5000USD, and FOB for the rest ones. Moreover, we can send BMSs via DHL&UPS&FEDEX quickly and easily.
