Lifepo4 BMS 255S 816V 250A ESS UPS BMS for Solar Off-Grid BESS Sistema De Gestion De Bateria
GCE HV-BMS products list:
One complete set of HV 255S816V 250A BMS solutions includes:
1set Master BMS, Model#: RBMS07-S20-250A816V
17sets 15S Slave BMU Model#: BMU07-15S8T48F
17sets 15S Wire Harness
15S Wire harness includes:
Voltage&Temperature acquisition wire,
BMU External Communication Wire with Shenji Port,
The power wire for the Fan.
GCE high voltage BMS products pictures:

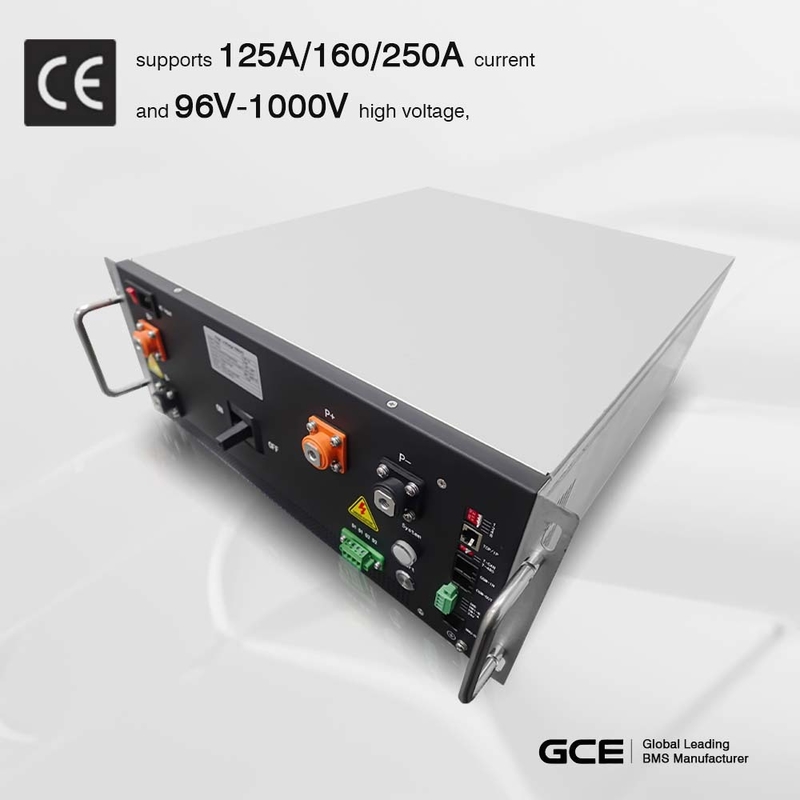

RBMS(master BMS) it's GCE main control box. RBMS is consist of main control PCB, relays/contactors, charge and discharge current detecting euquipments, DC power, breakers, communication rs485, CAN TCPIP and other interfaces and connectors.
BMU(slave BMS) has 8S, 12S-16S, 17S-24S three types of bmu. you can make any types of battery packs according to your cell capacity , weight, and size as basic modules.
SBMS (Stack BMS), stack means 2 or more battery racks in parallel, then SBMS is necessary, because you need to make all the racks in parallel and get battery health information from each cell, SBMS has a 7 inch touch screen ,it's enough to display all information.
GCE HV-BMS technical parameters:
RBMS(master BMS) | 4U-125A/160A/250A |
protecting method | MCCB+Contactor |
Rated Current range | -250A~250A |
Voltage range | 384V-1000V |
Current sampling accuracy | 1.0%FSR |
Communication interface with PCS | RS485/CAN |
Communication interface with BMU | CAN |
Communication interface with GBMS | RS485/CAN |
Communication with monitoring software/EMS | Ethernet |
Support IAP upgrade | Yes |
Support HMI display and parameter settings | No(OptionalPlug in) |
Insulation detection | Yes(Optional) |
High voltage power module | Support DC start (optional) |
Dry contact output (normally open) | None |
Maximum qty of BMUs | 18 |
Power | 24VDC(18~28V) |
Power consumption | ≤25W |
Size (W*H*D)mm | 4U |
(440*178*500) | |
Connection Way out | Back and front |
Tap center | support(optional) |
net weight | 23kg |
GCE high voltage BMS features:
1 | Advanced battery management system------The highly integrated battery management system can realize seamless monitoring. |
2 |
Perfect self-checking and running status checking function, with HMI display screen,3.5inch and 7 inch touch screen optional .system running information is clear at a glance. |
3 | Complete and reliable system control and protection strategies, comprehensively guarantee battery safety, and escort to extend the life of battery packs. |
4 |
Modular design, configurable and expandable-----multiple energy storage units can be flexibly combined and expanded into 1GWh as a larger energy storage system. |
5 |
Abundant communication interfaces---multiple RS485, CAN, Ethernet, dry contact input and output interfaces, supporting communication with most PCS/inverter and monitoring servers in the market. |
6 |
The communication interface protocol is flexible-----the factory comes with the company's communication protocol, and it can also be adapted to the PCS of different manufacturers according to customer needs. |
7 | The built-in large-capacity memory chip can store a large amount of key operating data, and an SD card can be added to realize battery historical data storage |
8 |
Automatic circulation control and automatic parallel/offline control can easily realize the parallel connection of battery packs. |
Linkage for specification download:
GCE_RBMS specification--EN--V1.0.pdf
GCE 12-16S BMU-specification-UL-V1.0.pdf
high voltage BMS info collection form EN2021-04.do...
