Product Details
Place of Origin: China
Brand Name: GCE
Certification: CE
Model Number: RBMS07S2-3-125A384V
Payment & Shipping Terms
Minimum Order Quantity: 2
Price: Please contact: ellen@hngce.com
Packaging Details: Blister & Carton
Delivery Time: 10-15 work days
Payment Terms: T/T, L/C
Supply Ability: 5000sets / Month
Product Name: |
BMS (Battery Management System) |
Battery Type: |
LFP / LTO / NMC |
Charge And Discharge Current: |
125A / 160A |
Communication: |
CAN / RS485 |
Strings: |
120S（15S*8） |
Touch Screen: |
3.5 Inch |
Application: |
Solar Energy Storage Systems, Solar, Wind, UPS, Home Energy Storage |
Warranty: |
3 Years |
Voltage: |
384V(192V-600V Is Acceptable) |
Product Name: |
BMS (Battery Management System) |
Battery Type: |
LFP / LTO / NMC |
Charge And Discharge Current: |
125A / 160A |
Communication: |
CAN / RS485 |
Strings: |
120S（15S*8） |
Touch Screen: |
3.5 Inch |
Application: |
Solar Energy Storage Systems, Solar, Wind, UPS, Home Energy Storage |
Warranty: |
3 Years |
Voltage: |
384V(192V-600V Is Acceptable) |

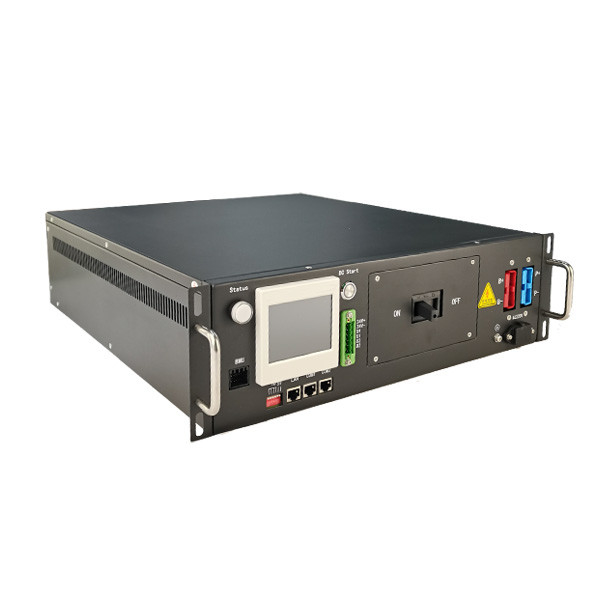

GCE BMS (Master-Slave BMS)
Battery Management System 120S 384 125A GCE BMS For Solar Battery Energy Storage System WITH RS48S CAN BUS Protocol
BMS Configuration
120S 384V 125A High Voltage BMS * 1set
15S BMU *8sets
15S wire harness * 8sets
(15S48V battery module, 8 modules in series for 120S 384V 125A system)
Application
Smart BMS for Lithium ion Battery Pack
Smart BMS for Battery Energy Storage System(BESS)
Smart BMS for Photovoltaic Farm
Smart BMS for Off-grid energy storage
Smart BMS for Data Centre
Smart BMS for Wind Energy Storage
Smart BMS for Solar
Smart BMS for Grid frequency modulation energy storage
Smart BMS UPS power supply
Smart BMS for LifePO4 pack
Smart BMS for lithium ion batteri pack
Specification
|
Product Name
|
Battery Management System (BMS)
|
|
Model no.
|
RBMS07S2-3-125A384V
|
|
protecting method
|
MCCB+Contactor
|
|
Rated Current range
|
-125A~125A
|
|
Voltage Range
|
48V-384V
|
|
Current Sampling Accuracy
|
1.0%FSR
|
|
Communication interface with PCS
|
RS485/CAN
|
|
Communication interface with BMU
|
CAN
|
|
Communication interface with SBMS
|
RS485/CAN
|
|
Communication with monitoring software/EMS
|
Ethernet
|
|
Support IAP upgrade
|
Yes
|
|
Support HMI display and parameter
|
Yes(Optional)
|
|
Insulation detection
|
Yes(Optional)
|
|
High voltage power module
|
Support DC start (optional)
|
|
Dry contact output (normally open)
|
Up to 3
|
|
Maximum qty of BMUs
|
13
|
|
Power
|
24VDC(18~28V)
|
|
Power consumption
|
≤20W
|
|

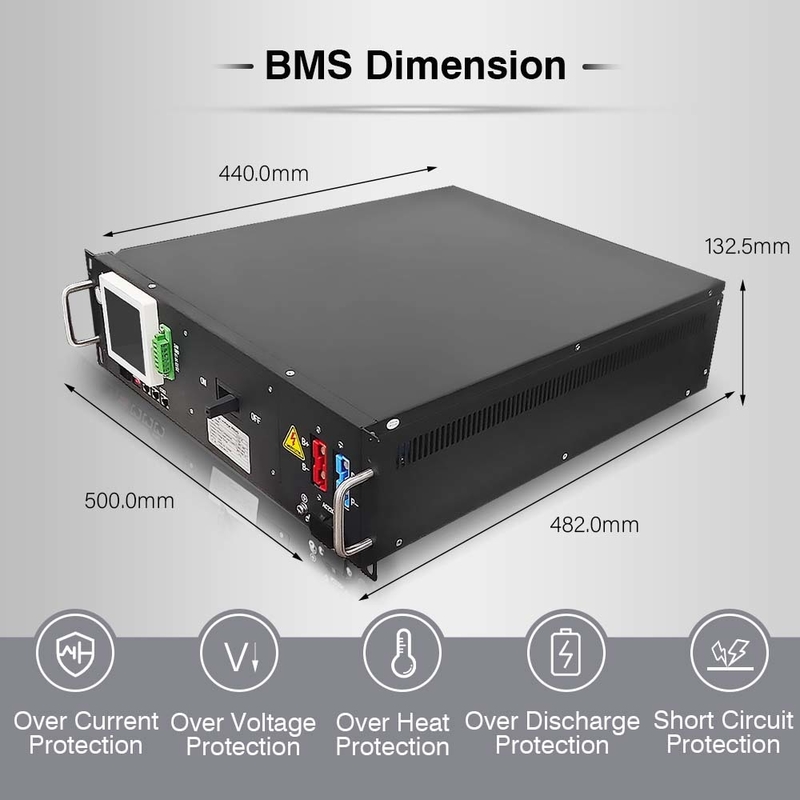

Size(W*H*D)mm
|
3U (440*133*500)
|
|
Way out
|
Front
|
|
Tap center
|
Not support
|
|
Net weight
|
17kg
|
Products Display
Product Feature
* Multiple commmunication interface
RS485, CAN, Ethernet, dry contact input and output interfaces, which can establish communication with most PCS and inverter in the market.
* With 3.5inch / 7inch HMI display
Perfect self-test and running status detection function, with HMI display screen, the system running information is clear at a glance.
* Intelligent Cell Balancing
Efficient passive balancing is used to maximize the usable capacity of battery packs.
* Health Monitoring
Monitors internal resistance of individual cells and the measured capacity of the battery pack.
* Field Programmable
Parameters such as voltage ranges, current limits and many other settings are easily field changeable.
* Current & Voltage Protection
Protects the battery pack from over-charge and over-discharge thereby extending cycle life.
* Thermal Management
Over-temperature and under-temperature protection with fan controls for cooling or heating.
