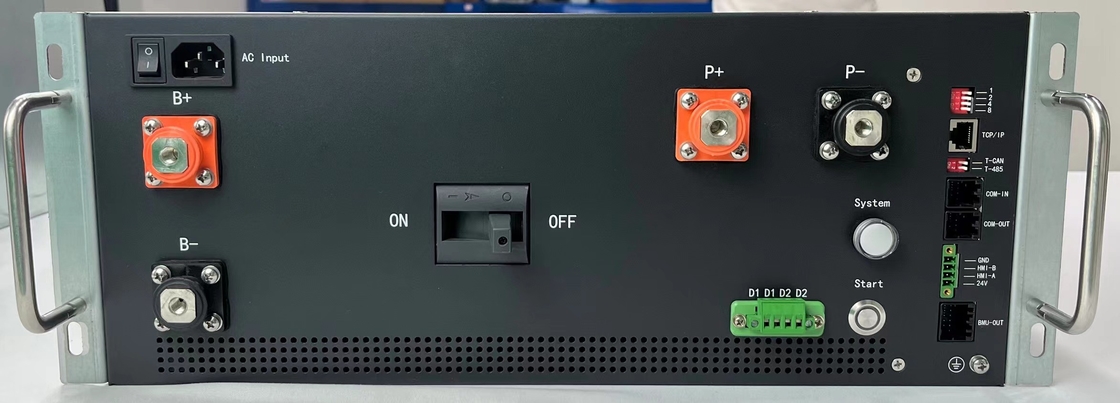

160S 512V 250A Master Slave BMS With Relay Breaker 16S BMU
2
MOQ
Negotiable
Price
160S 512V 250A Master Slave BMS With Relay Breaker 16S BMU
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: china
Brand Name: GCE
Certification: CE UL
Model Number: RBMS07S20-250A512V
High Light:

250A Master Slave BMS

,

512V Master Slave BMS

,

BMS With Relay 16S BMU

Payment & Shipping Terms
Packaging Details: Corrugated Carton,770*560*240mm
Delivery Time: 8-15 days
Payment Terms: L/C, T/T
Supply Ability: 10000+pcs+1 month
Specifications
Material: Iron
Color: Black And Silver
Communication: CAN, RS485C
OEM/ODM: Acceptable
Warranty: 3 Years
Application: Solar, Wind, UPS, EV Car,Home Appliances,Boats,Energy Storage System
Product Name: Battery Management System
Product Description

160S 512V 250A high voltage BMS master slave BMS with relay breaker 16S BMU battery BMS for lithium ion battery pack





--Company Profile--



Hunan Group Control Energy(GCE) technology Co., Ltd., a high-tech company specializing in the research and development of BMS and lithium battery peripheral equipment. The high-performance intelligent lithium battery management system produced by our company adopts the international leading technology, which greatly improves the battery management efficiency and prolongs the service life of lithium batteries. The advanced BMS control strategy avoids the difficulties and instability faced by most competitors for our BMS.



4S to 24s low voltage software BMS has a wide range of uses, rich product interfaces, strong scalability, and secondary development compatibility; 30s to 75s BMS adopts master-slave integrated design and relay solution to meet the lithium battery demand of multiple strings of small capacity batteries. Greatly reduce the use cost of users; 60s-270s adopts master-slave three-level architecture, which can meet the series and parallel requirements of high-capacity single lithium batteries within 1000V.



By mastering the core technology of BMS and inventing on this basis, our company has developed a variety of lithium battery peripherals to meet the high-quality needs of the market.



160S 512V 250A Master Slave BMS With Relay Breaker 16S BMU 0



160S 512V 250A Master Slave BMS With Relay Breaker 16S BMU 1



160S 512V 250A Master Slave BMS With Relay Breaker 16S BMU 2





160S 512V 250A Master Slave BMS With Relay Breaker 16S BMU 3





--Product Description--



item
value
Place of Origin
China

Hunan
Application
Solar Energy Storage Systems
Brand Name
GCE
Model Number
10
Model Number:
RBMS07S20-250A512V
Product name:
High voltage BMS
Battery Type:
LFP/NMC/LTO
communication:
Rs485/CAN/LAN/dry contact
Voltage:
512V
Current:
-250~250A
Application:
BESS/UPS
module strings:
16S*10pcs
Power
24VDC(18~28V)
Power consumption
≤20W
Communication with monitoring software/EMS
Ethernet
High voltage power module
Support DC start (optional)
Way out
Front
Center Tap
Support(Optional)
Net weight
23kg
Size(W*H*D)mm
4U (440*178*600)



160S 512V 250A Master Slave BMS With Relay Breaker 16S BMU 4

160S 512V 250A Master Slave BMS With Relay Breaker 16S BMU 5

160S 512V 250A Master Slave BMS With Relay Breaker 16S BMU 6

160S 512V 250A Master Slave BMS With Relay Breaker 16S BMU 7

--Products Features--


Multi-string management – for large scale systems of parallel battery strings


• Battery system performance algorithms (SOC, SOHc,SOHr, power available, optimal charging)


• High voltage interlock loop monitoring and control


• Isolation resistance measurement


• Battery usage recorder


• Telematics – data collection





160S 512V 250A Master Slave BMS With Relay Breaker 16S BMU 8



--Certification--



160S 512V 250A Master Slave BMS With Relay Breaker 16S BMU 9





--Packing&Shipping--



160S 512V 250A Master Slave BMS With Relay Breaker 16S BMU 10
