Product Details
Place of Origin: CHINA
Brand Name: GCE
Certification: CE UL TUV
Model Number: RBMS07-S20-125A864V
Payment & Shipping Terms
Minimum Order Quantity: 2
Price: negotiable
Packaging Details: Bubble bag, foam, carton
Delivery Time: 20~25days
Payment Terms: T/T, L/C
Supply Ability: 1000sets/month
Description: |
Overall Solution Battery Management System |
Warranty: |
3 Years |
Design Feature: |
AC, DC Dual Power Supply |
Voltage: |
864V |
Current: |
125A |
Application: |
BESS, UPS, Solar Off Grid ESS, Container ESS |
Communication: |
RS485 CAN LAN(IP/TCP) |
Cell Type Applicable: |
LFP, NCM, LTO |
Events: |
5000 |
Color: |
Silver+black |
Description: |
Overall Solution Battery Management System |
Warranty: |
3 Years |
Design Feature: |
AC, DC Dual Power Supply |
Voltage: |
864V |
Current: |
125A |
Application: |
BESS, UPS, Solar Off Grid ESS, Container ESS |
Communication: |
RS485 CAN LAN(IP/TCP) |
Cell Type Applicable: |
LFP, NCM, LTO |
Events: |
5000 |
Color: |
Silver+black |
GCE BMS 270S 864V 125A lifepo4 NMC LTO battery developed for
UPS ESS Solar BESS HV battery energy storage systems Large scale
ESS Micro Grid ESS Home ESS Container ESS Solar Carport ESS

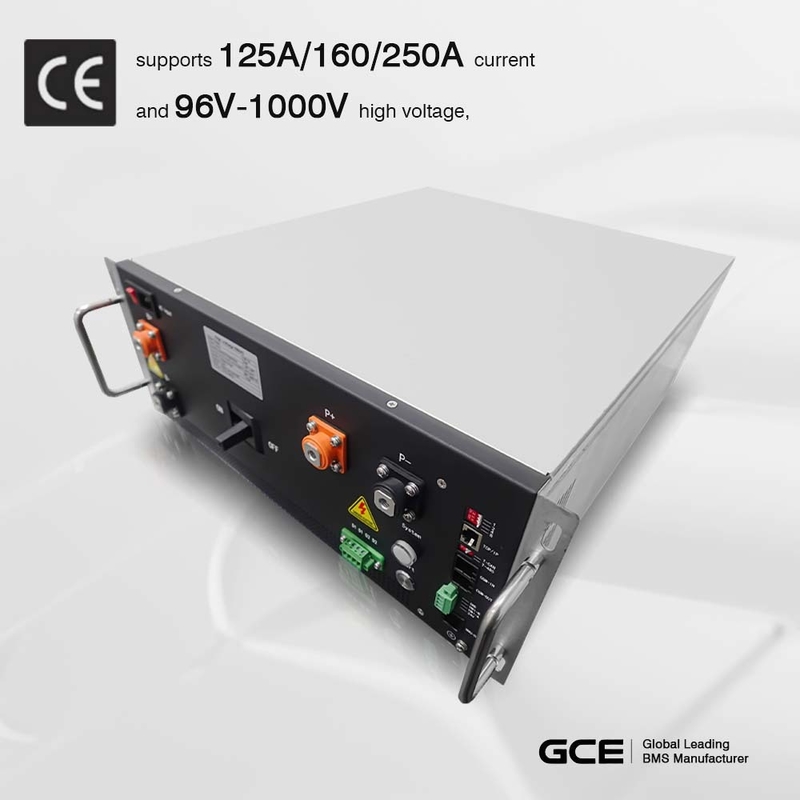

High Voltage Master BMS:
|
One complete set of HV 270S864V 125A BMS solutions includes:
1set Master BMS, Model#: RBMS07-S20-125A864V
18sets 15S Slave BMU Model#: BMU07-15S8T48F
18sets 15S Wire Harness, including voltage&temperature acquisition wires, BMU communication wires, Fan power wire.
|
|
|
A central control model#: SBMS07 will be required for multiple racks parallel connection applications, equipped with a 7" display, the main control enables the communications among different racks. Customers can also make some parameters setting and monitor the battery module status on it easily.
|
|
We mainly have two BMS Categories, both applicable to Lifepo4 batteries, MnNiCo ternary batteries, Lithium Titanate batteries. Integrated BMS (the 30S/96V~75S/240V, Max. 100A), master BMS and Slave BMU all in one design. compact size. Separated BMS(the 60S/192V~270S/864V, Max. 500A), master BMS and Slave BMU separately installed, flexible in assembly.
|
Accessories:
Specification:
| Product Name | BMS(Battery Management System) |
| Model no. | RBMS07-S20-125A864V |
| protecting method | MCCB+Contactor |
| Rated Current range | -250A~250A(Max. 500A) |
| Voltage Range | 96V-1000V |
| Current Sampling Accuracy | 1.0%FSR |
| Communication interface with PCS | RS485/CAN |
| Communication interface with BMU | CAN |
| Communication interface with SBMS | RS485/CAN |
| Communication with monitoring software/EMS | Ethernet |
| Support IAP upgrade | Yes |
| Support HMI display and parameter | No(Optional plugin) |
| Insulation detection | Yes(Optional) |
| High voltage power module | Support DC start (optional) |
| Dry contact output (normally open) | No |
| Maximum qty of BMUs | 20 |
| Power | 24VDC(18~28V) |
| Power consumption | ≤20W |
| Size(W*H*D)mm | 4U (482*180*500) |
| Way out | Front |
| Tap center | Support(Optional) |
| Net weight | 30 kgs |
Linkage for downloading specifications for Master BMS and Slave BMU:
GCE_RBMS specification--EN--V1.0.pdf
GCE 12-16S BMU-specification-UL-V1.0.pdf
Linkage for downloading of BMS demand information collection form:
high voltage BMS info collection form EN2021-04.do...
We mainly have two BMS Categories, both applicable to Lifepo4 batteries, MnNiCo ternary batteries,
Lithium Titanate batteries.
Integrated BMS (the 30S/96V~75S/240V, Max. 100A), master BMS and Slave BMU all in one design. compact size.
Separated BMS(the 60S/192V~270S/864V, Max. 500A), master BMS and Slave BMU separately installed, flexible in
assembly.
BMS SYSTEM STRUCTURE:
Applications:
Production Line:
